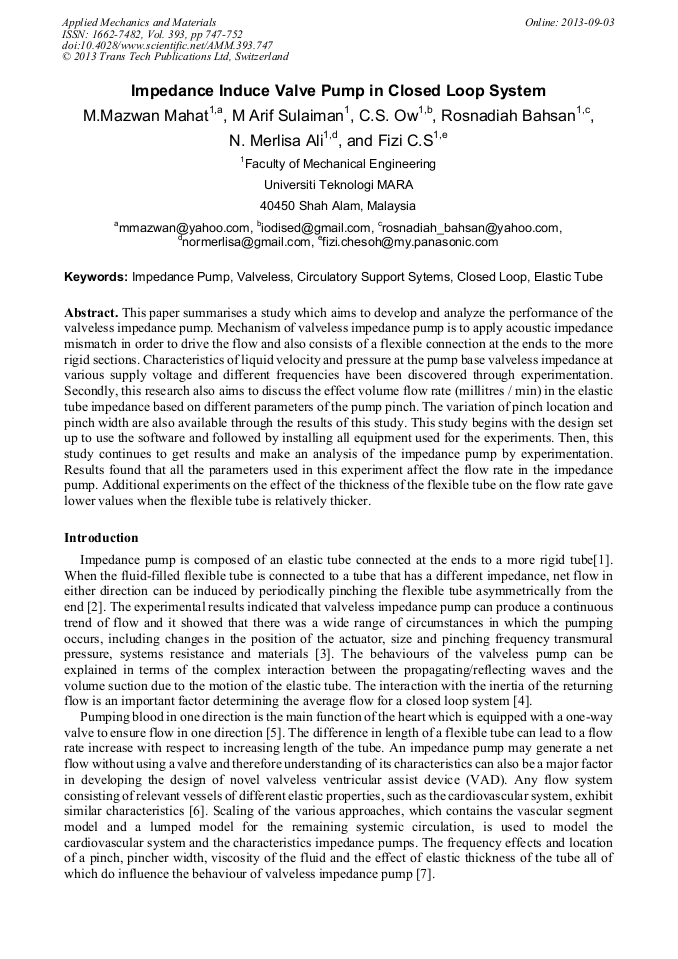

Impedance Induce Valve Pump in Closed Loop System

Abstract:

This paper summarises a study which aims to develop and analyze the performance of the valveless impedance pump. Mechanism of valveless impedance pump is to apply acoustic impedance mismatch in order to drive the flow and also consists of a flexible connection at the ends to the more rigid sections. Characteristics of liquid velocity and pressure at the pump base valveless impedance at various supply voltage and different frequencies have been discovered through experimentation. Secondly, this research also aims to discuss the effect volume flow rate (millitres / min) in the elastic tube impedance based on different parameters of the pump pinch. The variation of pinch location and pinch width are also available through the results of this study. This study begins with the design set up to use the software and followed by installing all equipment used for the experiments. Then, this study continues to get results and make an analysis of the impedance pump by experimentation. Results found that all the parameters used in this experiment affect the flow rate in the impedance pump. Additional experiments on the effect of the thickness of the flexible tube on the flow rate gave lower values when the flexible tube is relatively thicker.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 747-752
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.747
• Online since: September 2013
• Authors: M. Mazwan Mahat, M. Arif Sulaiman, Chee Sheng Ow, Rosnadiah Bahsan, N. Merlisa Ali, C.S. Fizi
• Keywords: Circulatory Support Sytems, Closed Loop, Elastic Tube, Impedance Pump, Valveless

References

[1] E. Schuit. Valveless Impedance Pump Behavior an Experimental Study. 2007; 2.

[2] Hickerson A.I., Rinderknecht D., Gharib M. Experimental Study of the Behavior of a Valveless Impedance Pump. Experiments in Fluids 2005; 38: 534-540.

DOI: 10.1007/s00348-005-0946-z

[3] Hickerson A.I. An Experimental Analysis of the Characteristic Behaviors of an Impedance Pump. California Institute of Technology, Pasadena, California. (2005).

[4] S.J. Shin and H.J. Sung. Three-dimensional simulation of a valveless pump. International Journal of Fluid and Flow. 2010; 31: 942-951.

DOI: 10.1016/j.ijheatfluidflow.2010.05.001

[5] L. Waisman , M. Rosenfeld , S. Einav. Impedance pump as a cardiovascular assist device. Journal of Biomechanics 2006, Vol. 39 (Suppl 1).

DOI: 10.1016/s0021-9290(06)84099-6

[6] Gharib M., Rinderknecht D., Avrahami I. Impedance pump used in bypass grafts. 2007 http: /www. freepatentsonline. com/20070038016. html.

[7] Hickerson A.I., Gharib M. On the resonance of a pliant tube as a mechanism for valveless pumping. Journal of Fluid Mechanics 2006; 555: 141-148.

DOI: 10.1017/s0022112006009220

[8] Ku D.N. Blood Flow in Arteries. Annual Review of Fluid Mechanics, 1997; 29: 399-434.

[9] Rinderknecht D., Hickerson A.I., Gharib M. A Valveless Micro Impedance Pump Driven by Electromagnetic Actuation. Journal of Micromechanical Microengineering 2005; 15: 861-866.

DOI: 10.1088/0960-1317/15/4/026

[10] Wood N.B. Aspects of fluid dynamics applied to larger arteries. Journal of Theoretical Biology (1999).

[11] Forouhar A.S., Liebling M., Hickerson A. The embryonic Vertebrate Heart Tube is a Dynamic Suction Pump. Science 2006; 312: 751-753.

DOI: 10.1126/science.1123775

[12] John Meier. Novel Experimental Study of a Valveless Impedance Pump for Applications at Lab-On-Chip, Microuidic, and Biomedical Device Size Scales. (2011).

[13] Thomas T. Bringley. An experimental investigation and a simple model of a valveless pump.

[14] Gharib M., Iwaniec A., Wolf R.A. Implantable occular pump to reduce intraocular pressure. 2003 http: /www. freepatentsonline. com/20030233143. html.
