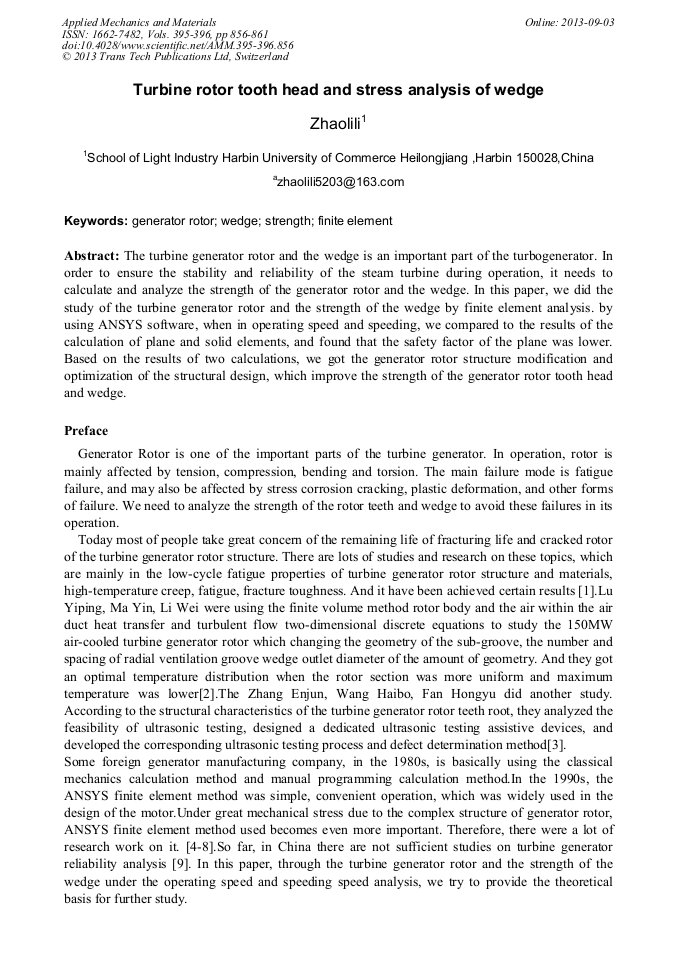

Turbine Rotor Tooth Head and Stress Analysis of Wedge

Abstract:

The turbine generator rotor and the wedge is an important part of the turbogenerator. In order to ensure the stability and reliability of the steam turbine during operation, it needs to calculate and analyze the strength of the generator rotor and the wedge. In this paper, we did the study of the turbine generator rotor and the strength of the wedge by finite element analysis. by using ANSYS software, when in operating speed and speeding, we compared to the results of the calculation of plane and solid elements, and found that the safety factor of the plane was lower. Based on the results of two calculations, we got the generator rotor structure modification and optimization of the structural design, which improve the strength of the generator rotor tooth head and wedge.

• Periodical: Applied Mechanics and Materials (Volumes 395-396)
• Pages: 856-861
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.395-396.856
• Online since: September 2013
• Authors: Li Li Zhao
• Keywords: Finite Element, Generator Rotor, Strength, Wedge

References

[1] Jing Jianping and Xia Songbo. Turbine Technology Vol. 45(2003), p.260.

[2] Lu Yiping, Ma xianhao and Li Weili. Proceedings of the CSEE Vol. 27 ( 2007), p.62.

[3] Zhang Enjun, Wang Haibo and Fan Hongyu. Journal harbin univ. sci. & tech Vol. 8(2003), p.58.

[4] Z. Mazur R.G. Illescas and J.A. Romano. Engineering Failure Analysis Vol. 15( 2008), p.129.

[5] V.N. Shlyannikov B.V. Iltchenko and N.V. Stepanov. Engineering Failure Analysis Vol. 8(2001), p.461.

[6] R.E. Pereza, M.A.A. Lopezb and E.M. Vazquezc. Finite Elements in Analysis and Design Vol. 40(2004), p.485.

[7] Yang Xiaohua, Li Nian and Jin Zhihao. Fatigue Vol. 19(1997), p.687.

[8] Wang Xi. Pressure Vessel Technol Vol. 7(2003), p.85.

[9] Xi changji: Fault instance of Steam Turbine Generator Set and analysis (China Electric Power Press, China 2002).
