Optimal Design of Cylindrical Helical Torsional Spring Including Fatigue Reliability

Abstract:

To get a way of calculating the reliability of fatigue life of torsion spring, the paper discussed the optimal design of fatigue reliability for cylindrical helical torsional spring with Monte-Carlo method, and tried to build a new method to analyze the fatigue reliability of cylindrical helical torsional spring. The new method could test different values of parameters of a spring, and it could calculate the fatigue reliability of the spring in every parameter value with about 100 thousand test points with Monte-Carlo method, which can be set to get a better result, and it gave the comparison and selection to designers finally. The method was run with the software-MATLAB. The paper gave an example at last, and it compared the new methods results with ones of traditional design and discussed the differences.

You might also be interested in these eBooks

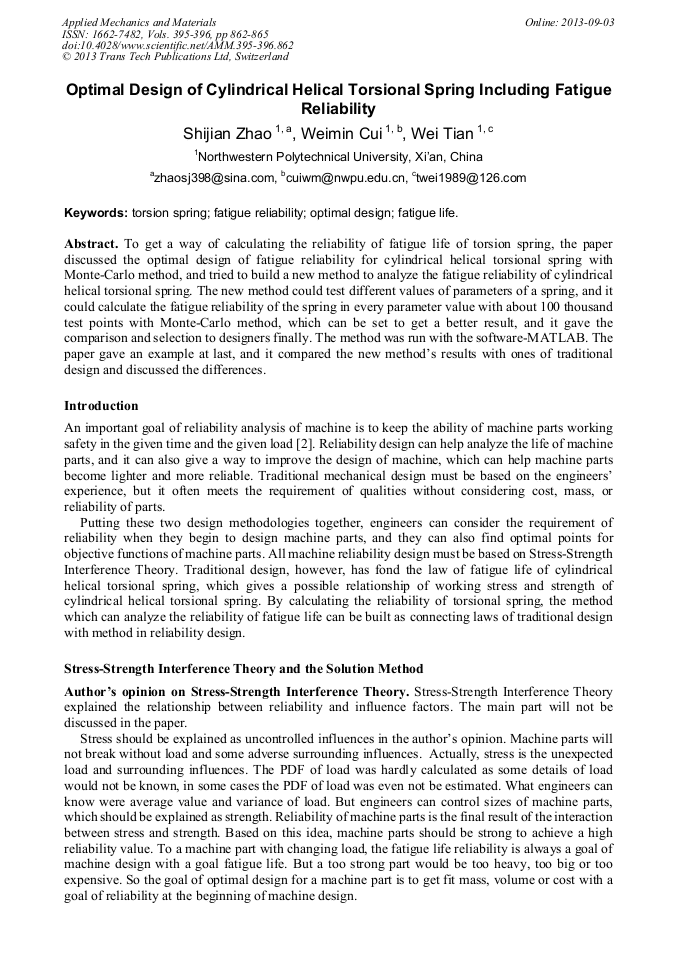

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 395-396)

Pages:

862-865

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.395-396.862

Citation:

Cite this paper

Online since:

September 2013

Authors:

Shi Jian Zhao, Wei Min Cui, Wei Tian

Keywords:

Fatigue Life, Fatigue Reliability, Optimal Design, Torsion Spring

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. H. Zhang, H.H. Liu and D. C. Wang, in: Handbook of Spring, edited by Machine Press, Beijing (2008), in press.

Google Scholar

[2] Y. M. Li, L. Y. Wu and C. X. He, in: Reviewed of mechanical reliability method, Journal of Machine Design. Vol. 21 (2004), pp.1-4.

Google Scholar

[3] Z. Yang and Y. M. Zhang, in: Reliability sensitivity design of non-moral random parameters used spring in car, Vehicle & Power Technology. Vol. 112 (2008), pp.38-44.

Google Scholar

[4] Y. L. Zhang, Y. M. Zhang and Y. J. Jin, in: Reliability analysis of fatigue crack propagation life with arbitrary distribution parameters, Chinese Journal of Applied Mechanics. Vol. 26 (2009), pp.604-607.

Google Scholar

[5] Y. M. Zhang, Q. L. Liu and B. C. Wen, in: Parameter sensitivity analysis of the reliability of the leaf spring, Mechanical Science and Technology. Vol. 25 (2006), pp.616-618.

Google Scholar

[6] H.Y. Li, in: Strength and fatigue life analysis of the cylindrically helical spring based on ANSYS, Machinery Design & Manufacture. Vol. 10 (2010), pp.92-93.

Google Scholar

[7] B. F. Li, P. F. Liu and J. W. Fan, in: A revised solution for Moment-deflection relation of torsion spring, China Mechanical Engineering. Vol. 21(2010), pp.2318-2321.

Google Scholar
