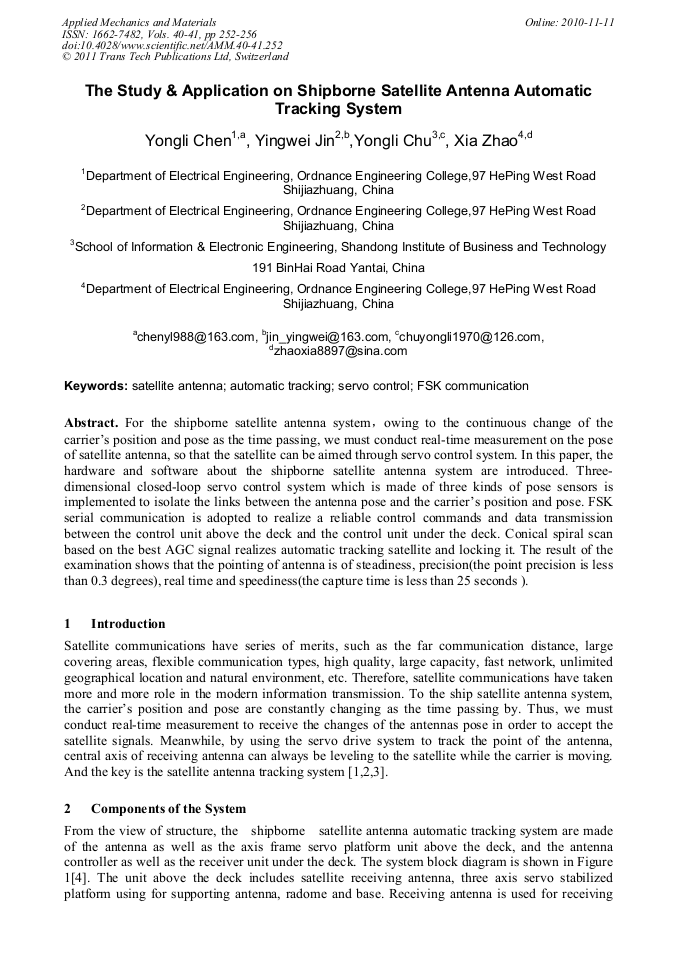

The Study & Application on Shipborne Satellite Antenna Automatic Tracking System

Abstract:

For the shipborne satellite antenna system，owing to the continuous change of the carrier’s position and pose as the time passing, we must conduct real-time measurement on the pose of satellite antenna, so that the satellite can be aimed through servo control system. In this paper, the hardware and software about the shipborne satellite antenna system are introduced. Three-dimensional closed-loop servo control system which is made of three kinds of pose sensors is implemented to isolate the links between the antenna pose and the carrier’s position and pose. FSK serial communication is adopted to realize a reliable control commands and data transmission between the control unit above the deck and the control unit under the deck. Conical spiral scan based on the best AGC signal realizes automatic tracking satellite and locking it. The result of the examination shows that the pointing of antenna is of steadiness, precision(the point precision is less than 0.3 degrees), real time and speediness(the capture time is less than 25 seconds ).

• Periodical: Applied Mechanics and Materials (Volumes 40-41)
• Pages: 252-256
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.40-41.252
• Online since: November 2010
• Authors: Yong Li Chen, Ying Wei Jin, Yong Li Chu, Xia Zhao
• Keywords: Automatic Tracking, FSK Communication, Satellite Antenna, Servo Control

References

[1] Junyong Yang. Study on Control Technique and Realization for Mobile Satellite TV System on Ship. Master's Degree Dissertation of Chongqing University(2003).

[2] Jianming Chen. The Study and Implementation on Technology of Automatic Tracking System of Mobile Satellite Antenna on Ship. Master's Degree Dissertation of Dalian University of Technology(2008).

[3] Lurui Xia. Research of Key Technology on Stabilization Tracking Platform Used on Moving Carrier. Master's Degree Dissertation of National University of Defense Technology(2005).

[4] St. D. llcev. Airborne Satellite Antenna Mount and Tracking Systems. IEEE Africon(2004).

[5] Changyong Li. Study on Satellite Identification Technique for Satellite TV Receiving System on Ship. Master's Degree Dissertation of Ordnance Engineering College(2008).

[6] Yanliang Tan. Spraying Oil Date of Oil Pump by PC104 System. Journal of Hengyang Normal University(2007).

[7] H. Chris Tseng And Dennis W. Teo. Ship-Mounted Satellite Tracking Antenna with Fuzzy Logic Control. IEEE Transactions on Aerospace And Electronic Systems(1998).

DOI: 10.1109/7.670345

[8] Tomihiko Yoshida Kohei Ohata And Masazumi Ueba. Highly Accurate and Cost-effective Auto-tracking Antenna System for Satellite Broadband Communication on Vessels. NTI' Technical Review(2005).

[9] Yingna Guo. A Method of Design for FSK Modem. Modern electronic technology(2006).

[10] Qiangyuan Teng. FSK Modulation and Demodulation by 89C52 Microcontroller. Electronic Technology(2001).

[11] Fujun Cao. Control System Design of Shipborne Automatic Satellite TV Antenna Tracking System Based on C8051F120 Single Chip Processor. Shopping Electronic Technology. Vol. 28 (2008).

[12] Aiguo Ming, Tempei Yamaoka, Takashi Kida And Chisato Kanamori. Accuracy Improvement of Ship Mounted Tracking Antenna for Satellite Communications. Proceedings of the IEEE International Conference on Mechatronics&Automation Niagara Falls. Canada(2005).

DOI: 10.1109/icma.2005.1626753
