Study on Enhancing the Strength and Life of Mining Flat Type Chain Connector Units Based on CAE

Abstract:

ANSYS finite element software was utilized to simulate contact non-linear finite element analysis of chain connector for enhancing the structure strength and working life and productivity and manufacture craftwork of the existed ladder-type chain connector. Static and dynamic experiments were carried on several samples to test the broken positions of the chain connectors. The simulation results show that the main part of stress concentration is in teeth roots; experimental results also show that the teeth roots are the fragile parts in the chain connector. So experimental results conform to the results of simulation, it is reasonable for the simulation of contact non-linear finite element analysis of chain connector by ANSYS software. Then a structure of cambered surface tooth is promoted to enhance the strength and life of teeth parts, and petal-type clamps structure is adopted, that can carry out volume-producing to improve the productivity and processing precision.

You might also be interested in these eBooks

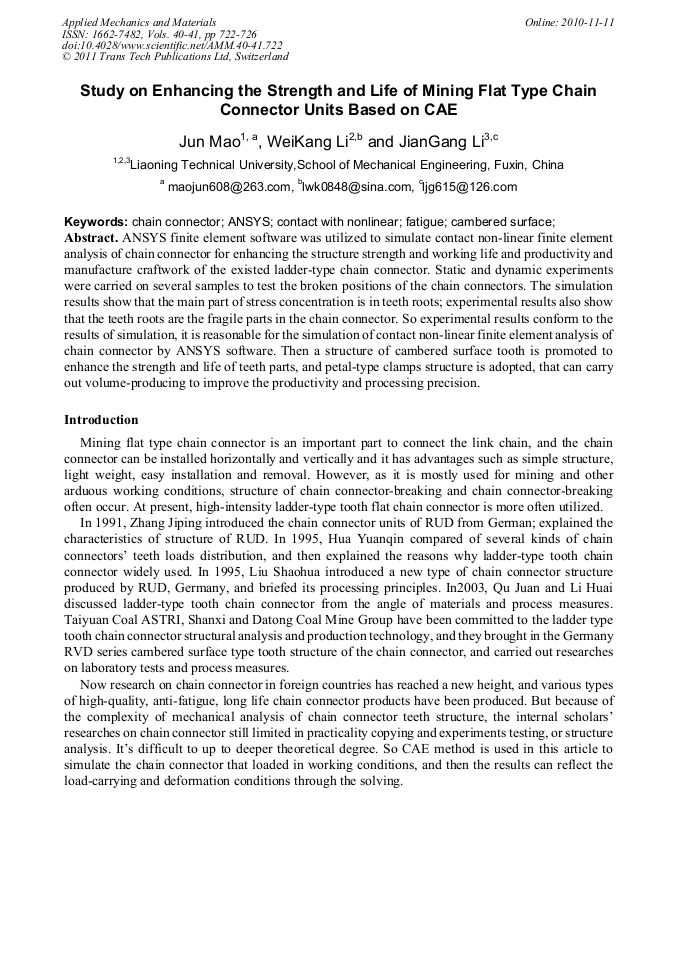

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 40-41)

Pages:

722-726

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.40-41.722

Citation:

Cite this paper

Online since:

November 2010

Authors:

Jun Mao, Wei Kang Li, Jian Gang Li

Keywords:

ANSYS, Cambered Surface, Chain Connector, Fatigue, Nonlinear Contact

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hua Yuan-qin. Structure design and analysis of link chain. Coal Science and Technology. Vol. 23(1995), pp: 47-51.

Google Scholar

[2] Liu Shao-hua. A new type flat link. Coal. Vol. 5(1995), pp: 41-42.

Google Scholar

[3] Qu Juan. Development of new type flat link with arc tooth. Mining and Processing Equipment. Vol. 2(2003), pp: 56-57.

Google Scholar

[4] Li Wei-kang, MA Li, DING Cai-jin. Finite element analysis and static and dynamic state experimental Research into mining flat type connector units. Journal of Liaoning Technical University. (2004).

Google Scholar

[5] Brithsh Coal Corporation. Monitoring and Prdiction of TheLife of Mining Chain Assemblies. Brithsh Coal Corporation. (1985-1988).

Google Scholar
