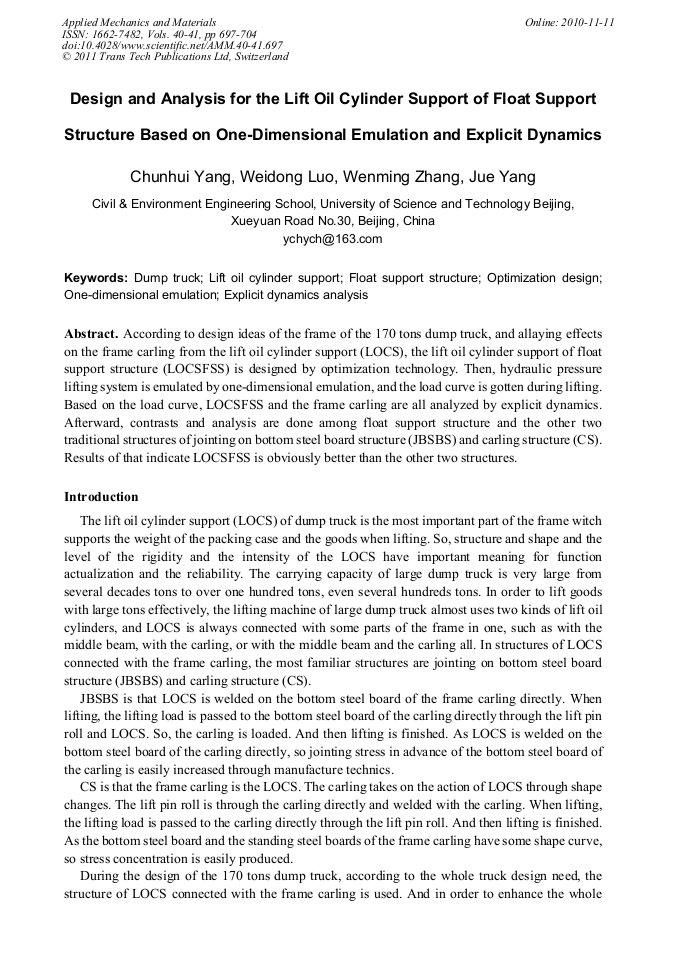

Design and Analysis for the Lift Oil Cylinder Support of Float Support Structure Based on One-Dimensional Emulation and Explicit Dynamics

Abstract:

According to design ideas of the frame of the 170 tons dump truck, and allaying effects on the frame carling from the lift oil cylinder support (LOCS), the lift oil cylinder support of float support structure (LOCSFSS) is designed by optimization technology. Then, hydraulic pressure lifting system is emulated by one-dimensional emulation, and the load curve is gotten during lifting. Based on the load curve, LOCSFSS and the frame carling are all analyzed by explicit dynamics. Afterward, contrasts and analysis are done among float support structure and the other two traditional structures of jointing on bottom steel board structure (JBSBS) and carling structure (CS). Results of that indicate LOCSFSS is obviously better than the other two structures.

• Periodical: Applied Mechanics and Materials (Volumes 40-41)
• Pages: 697-704
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.40-41.697
• Online since: November 2010
• Authors: Chun Hui Yang, Wei Dong Luo, Wen Ming Zhang, Jue Yang
• Keywords: Dump Truck, Explicit Dynamics Analysis, Float Support Structure, Lift Oil Cylinder Support, One-Dimensional Emulation, Optimization Design

References

[1] Jue Yang, Wenming Zhang and Yanhua Shen: Design method in the development of large-scale vehicles based on FEM technique. Journal of University of Science and Technology Beijing, Vol. 30 No. 7 (2008), pp.810-814.

[2] Dawei Liu, Haixia Sun and Zhenguo Dong: Analysis on the Causes of Frame Abnormal Rupture in Semi- trailer. Transactions of the Chinese Society for Agricultural Machinery, Vol. 38 No. 6 (2007), pp.30-33.

[3] Chunhui Yang, Weidong Luo and Wenming Zhang: Topological Optimization Design and Rigidity and Intensity Analysis for the Lift Oil Cylinder Support of Mining Dump Truck. Coal Mine Machinery, Vol. 29 No. 12 (2008), pp.13-15.

[4] Minxun Lu, Mengru Li and Wanli Li: Energy Recycle in New Hydraulic Winch Test-bed. Journal of Tongji University(Natural Science), Vol. 37 No. 7 (2009), pp.964-968.

[5] Xiaojun Zheng, Wei Tao: Motion Simulation and Control Parameters of Hydraulic Excavator Based on AMEsim Software. Hydraulics Pneumatics & Seals, Vol. 29 No. 2 (2009), pp.24-26.

[6] Haili Liu, Huacong Li: Modeling and Simulation Software AMESim and its Application for Hydraulic-mechanic System. Machine Tool & Hydraulics, Vol. 34 No. 6 (2006), pp.124-126.

[7] Dihui Liu, Guangyao Li and Li Hongzhou: Mesh Variables Mapping Algorithm Used in Car Crash Simulation and Its Verification. Journal of Mechanical Engineering, Vol. 45 No. 12 (2009), pp.218-223.

DOI: 10.3901/jme.2009.12.218

[8] Zhiqian He, Changlin Gui and Zhen Li: Calculation of Dynamic Stress and Fatigue Strength of Crankshaft with Bush Deformation Included. Journal of Mechanical Engineering, Vol. 45 No. 11 (2009), pp.91-98.

DOI: 10.3901/jme.2009.11.091

[9] Chunyuan Yuan, Kongkang Zhou and Wu Linqi: Finite Element Method to Analyze Vehicle Air Spring. Journal of Mechanical Engineering, Vol. 45 No. 6 (2009), pp.262-266.

DOI: 10.3901/jme.2009.06.262
