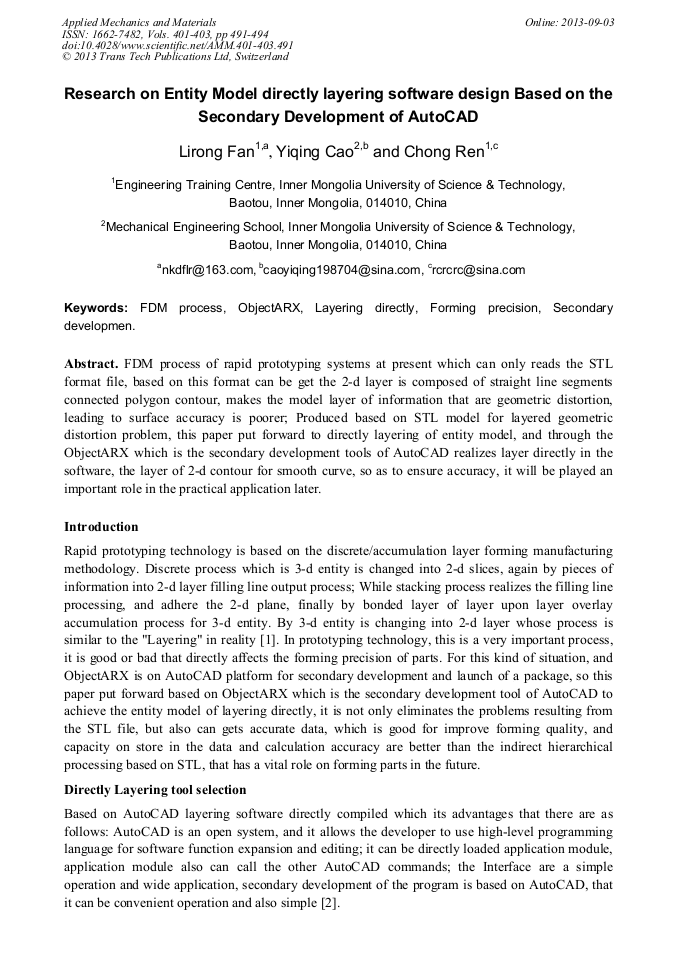

Research on Entity Model Directly Layering Software Design Based on the Secondary Development of AutoCAD

Abstract:

FDM process of rapid prototyping systems at present which can only reads the STL format file, based on this format can be get the 2-d layer is composed of straight line segments connected polygon contour, makes the model layer of information that are geometric distortion, leading to surface accuracy is poorer; Produced based on STL model for layered geometric distortion problem, this paper put forward to directly layering of entity model, and through the ObjectARX which is the secondary development tools of AutoCAD realizes layer directly in the software, the layer of 2-d contour for smooth curve, so as to ensure accuracy, it will be played an important role in the practical application later.

• Periodical: Applied Mechanics and Materials (Volumes 401-403)
• Pages: 491-494
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.401-403.491
• Online since: September 2013
• Authors: Li Rong Fan, Yi Qing Cao, Chong Ren
• Keywords: FDM Process, Forming Precision, Layering Directly, ObjectARX, Secondary Development

References

[1] Guangchun Wang: Rapid prototyping technology and its application(Chemical Industry Press, Beijing, 2006), in Chinese.

[2] Yanxia Liang, Fei Cao: AutoCAD secondary development tool review, Computer Aided Design and Manufacturing, Vol. 7(2001), pp.43-44.

[3] Jia Yang, Guangde Gao, Jianghong Guo: Three-dimension model based on ObjectARX slicing software development, Machinery, Vol. 4(2002), pp.38-39.

[4] Dolene. A, Makela. L: Slicing procedures for layered manufacturing techniques, Computer Aided Design, Vol. 6(1994), pp.119-126.

DOI: 10.1016/0010-4485(94)90032-9

[5] Saborian Emmannel, House Scott A: Adaptive slicing using stepwise uniform refinement, Rapid Prototyping Journal, Vol. 2 (1996), pp.20-26.

DOI: 10.1108/13552549610153370

[6] Xuechun Liang, Deming Song: AutoCAD 2002 secondary development technology guide(Tsinghua University Press, Beijing, 2001), in Chinese.
