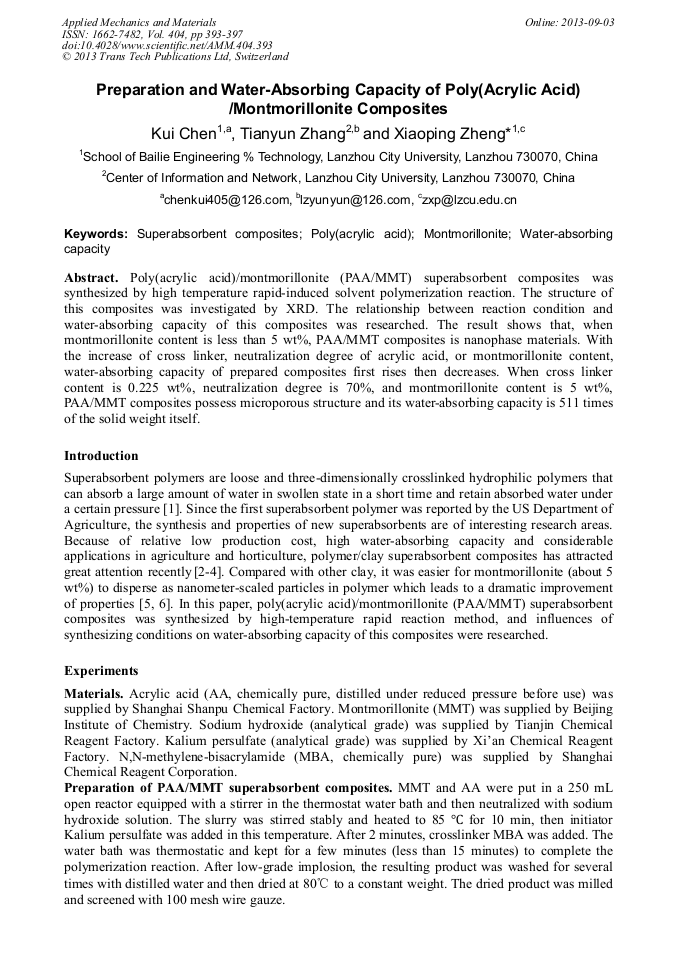

Preparation and Water-Absorbing Capacity of Poly(Acrylic Acid)/Montmorillonite Composites

Abstract:

Poly (acrylic acid)/montmorillonite (PAA/MMT) superabsorbent composites was synthesized by high temperature rapid-induced solvent polymerization reaction. The structure of this composites was investigated by XRD. The relationship between reaction condition and water-absorbing capacity of this composites was researched. The result shows that, when montmorillonite content is less than 5 wt%, PAA/MMT composites is nanophase materials. With the increase of cross linker, neutralization degree of acrylic acid, or montmorillonite content, water-absorbing capacity of prepared composites first rises then decreases. When cross linker content is 0.225 wt%, neutralization degree is 70%, and montmorillonite content is 5 wt%, PAA/MMT composites possess microporous structure and its water-absorbing capacity is 511 times of the solid weight itself.

• Periodical: Applied Mechanics and Materials (Volume 404)
• Pages: 393-397
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.404.393
• Online since: September 2013
• Authors: Kui Chen, Tian Yun Zhang, Xiao Ping Zheng
• Keywords: Montmorillonite, Poly(Acrylic Acid), Superabsorbent Composites, Water-Absorbing Capacity

References

[1] A. Li and A.Q. Wang: Eur. Polym. J. Vol. 41(2005), p.1630.

[2] N.H. Tran, G.R. Dennis, A.S. Milev, G.S. Kannangara, M.A. Wilson and R.N. Lamb: J. Colloid Interface Sci. Vol. (290)2005, p.392.

[3] L.R. Fan, S.Y. Shen, K.S. Xia and Z.L. Xu: J. Mineral. Petrol. Vol. (25)2005, p.88 (in Chinese).

[4] Y.L. Wei, J.H. Wu, Y.F. Huang and J.F. Zhong: Acta Mineralogica Sinica Vol. (25)2005, p.379.

[5] D.M. Chen, J. Chen, X.L. Luan, H.P. Ji and Z.G. Xia: Chem. Eng. J. Vol. (171)2011, p.1150.

[6] P. Kiliaris, C.D. Papaspyrides: Prog. Polym. Sci. Vol. (35)2010, p.902.
