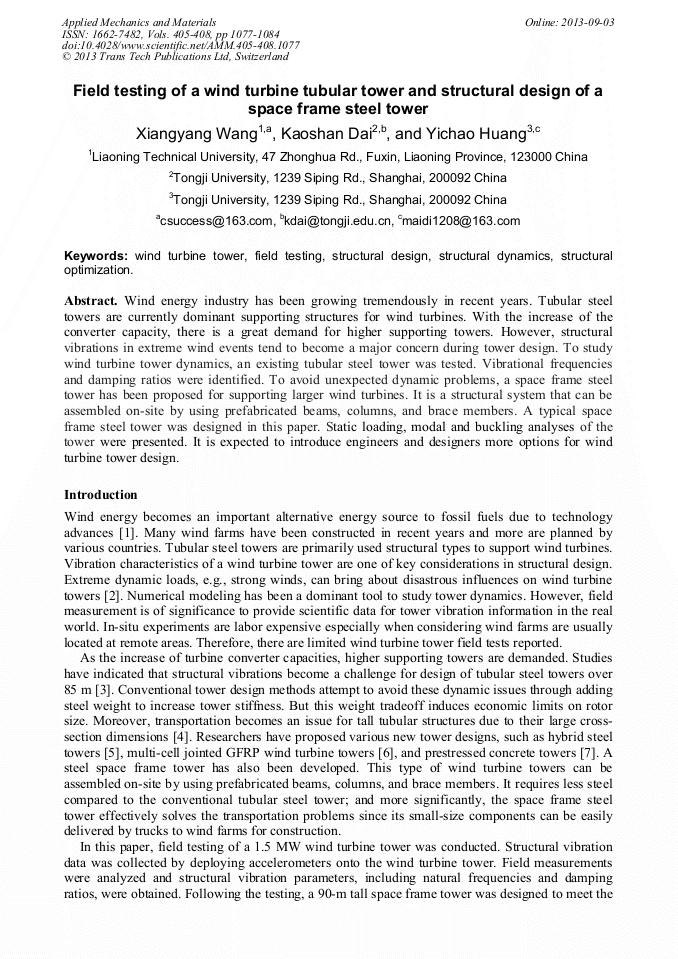

Field Testing of a Wind Turbine Tubular Tower and Structural Design of a Space Frame Steel Tower

Abstract:

Wind energy industry has been growing tremendously in recent years. Tubular steel towers are currently dominant supporting structures for wind turbines. With the increase of the converter capacity, there is a great demand for higher supporting towers. However, structural vibrations in extreme wind events tend to become a major concern during tower design. To study wind turbine tower dynamics, an existing tubular steel tower was tested. Vibrational frequencies and damping ratios were identified. To avoid unexpected dynamic problems, a space frame steel tower has been proposed for supporting larger wind turbines. It is a structural system that can be assembled on-site by using prefabricated beams, columns, and brace members. A typical space frame steel tower was designed in this paper. Static loading, modal and buckling analyses of the tower were presented. It is expected to introduce engineers and designers more options for wind turbine tower design.

• Periodical: Applied Mechanics and Materials (Volumes 405-408)
• Pages: 1077-1084
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.405-408.1077
• Online since: September 2013
• Authors: Xiang Yang Wang, Kao Shan Dai, Yi Chao Huang
• Keywords: Field Testing, Structural Design, Structural Dynamics, Structural Optimization, Wind Turbine Tower

References

[1] P. E. Uys, J. Farkas, K. Jarmai and F. Tonder: Optimisation of a steel tower for a wind turbine structure, Engineering Structures, Volume 29, Issue 7 (2007), pp.1337-1342.

DOI: 10.1016/j.engstruct.2006.08.011

[2] J. S. Chou and W. T. Tu: Failure analysis and risk management of a collapsed large wind turbine tower, Engineering Failure Analysis, Volume 18, Issue 1 (2011), pp.295-313.

DOI: 10.1016/j.engfailanal.2010.09.008

[3] R. Harte and P. A. G Van Zijl Gideon: Structural stability of concrete wind turbines and solar chimney towers exposed to dynamic wind action, Journal of Wind Engineering Industrial Aerodynamics, Volume 95, Issue 9-11 (2007), pp.1079-96.

DOI: 10.1016/j.jweia.2007.01.028

[4] P. W. Magoha: Design, manufacture, transportation, and foundation construction of wind turbine towers, World Renewable Energy Congress VIII (2004), pp.1-5.

[5] R. J. Zhen and R. L. Ma: GA optimization for variable cross section frame wind turbine, Journal of Civil, Architectural & Environmental Engineering, Volume 31, Issue 6 (2009), pp.1-6. (in Chinese).

[6] D. J. Polyzois, I. G. Raftoyiannis and N. Ungkurapinan: Static and dynamic characteristics of multi-cell jointed GFRP wind turbine towers, Composite Structures, Volume 90, Issue 1 (2009), pp.34-42.

DOI: 10.1016/j.compstruct.2009.01.005

[7] J. A. Paredes, A. H. Barbat and S. A. Oller: Compression-tension concrete damage model applied to a wind turbine, Engineering Structures, Volume 33, Issue 12 (2011), pp.3559-3569.

DOI: 10.1016/j.engstruct.2011.07.020

[8] ANSYS: [Release 10. 0 documentation for ANSYS®], Computer Software, ANSYS, Inc (2006).
