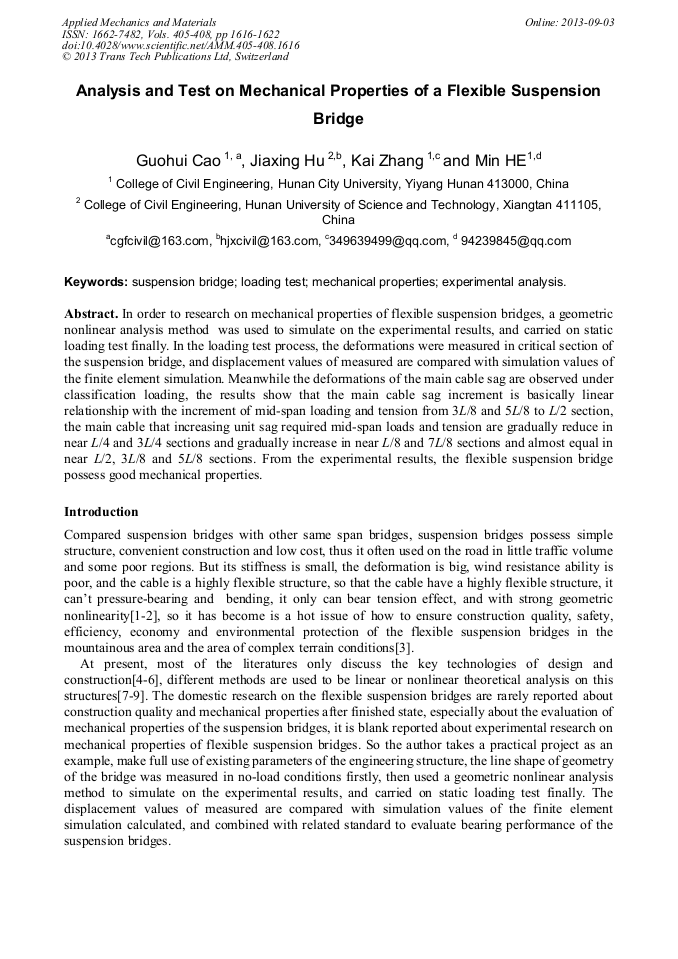

Analysis and Test on Mechanical Properties of a Flexible Suspension Bridge

Abstract:

In order to research on mechanical properties of flexible suspension bridges, a geometric nonlinear analysis method was used to simulate on the experimental results, and carried on static loading test finally. In the loading test process, the deformations were measured in critical section of the suspension bridge, and displacement values of measured are compared with simulation values of the finite element simulation. Meanwhile the deformations of the main cable sag are observed under classification loading, the results show that the main cable sag increment is basically linear relationship with the increment of mid-span loading and tension from 3L/8 and 5L/8 to L/2 section, the main cable that increasing unit sag required mid-span loads and tension are gradually reduce in near L/4 and 3L/4 sections and gradually increase in near L/8 and 7L/8 sections and almost equal in near L/2, 3L/8 and 5L/8 sections. From the experimental results, the flexible suspension bridge possess good mechanical properties.

• Periodical: Applied Mechanics and Materials (Volumes 405-408)
• Pages: 1616-1622
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.405-408.1616
• Online since: September 2013
• Authors: Guo Hui Cao*, Jia Xing Hu, Kai Zhang, Min He
• Keywords: Experimental Analysis, Loading Test, Mechanical Property, Suspension Bridge

References

[1] Hui HUAN. Research and Application on Calculation Methods for Cable Curve of Flexible Suspension Bridge in Mountain Road [J]. Highway Engineering, 2010, 35(4): 94-96. ( In Chinese).

[2] Zhonghua WU, Xiaodun FU, XIANG Zhongfu et al. Discussion on Influencing Factors of Single Span Suspension Bridges[J]. Technology of Highway and Transport, 2005, (3): 100-103. ( In Chinese).

[3] Caiyin LUO, Xinnian ZHOU, FENG Jianxiang. Construction Technique for the Cable Hoisting of Flexible Suspension Bridge[J]. Journal of Fujian College of Forestry, 2010, 30(4): 375-379. ( In Chinese).

[4] Wei QIAN, Peng LIU. Research on Dynamic Characteristic of Flexible Suspension Bridges[J]. Zhejiang Water Concervancy and Hydropower College, 2009, 21(2): 89-92. ( In Chinese).

[5] Ming DONG. Calculation Method about Geometrical Non-linear Characteristic of Flexible Suspension Bridges[J]. Journal of Yunnan Institute of Technology, 1993, 9(1): 23-29. ( In Chinese).

[6] Guofu JI. The Diagram Calculation Method of Flexible Suspension Bridge[J]. Journal of Liaoning Provincial College of Communications, 2006, 8(2): 1-4. ( In Chinese).

[7] Xiang ZHAGN, Shuanhai HE, Jiangshan LI. Static Numerical Analysis of Flexible Suspension Bridges with Double Cable Planes[J]. East China Highway, 1990, (3): 52-57. ( In Chinese).

[8] Burley E, Harvey R C. Behavior of Tension Structures Subjected to Uniformly Distributed Cable Loadings[J]. Paper Presented at International Conference on Tension Roof Structures. Polytechnic of Central London, 1974: 8~10.

[9] Jianmin Tang, Zuyan Shen. A Nonlinear Analysis Method with Sliding Cable Elements for the Cable Structures[J]. Chinese Journal of Computational Mechanics, 1999, 16(2): 143-148. ( In Chinese).
