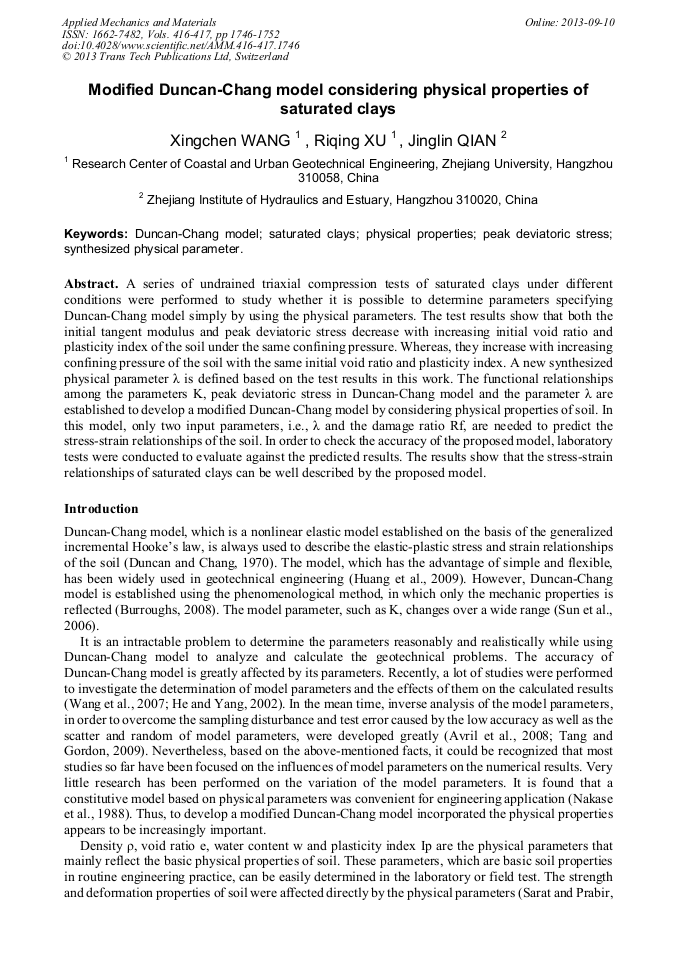

Modified Duncan-Chang Model Considering Physical Properties of Saturated Clays

Abstract:

A series of undrained triaxial compression tests of saturated clays under different conditions were performed to study whether it is possible to determine parameters specifying Duncan-Chang model simply by using the physical parameters. The test results show that both the initial tangent modulus and peak deviatoric stress decrease with increasing initial void ratio and plasticity index of the soil under the same confining pressure. Whereas, they increase with increasing confining pressure of the soil with the same initial void ratio and plasticity index. A new synthesized physical parameter λ is defined based on the test results in this work. The functional relationships among the parameters K, peak deviatoric stress in Duncan-Chang model and the parameter λ are established to develop a modified Duncan-Chang model by considering physical properties of soil. In this model, only two input parameters, i.e., λ and the damage ratio Rf, are needed to predict the stress-strain relationships of the soil. In order to check the accuracy of the proposed model, laboratory tests were conducted to evaluate against the predicted results. The results show that the stress-strain relationships of saturated clays can be well described by the proposed model.

• Periodical: Applied Mechanics and Materials (Volumes 416-417)
• Pages: 1746-1752
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.416-417.1746
• Online since: September 2013
• Authors: Xing Chen Wang, Ri Qing Xu, Jing Lin Qian
• Keywords: Duncan-Chang Model, Peak Deviatoric Stress, Physical Properties, Saturated Clays, Synthesized Physical Parameter

References

[1] Duncan, J. M., Chang, C. Y., 1970. Non-linear analysis of stress and strains in soils. Journal of the Soil Mechanics and Foundation Division, 96(SM5): 1629-1653.

[2] Huang, J., Han, J., Oztoprak, S., 2009. Coupled mechanical and hydraulic modeling of geosynthetic reinforced column supported embankments. Journal of Geotechnical and Geoenvironmental Engineering, 135(8): 1011-1021.

DOI: 10.1061/(asce)gt.1943-5606.0000026

[3] Burroughs, S., 2008. Soil proterty criteria for rammed earth stabiliation. Journal of Materials in Civil Engineering, 20(3): 264-273.

[4] Sun, Y. Z., Shao L. T., Li G. H., 2006. Study on Duncan-Chang model parameters based on digital image processing method. Rock and Soil Mechanics, 27(8): 1335-1343. (in Chinese).

[5] Wang, Z. L., Li, Y. C., Shen, R. F., 2007. Correction of soil parameters in calculation of embankment settlement using a BP network back-analysis model. Engineering Geology, 91(2): 168-177.

DOI: 10.1016/j.enggeo.2007.01.007

[6] He, C. R., Yang, G. F., 2002. Effects of parameters of Duncan-Chang model on calculated results. Chinese Journal of Geotechnical Engineering, 24(2): 170-174. (in Chinese).

[7] Avril, S., Bonnet, M., Bretelle, A. S., 2008. Overview of identification methods of mechanical parameters based on full-field measurements. Experimental Mechanics, 48: 381-402.

DOI: 10.1007/s11340-008-9148-y

[8] Tang, Y. G., Gordon, T. C. K., 2009. Application of nonlinear optimization technique to back analyses of deep excavation. Computers and Geotechnics, 36: 276-290.

DOI: 10.1016/j.compgeo.2008.02.004

[9] Nakase, A., Kamei, T., Kusakabe, O., 1988. Constitutive parameters estimated by plasticity index. Journal of Geotechnical Engineering, 114(7): 844-858.

DOI: 10.1061/(asce)0733-9410(1988)114:7(844)

[10] Sarat, K. D., Prabir, K. B., 2008. Prediction of residual friction angle of clays using artificial neural network . Engineering Geology, 100(3): 142-153.

DOI: 10.1016/j.enggeo.2008.03.001

[11] Toyota, H., Sugimoto, M., Nakamura, K., Sakai, N., 2009. Ring shear tests to evaluate strength parameters in various remoulded soils. Geotechnique, 59(8): 649-659.

DOI: 10.1680/geot.8.029.3671

[12] Wesley, L. D., 2003. Residual strength of clays and correlations using Atterberg limits. Geotechnique, 53(7): 669-672.

DOI: 10.1680/geot.2003.53.7.669

[13] Dolinar, B., 2006. The impact of mineral composition on the compressibility of saturated soils. Mechanics of Materials, 38(7): 599-607.

DOI: 10.1016/j.mechmat.2005.11.003

[14] Tiwari, B., Ajmera, B., 2012. New correlation equations for compression index of remolded clays. Journal of Geotechnical and Geoenvironmental Engineering, 138(6): 757-762.

DOI: 10.1061/(asce)gt.1943-5606.0000639

[15] Janbu, N., 1963. Soil compressibility as determined by oedometer and triaxial tests / European Conference on Soil Mechanics and Foundations Engineering. Wiesbaden: ISSMGE: 19–25.

[16] Ladd, C. C., Foott, R. New Design Procedure for Stability of Soft Clays. Journal of the Geotechnical Engineering Division, 100(7): 763-786.

DOI: 10.1061/ajgeb6.0000066
