Profiled Hole Stamping Progressive Die Design

Xian Hong Gao; Ming Qing Wu

doi:10.4028/www.scientific.net/AMM.416-417.1889

Paper Titles

Turning and Milling Machining Center Spindle Box of Three Dimensional Design
p.1870

Study on the PDC Bit Optimization Design Based on Rotary Steering Drilling
p.1874

Regulation of Bolt Stamping Process
p.1879

Dynamic Analysis of Support System of Permanent Magnet Traction Motors for High-Speed Trains
p.1883

Profiled Hole Stamping Progressive Die Design
p.1889

Application of Key Technologies of Expansion Pipe in Oil and Gas Well Project
p.1895

Study on the Construction of Database of Mineral Resources and Reserve Space
p.1899

Study on Comprehensive Measures of Long-Term Stable Dense Oil Reservoir
p.1904

Cenozoic Tectonic Evolution and Controlling Factor on Hydrocarbon Accumulation in the Southern East China Sea Shelf Basin
p.1908

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 416-417Profiled Hole Stamping Progressive Die Design

Profiled Hole Stamping Progressive Die Design

Abstract:

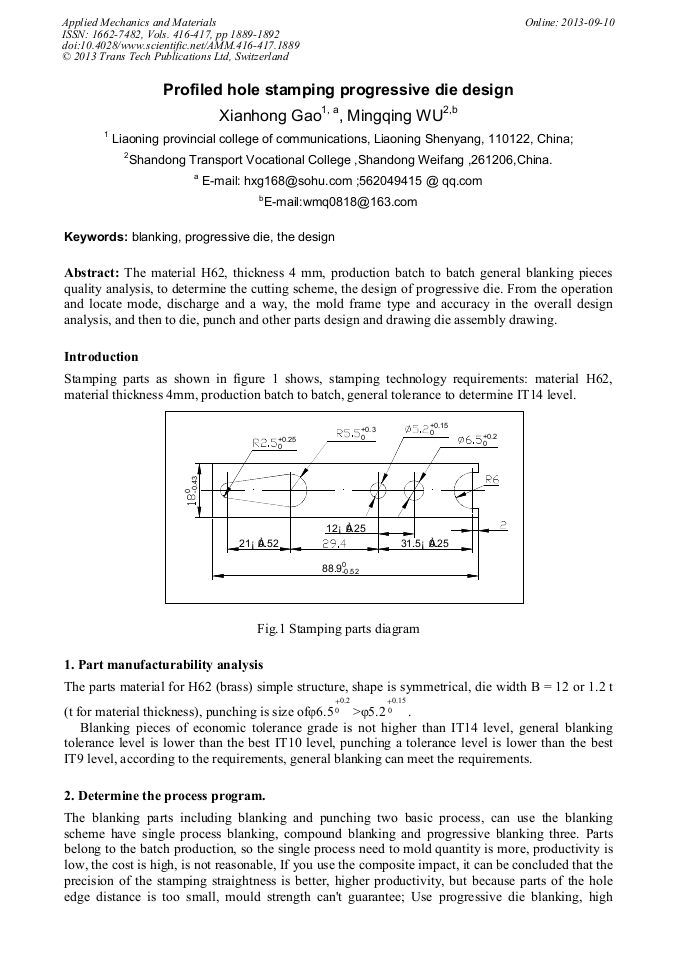

The material H62, thickness 4 mm, production batch to batch general blanking pieces quality analysis, to determine the cutting scheme, the design of progressive die. From the operation and locate mode, discharge and a way, the mold frame type and accuracy in the overall design analysis, and then to die, punch and other parts design and drawing die assembly drawing.
