Experimental Research on Spiral Macrobend Loss of Multimode Fibers

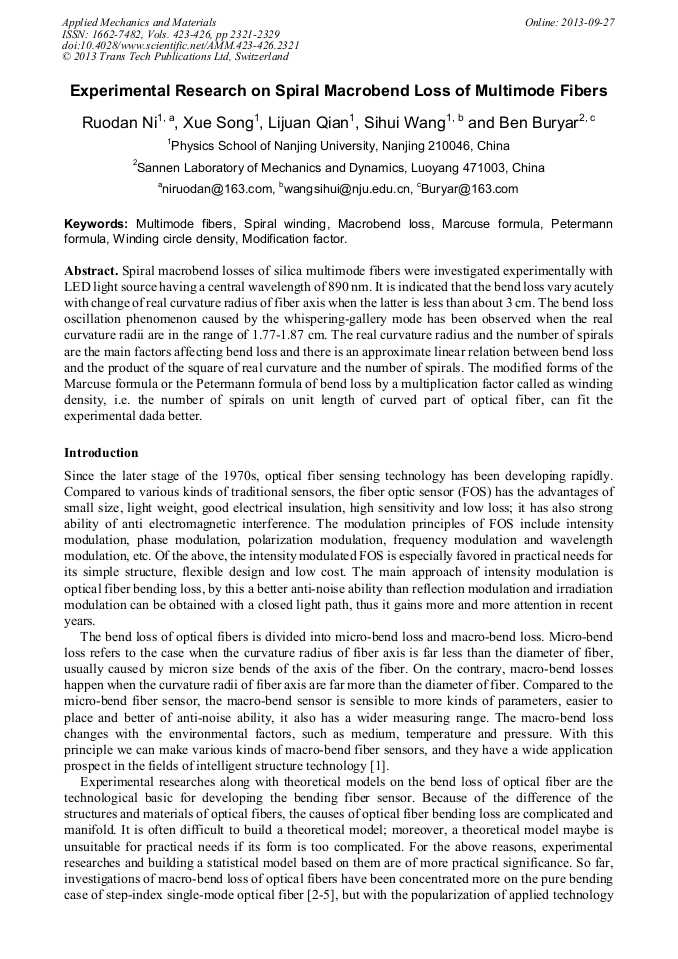

Article Preview

Abstract:

Spiral macrobend losses of silica multimode fibers were investigated experimentally with LED light source having a central wavelength of 890 nm. It is indicated that the bend loss vary acutely with change of real curvature radius of fiber axis when the latter is less than about 3 cm. The bend loss oscillation phenomenon caused by the whispering-gallery mode has been observed when the real curvature radii are in the range of 1.77-1.87 cm. The real curvature radius and the number of spirals are the main factors affecting bend loss and there is an approximate linear relation between bend loss and the product of the square of real curvature and the number of spirals. The modified forms of the Marcuse formula or the Petermann formula of bend loss by a multiplication factor called as winding circle density, i.e. the number of spirals on unit length of curved part of optical fiber, can fit the experimental data better.

You might also be interested in these eBooks
Applied Materials and Technologies for Modern Manufacturing View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 423-426)

Pages:

2321-2329

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.423-426.2321

Citation:

Cite this paper

Online since:

September 2013

Authors:

Ruo Dan Ni, Xue Song, Li Juan Qian, Si Hui Wang, Ben Buryar*

Keywords:

Macrobend Loss, Marcuse Formula, Modification Factor, Multimode Fibers, Petermann Formula, Spiral Winding, Winding Circle Density

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] PENG Xing-ling, ZHANG Hua, LI Yu-long, Optical Communication Technology (in Chinese), Vol. 36(2012), NO. 11: 42-45.

Google Scholar

[2] Marcuse D. J. Opt. Soc. Am, Vol. 66(1976), NO. 3: 216-220.

Google Scholar

[3] Hagen Renner, Journal of Lightwave Technology, Vol. 10(1992). NO. 5: 544-551.

Google Scholar

[4] Luca Faustini and Giuseppe Martini, Journal of Lightwave Technology, Vol. 15(1997), NO. 4: 671-679.

Google Scholar

[5] Qian Wang, Gerald Farrell and Thomas Freir, Optics Express, Vol. 13(2005), NO. 12: 4476-4484.

Google Scholar

[6] ZHAO Zhe-ming, SUI Cheng-hua, Optical Instruments (in Chinese), Vol. 27(2005), No. 5: 29-32.

Google Scholar

[7] Jun-Ichi Sakai, IEEE Journal of Quantum Electronics, Vol. QE-16(1980), NO. 1: 36-44.

Google Scholar

[8] Ross T. Schermer and James H. Cole, IEEE Journal of Quantum Electronics, Vol. 43(2007), NO. 10: 899-909.

Google Scholar
