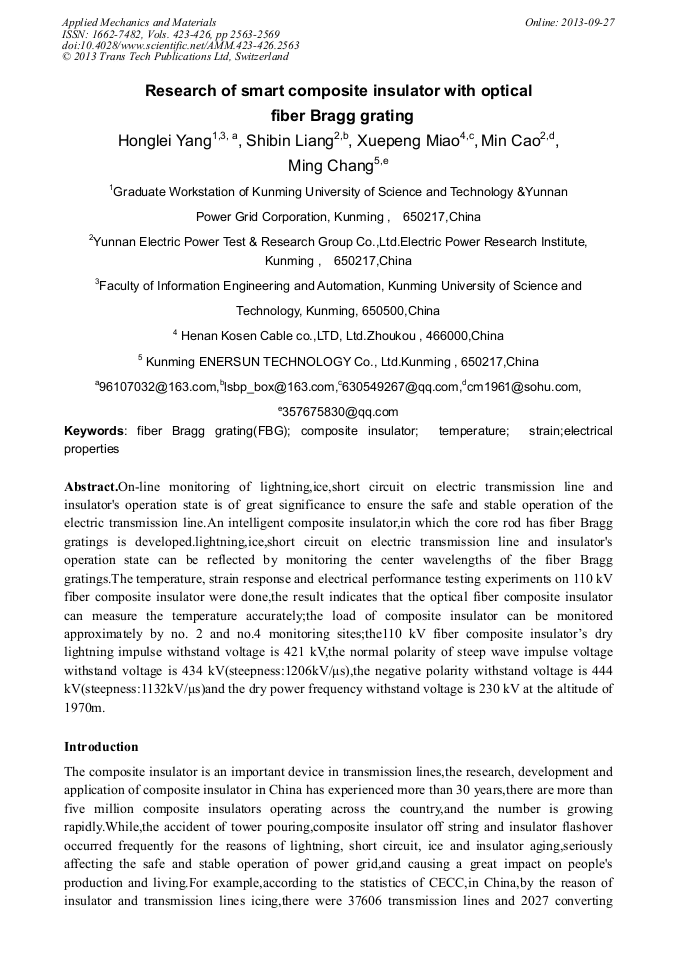

Research of Smart Composite Insulator with Optical Fiber Bragg Grating

Abstract:

On-line monitoring of lightning,ice,short circuit on electric transmission line and insulator's operation state is of great significance to ensure the safe and stable operation of the electric transmission line.An intelligent composite insulator,in which the core rod has fiber Bragg gratings is developed.lightning,ice,short circuit on electric transmission line and insulator's operation state can be reflected by monitoring the center wavelengths of the fiber Bragg gratings.The temperature, strain response and electrical performance testing experiments on 110 kV fiber composite insulator were done,the result indicates that the optical fiber composite insulator can measure the temperature accurately;the load of composite insulator can be monitored approximately by no. 2 and no.4 monitoring sites;the110 kV fiber composite insulator’s dry lightning impulse withstand voltage is 421 kV,the normal polarity of steep wave impulse voltage withstand voltage is 434 kV(steepness:1206kV/μs),the negative polarity withstand voltage is 444 kV(steepness:1132kV/μs)and the dry power frequency withstand voltage is 230 kV at the altitude of 1970m.

• Periodical: Applied Mechanics and Materials (Volumes 423-426)
• Pages: 2563-2569
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.423-426.2563
• Online since: September 2013
• Authors: Hong Lei Yang*, Shi Bin Liang, Xue Peng Miao, Min Cao, Ming Chang
• Keywords: Composite Insulator, Electrical Properties, Fiber Bragg Grating (FBG), Strain, Temperature

References

[1] Shenglin Liu, Ling Ren, Xiaolin Wang. 110kV Composite insulator with fiber Bragg grating Embedded in, China, CN101986398A[P], 2013-03-16.

[2] DL/T864-2004. Use guide line with composite insulator[S]. (2004).

[3] LIn G C, Wang L, Yang C C et al. Thermal Performance of Metal-Clad Fiber Bragg Grating Sensors, IEEE Photonics Technology Letters, 1998, 10(3): 406~408.

DOI: 10.1109/68.661425

[4] Measures R M. Structural Monitoring with Fiber Optical Technology, Academic Press, California, USA, (2001).

[5] Grattan K T V, Sun T. 2000. Fiber optic sensor technology: an overview, sensor and actuators. Applied physical, 82(1): 40~61.

DOI: 10.1016/s0924-4247(99)00368-4

[6] Othonos A, Kalli K. 1999. Fiber bragg gratings. Artech House, Inc, MA, USA.

[7] Hill K O, Meltz G. 1997. Fiber bragg grating technology fundamentals and overview. Journal of lightwave technology, 15(8): 1263~1276.

DOI: 10.1109/50.618320

[8] Liu Y, Zhang L, Bennion I. 1999, Fiber optic load sensors with high transverse strain sensitivity based on long-period gratings in B/Ge codopped fibre. Electronics letters, 35(8): 661~663.

DOI: 10.1049/el:19990457

[9] Koo K P, Lebance M, Tsai T E, et al. 1998. Fiber-chirped grating fabry-perot sensor with multiple-wave-length-addressable free-spectral ranges, IEEE photonics technology letters, 10: 1006~1008.

DOI: 10.1109/68.681299

[10] GB/T19519-2004. Nominal voltage is higher than 1000 V ac overhead line with composite insulator-Definition, test methods and acceptance criteria[S]. (2004).

DOI: 10.3403/30111297
