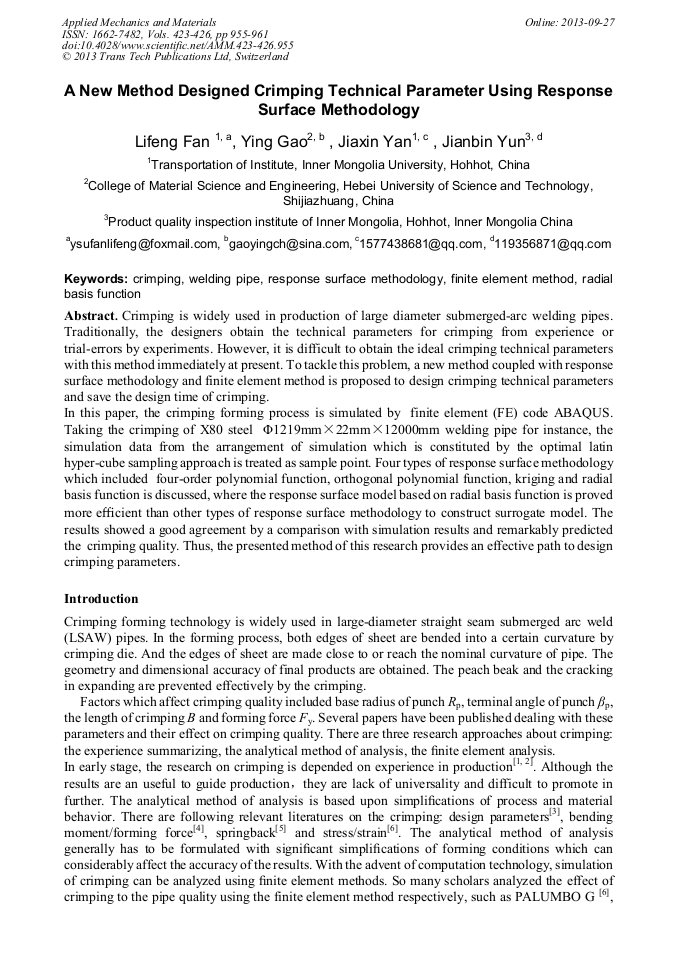

A New Method Designed Crimping Technical Parameter Using Response Surface Methodology

Abstract:

Crimping is widely used in production of large diameter submerged-arc welding pipes. Traditionally, the designers obtain the technical parameters for crimping from experience or trial-errors by experiments. However, it is difficult to obtain the ideal crimping technical parameters with this method immediately at present. To tackle this problem, a new method coupled with response surface methodology and finite element method is proposed to design crimping technical parameters and save the design time of crimping. In this paper, the crimping forming process is simulated by finite element (FE) code ABAQUS. Taking the crimping of X80 steel Φ1219mm×22mm×12000mm welding pipe for instance, the simulation data from the arrangement of simulation which is constituted by the optimal latin hyper-cube sampling approach is treated as sample point. Four types of response surface methodology which included four-order polynomial function, orthogonal polynomial function, kriging and radial basis function is discussed, where the response surface model based on radial basis function is proved more efficient than other types of response surface methodology to construct surrogate model. The results showed a good agreement by a comparison with simulation results and remarkably predicted the crimping quality. Thus, the presented method of this research provides an effective path to design crimping parameters.

• Periodical: Applied Mechanics and Materials (Volumes 423-426)
• Pages: 955-961
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.423-426.955
• Online since: September 2013
• Authors: Li Feng Fan*, Ying Gao, Jia Xin Yan, Jian Bin Yun
• Keywords: Crimping, Finite Element Method (FEM), Radial Basis Function (RBF), Response Surface Methodology (RSM), Welding Pipe

References

[1] Hong Li. Prebending process of longitudinal submerged arc welding production line [J]. Welding Pipe and Tube, 2006, 29(1): 55-57(In Chinese).

[2] Zhimin 3Xie, Jinming Xia. Prebending process parameter design of longitudinal submerged arc welding pipe [J]. Welding Pipe and Tube, 2007, 30(3): 52-54(In Chinese).

[3] Shiyan Zhao. Study on quality control strategy and simulation system development of UOE pipe forming[D], Yanshan university 2010(In Chinese).

[4] Qiang Yang. Springback analytic and process parameters optimization of plate edge preflex for the forming of large diameter longitudinal seam welded pipe[D], Yanshan university 2012(In Chinese).

[5] Lifeng Fan, Ying Gao, Qiang Li, Hongshen Xu, Quality Control on Crimping of Large Diameter Welding Pipe. Chinese Jounal of Mechanical Engineering [J]. 2012, 25(6): 1264-1273.

DOI: 10.3901/cjme.2012.06.1264

[6] G. Palumbo, L Tricarico. Effect of forming and calibration operations on the final shape of large diameter welded tubes. Journal of Materials Processing Technology, 2005, 164~165(5): 1089-1098.

DOI: 10.1016/j.jmatprotec.2005.02.150

[7] Jinglei Liu, Kcjian Huang, Feng Ruan. Effects of the parameters of prebending on O-forming of pipe in UOE process [J]. Journal of Plasticity Engineering, 2005, 12(3): 72-75(In Chinese).

[8] M. D. Herynk, S. Kyriakider, A Onoufriou, et al. Effects of the UOE/UOC pipe manufacturing processes on pipe collapse pressure. International Journal of Mechanical Sciences, 2007, 49(5): 533-553.

DOI: 10.1016/j.ijmecsci.2006.10.001

[9] Xiaogang Tong. Study on groove shape and the open angle of end tab of UOE pipe [D], 2008(In Chinese).

[10] Ying Gao, Qiang Li, Lifeng Fan. Finite element analysis of JCO forming process for longitudinal seam submerged arc welded pipes[J]. Journal of Modelling, Identification and Control, 2010, 11(3/4): 2.

DOI: 10.1504/ijmic.2010.037036

[11] Qiang Ren, Dayong LI, Tianxia Zhou, et al. The simulation of UOE pipe forming by three-dimensional finite element method[J]. Journal of Netshape Forming Engineering, 2011, 3(6): 80-84(In Chinese).
