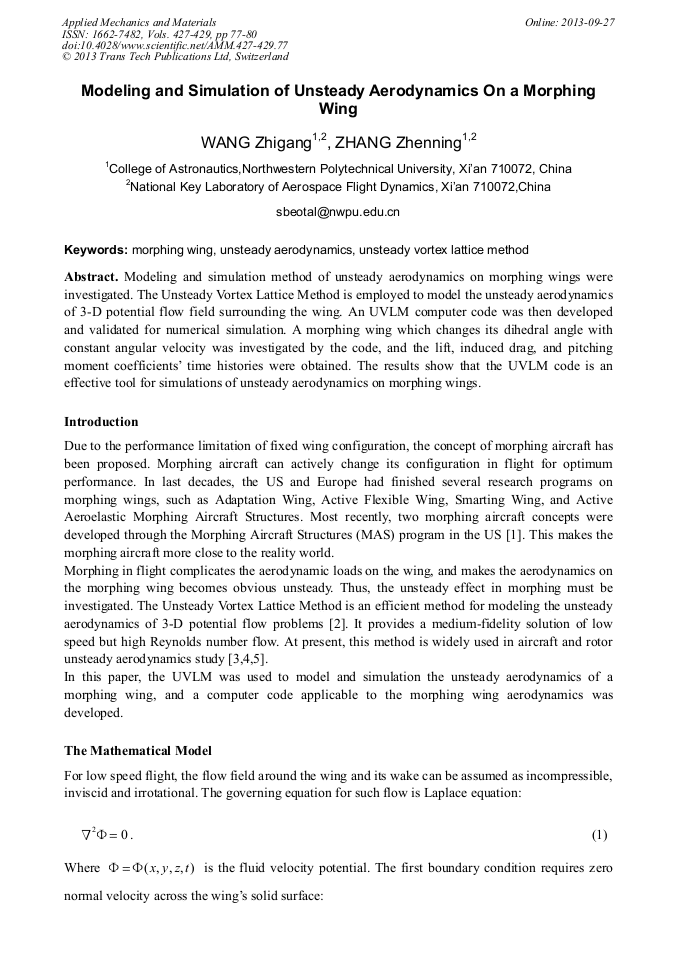

Modeling and Simulation of Unsteady Aerodynamics on a Morphing Wing

Abstract:

Modeling and simulation method of unsteady aerodynamics on morphing wings were investigated. The Unsteady Vortex Lattice Method is employed to model the unsteady aerodynamics of 3-D potential flow field surrounding the wing. An UVLM computer code was then developed and validated for numerical simulation. A morphing wing which changes its dihedral angle with constant angular velocity was investigated by the code, and the lift, induced drag, and pitching moment coefficients time histories were obtained. The results show that the UVLM code is an effective tool for simulations of unsteady aerodynamics on morphing wings.

• Periodical: Applied Mechanics and Materials (Volumes 427-429)
• Pages: 77-80
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.427-429.77
• Online since: September 2013
• Authors: Zhi Gang Wang*, Zhen Ning Zhang
• Keywords: Morphing Wing, Unsteady Aerodynamics, Unsteady Vortex Lattice Method

References

[1] T. Weisshaar: Morphing Aircraft Systems: Historical Perspectives and Future Challenges. Journal of Aircraft, AIAA Early Edition.

[2] J. Katz and A. Plotkin: Low Speed Aerodynamics, 2nd Edition. Cambridge University Press, New York (2001).

[3] T. Fritz and L. Long: Object-Oriented Unsteady Vortex Lattice Method for Flapping Flight. Journal of Aircraft Vol. 41(2004), p.1275.

DOI: 10.2514/1.7357

[4] Enrique. Bueso: Unsteady Aerodynamic Vortex Lattice of Moving Aircraft. KTH, Stockholm, Sweden (2011).

[5] Y. Crispin: Unsteady Rotor Aerodynamics Using a Vortex Panel Method. AIAA-82-1348, San Diego, California(1982).

DOI: 10.2514/6.1982-1348
