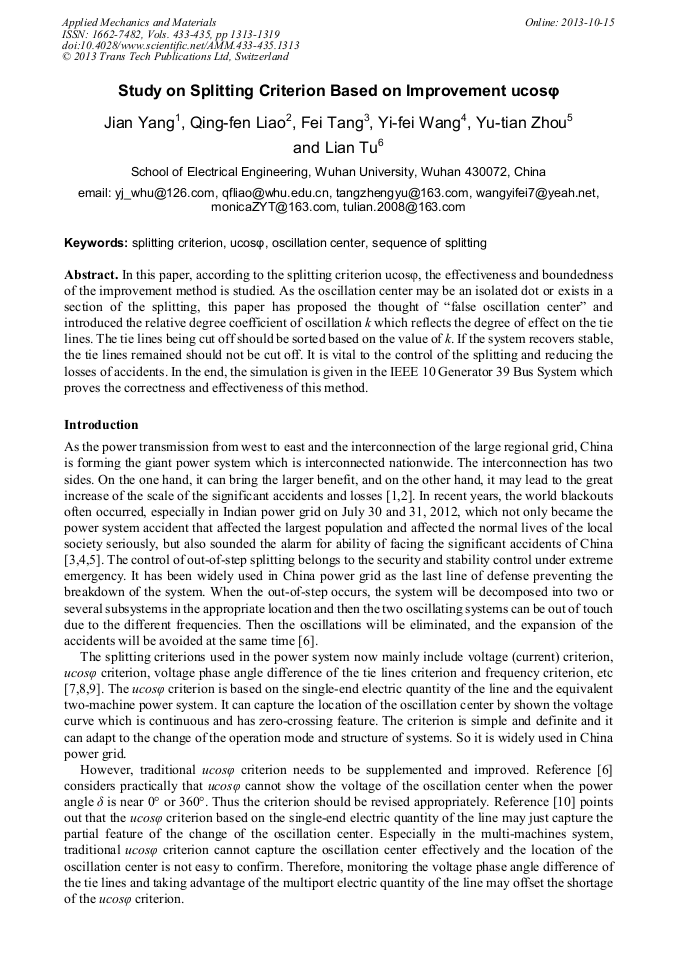

Study on Splitting Criterion Based on Improvement ucosφ

Abstract:

In this paper, according to the splitting criterion ucosφ, the effectiveness and boundedness of the improvement method is studied. As the oscillation center may be an isolated dot or exists in a section of the splitting, this paper has proposed the thought of false oscillation center and introduced the relative degree coefficient of oscillation k which reflects the degree of effect on the tie lines. The tie lines being cut off should be sorted based on the value of k. If the system recovers stable, the tie lines remained should not be cut off. It is vital to the control of the splitting and reducing the losses of accidents. In the end, the simulation is given in the IEEE 10 Generator 39 Bus System which proves the correctness and effectiveness of this method.

• Periodical: Applied Mechanics and Materials (Volumes 433-435)
• Pages: 1313-1319
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.433-435.1313
• Online since: October 2013
• Authors: Jian Yang*, Qing Fen Liao, Fei Tang, Yi Fei Wang, Yu Tian Zhou, Lian Tu
• Keywords: Oscillation Center, Sequence of Splitting, Splitting Criterion, Ucosφ

References

[1] Peng Gao et al. Implementation Scheme and Simulation on Capturing the Out-of-step Interface. Automation of Electric Power Systems, 2005; 29(12): 38-43.

[2] Zhenxiang Han, Yijia Cao. Power System Security and Its Prevention. Power System Technology, 2004; 28(9): 1-6.

[3] Amew. Power system operation corporation limited. New Delhi: National Load Despatch Centre, 2012-07-30T11: 50.

[4] Amew. Power system operation corporation limited. New Delhi: National Load Despatch Centre, 2012-07-31T18: 30.

[5] Yong Tang, Guangquan Bu, Jun Yi. Analysis and Lessons of the Blackout in Indian Power Grid on July 30 and 31, 2012. Proceedings of the CSEE, 2012; 32(25): 167-174.

[6] Hua Deng, Peng Gao, Jianquan Wang. Oscillation Center Voltage of Oscillation-angle and the Characteristics of ucosφ. Proceedings of the EPSA, 2007; 19(1): 68-73.

[7] Jixiu Yuan. Power System Stability. Beijing: Electric Power Press; (1996).

[8] Yuhua Peng. Wavelet Transform and Engineering Application. Beijing: Science Press; (1999).

[9] Peng Gao, Jianquan Wang, Wenping Zhou. Improvement of the Apparent Impedance Angle Splitting Criterion. Automation of Electric Power Systems, 2004; 28(24): 36-41.

[10] Li Li. Studies on Out-of-Step Splitting Criterion and Control Scheme Based on Wide Area Measurements. PhD dissertation. Shandong University; (2009).

[11] Peng Gao, Jianquan Wang, Wenping Zhou et al. A study on Oscillation Center. Proceedings of the EPSA, 2005; 17(2): 48-53.

[12] Baohui Zhang, Yigang Zhang, Haitao Liu. Study on Principle of Power System Splitting Device Based on Local Electrical Parameter. Proceedings of the CSEE, 2001; 21(12): 67-72.

[13] Xiaopeng Lei. The Research and Analysis on Out-of-Step Splitting of Large-scale Interconnected Power System. MS thesis. Xi'an University of Technology; (2008).

[14] Hongliang Zong, Zuyi Ren, Yuping Zheng et al. An Out-of-Step Splitting Device Based on The Changing Track of The Voltage of Oscillation Center. Automation of Electric Power Systems, 2005; 27(19): 83-85.

[15] Chengjun Xia, Liangsong Zhou, Bo Peng et al. Research on system oscillation center movement. Relay, 2002; 30(3): 1-7.
