Study on Torque Characteristic of Novel External Rotor DSPM Generator

Abstract:

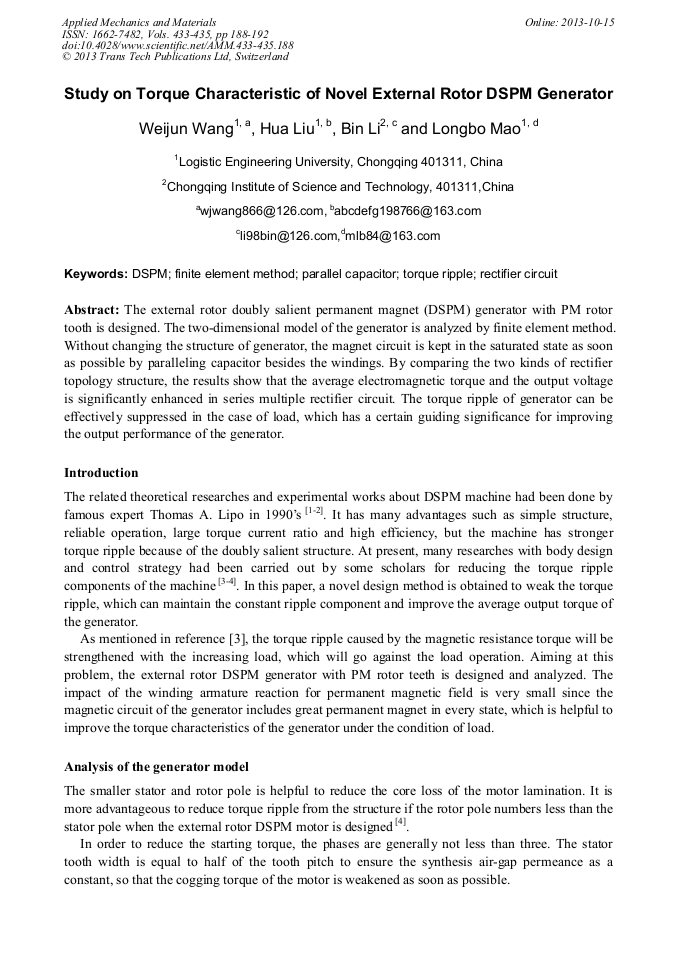

The external rotor doubly salient permanent magnet (DSPM) generator with PM rotor tooth is designed. The two-dimensional model of the generator is analyzed by finite element method. Without changing the structure of generator, the magnet circuit is kept in the saturated state as soon as possible by paralleling capacitor besides the windings. By comparing the two kinds of rectifier topology structure, the results show that the average electromagnetic torque and the output voltage is significantly enhanced in series multiple rectifier circuit. The torque ripple of generator can be effectively suppressed in the case of load, which has a certain guiding significance for improving the output performance of the generator.
