Development of Pneumatic Press Stroke Control through the Application of a Horizontal Cylinder

Abstract:

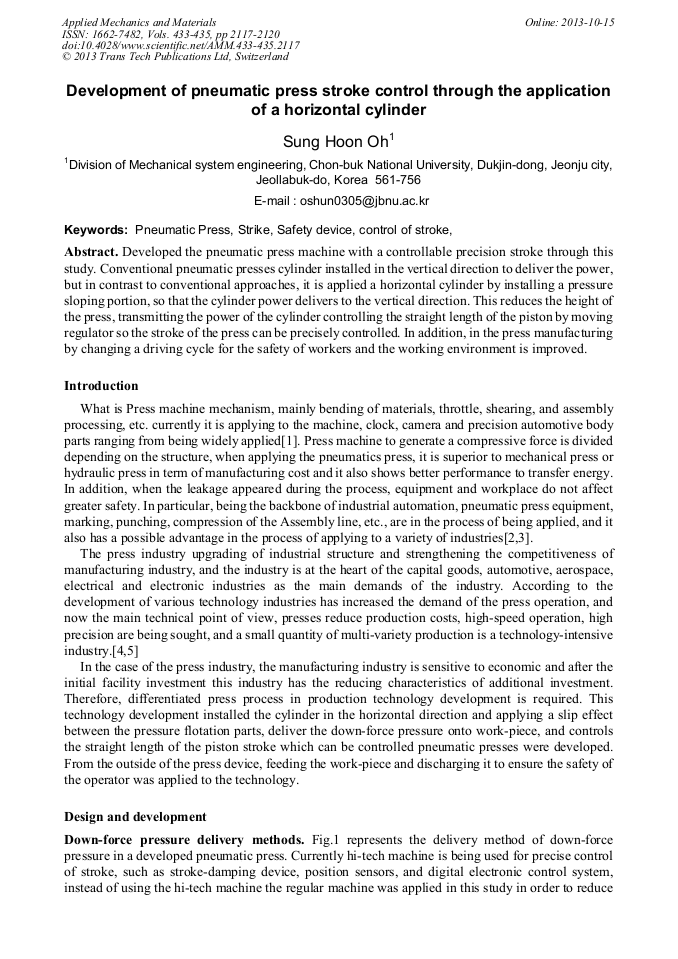

Developed the pneumatic press machine with a controllable precision stroke through this study. Conventional pneumatic presses cylinder installed in the vertical direction to deliver the power, but in contrast to conventional approaches, it is applied a horizontal cylinder by installing a pressure sloping portion, so that the cylinder power delivers to the vertical direction. This reduces the height of the press, transmitting the power of the cylinder controlling the straight length of the piston by moving regulator so the stroke of the press can be precisely controlled. In addition, in the press manufacturing by changing a driving cycle for the safety of workers and the working environment is improved.
