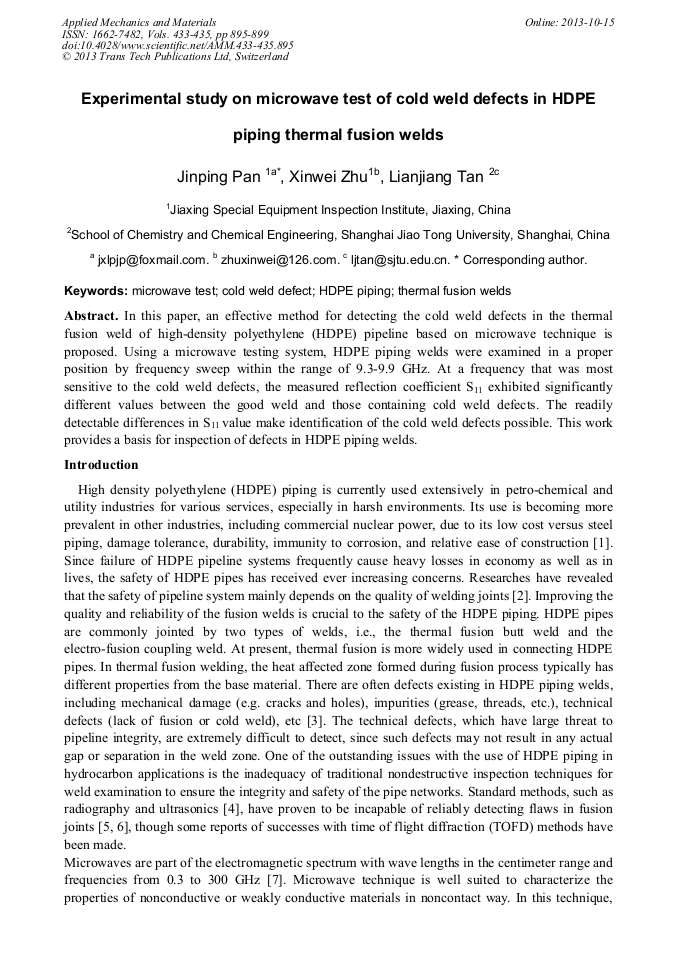

Experimental Study on Microwave Test of Cold Weld Defects in HDPE Piping Thermal Fusion Welds

Abstract:

In this paper, an effective method for detecting the cold weld defects in the thermal fusion weld of high-density polyethylene (HDPE) pipeline based on microwave technique is proposed. Using a microwave testing system, HDPE piping welds were examined in a proper position by frequency sweep within the range of 9.3-9.9 GHz. At a frequency that was most sensitive to the cold weld defects, the measured reflection coefficient S₁₁ exhibited significantly different values between the good weld and those containing cold weld defects. The readily detectable differences in S₁₁value make identification of the cold weld defects possible. This work provides a basis for inspection of defects in HDPE piping welds.
