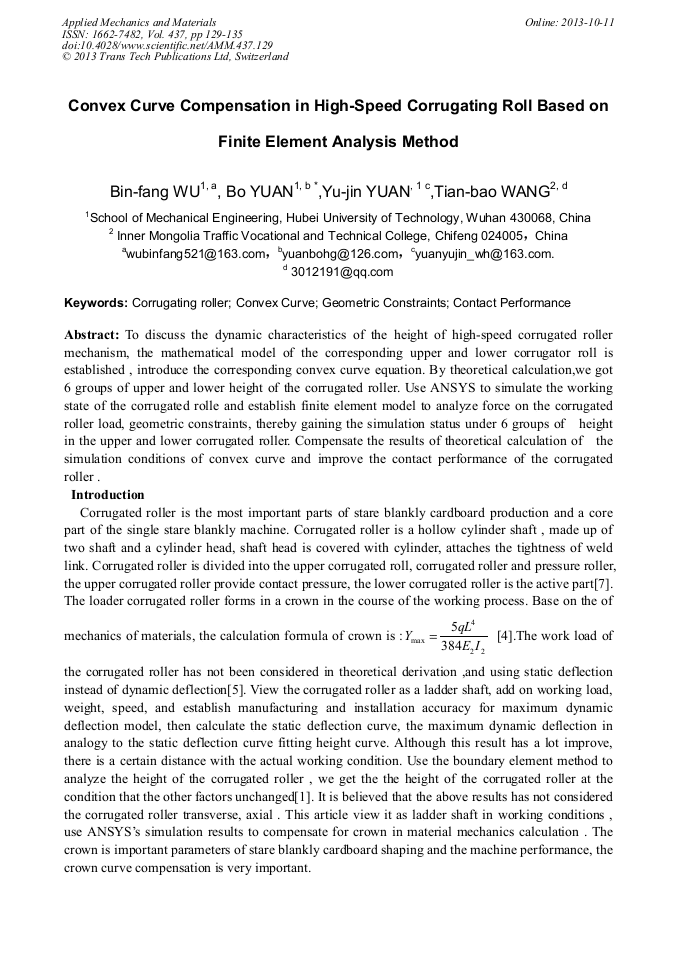

Convex Curve Compensation in High-Speed Corrugating Roll Based on Finite Element Analysis Method

Abstract:

To discuss the dynamic characteristics of the height of high-speed corrugated roller mechanism, the mathematical model of the corresponding upper and lower corrugator roll is established , introduce the corresponding convex curve equation. By theoretical calculation,we got 6 groups of upper and lower height of the corrugated roller. Use ANSYS to simulate the working state of the corrugated rolle and establish finite element model to analyze force on the corrugated roller load, geometric constraints, thereby gaining the simulation status under 6 groups of height in the upper and lower corrugated roller. Compensate the results of theoretical calculation of the simulation conditions of convex curve and improve the contact performance of the corrugated roller .

• Periodical: Applied Mechanics and Materials (Volume 437)
• Pages: 129-135
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.437.129
• Online since: October 2013
• Authors: Bin Fang Wu, Bo Yuan*, Yu Jin Yuan, Tian Bao Wang
• Keywords: Contact Performance, Convex Curve, Corrugating Roller, Geometric Constraints

References

[1] Hong-gang An，Shi-tang Zhou，Hui Ke. High speed corrugated roller crown parameters integrated finite element method[J]. Journal of Hubei Polytechnic University, 1998, 13(4): 43-47.

[2] Wei Wang，Shi-tang Zhou. Parameters Integration of High Speed Corrugating Machine Systems Degree of Canber[J]. Packaging Engineering，2006, 27 (4): 79-91.

[3] Xiao-cheng Huang， Dao-Xun Liao. Study of Rigidity and Center-Height of Corrugating Roller[J]. Mechanical science and technology, 1999, 18 (1): 51-55.

[4] Zhen-lin Wang，Shu-ping Zhi. Corrugated roller convex amount in the selection and calculation[J]. China packaging industry, 1999, 18 (1): 51-55.

[5] Zhen-lin Wang，Shu-ping Zhi. Selection and calculation of the convex curve in the corrugated roller, 2000，74 (8): 31-32.

[6] Yun-ming Fu. Study on Convex Curve Design and Contact Performance of Corrugated Roller[D]. Dalian：Dalian University of Technology, (2010).

[7] Bin-fang Wu，Bo Yuan，Min-xia Yan，Hua Xiong. Vibration and Modal Analysis of Corrugated Roller Based on UG and ANSYS Software[J]. Packaging Engineering，2013, 34 (3): 55-58.
