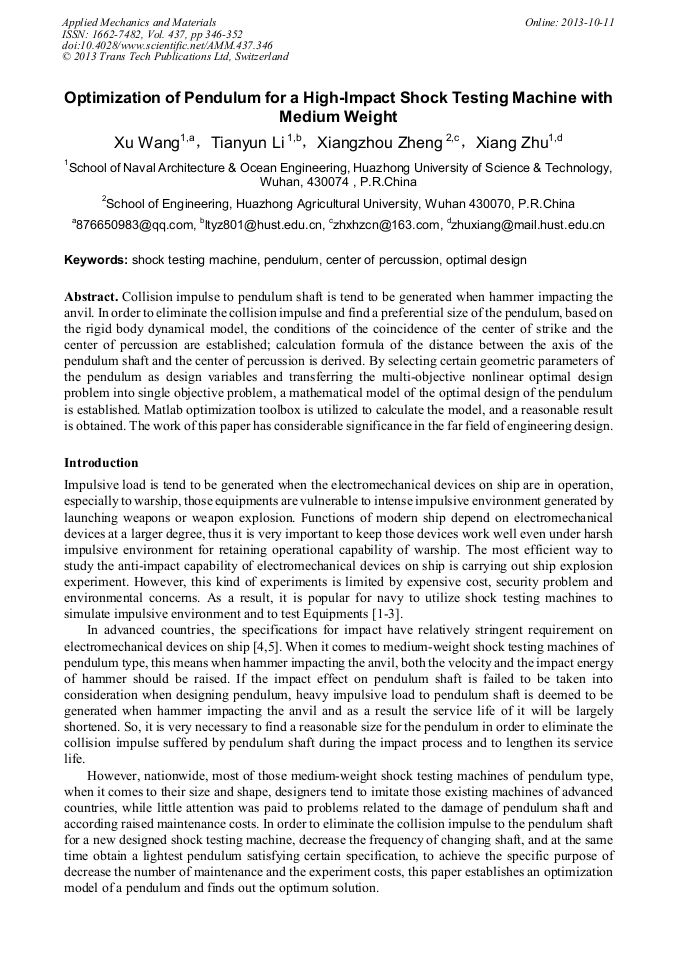

Optimization of Pendulum for a High-Impact Shock Testing Machine with Medium Weight

Abstract:

Collision impulse to pendulum shaft is tend to be generated when hammer impacting the anvil. In order to eliminate the collision impulse and find a preferential size of the pendulum, based on the rigid body dynamical model, the conditions of the coincidence of the center of strike and the center of percussion are established; calculation formula of the distance between the axis of the pendulum shaft and the center of percussion is derived. By selecting certain geometric parameters of the pendulum as design variables and transferring the multi-objective nonlinear optimal design problem into single objective problem, a mathematical model of the optimal design of the pendulum is established. Matlab optimization toolbox is utilized to calculate the model, and a reasonable result is obtained. The work of this paper has considerable significance in the far field of engineering design.

• Periodical: Applied Mechanics and Materials (Volume 437)
• Pages: 346-352
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.437.346
• Online since: October 2013
• Authors: Xu Wang*, Tian Yun Li, Xiang Zhou Zheng, Xiang Zhu
• Keywords: Center of Percussion, Optimal Design, Pendulum, Shock Testing Machine

References

[1] G. X. Wang, D. Y. Chu, L. Zhang, R. Y. Shen, Y. Wang, Advances in shock test facilities for shipboard equipments, Journal of vibration and shock, 26(2007) 152-159.

[2] H. Wu, C. Zhang, L. L. Ren, L. Zhang, X. D. Cheng, Means of impact test and application of vibration-impact platform, Ship science and technology, 34(2012) 50-54.

[3] D. Y. Chu, Y. Wang, G. X. Wang, H. X. Hua, Modeling and simulation of positive pulse system for heavy weight double-pulse shock testing machine, Journal of system simulation, 20(2008) 1031-1035.

[4] MIL-S-901D. Military Specification, Shock Tests, H.I. (High Impact) Shipboard Machinery, Equipment and Systems, Requirement for DODSIF Issue, Standard (1989).

DOI: 10.21236/ada550253

[5] Vessels construction rules of Bundeswehr, BV0430/85, impact security, China ship research institute of the ministry of science and technology development, (1988).

[6] X. X. Yang, College physics (4th edition), Wuhan: Huazhong university of science and technology press, (2006).

[7] Z. G. Sun, M. S. Liu, P. P. Zhang, Design and verification on the pendulum of impact testing machine, Machinery design and manufacture, 12(2006) 117-119.

[8] L. Z. Chen, Mechanical optimization design (2nd edition), Beijing: Metallurgical Industry Press, (1995).

[9] C. X. Wang, H. Z. Feng, The application of MATLAB software in mechanical optimization design, Journal of machine design, 21(2004) 52-54.

[10] J. M. Su, S. Y. Yuan, MATLAB Practical Guide, Beijing: Electronic Industry Press, (2005).
