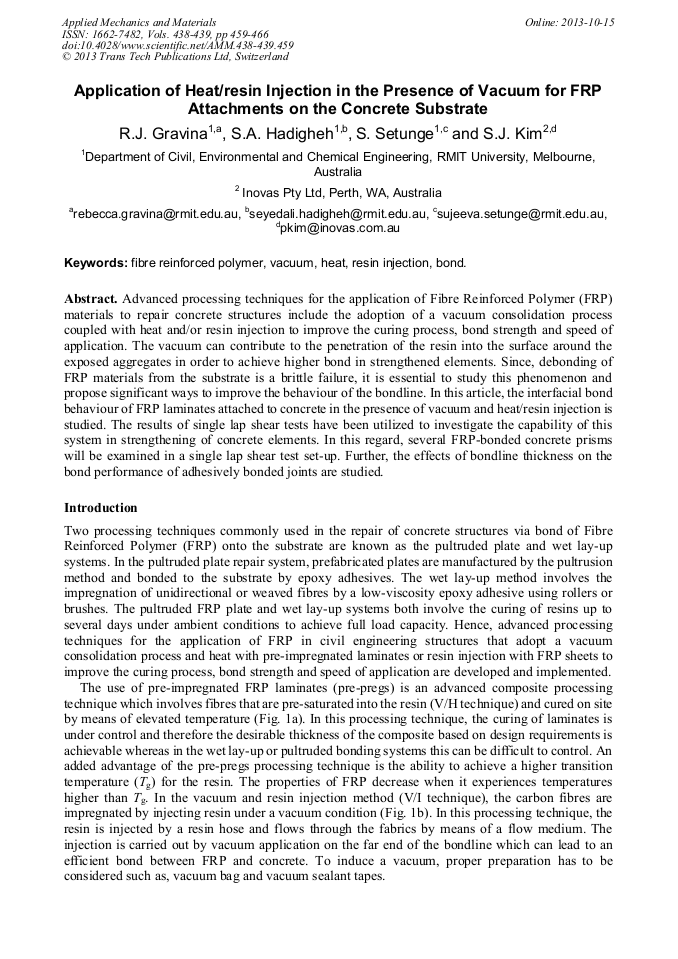

Application of Heat/Resin Injection in the Presence of Vacuum for FRP Attachments on the Concrete Substrate

Abstract:

Advanced processing techniques for the application of Fibre Reinforced Polymer (FRP) materials to repair concrete structures include the adoption of a vacuum consolidation process coupled with heat and/or resin injection to improve the curing process, bond strength and speed of application. The vacuum can contribute to the penetration of the resin into the surface around the exposed aggregates in order to achieve higher bond in strengthened elements. Since, debonding of FRP materials from the substrate is a brittle failure, it is essential to study this phenomenon and propose significant ways to improve the behaviour of the bondline. In this article, the interfacial bond behaviour of FRP laminates attached to concrete in the presence of vacuum and heat/resin injection is studied. The results of single lap shear tests have been utilized to investigate the capability of this system in strengthening of concrete elements. In this regard, several FRP-bonded concrete prisms will be examined in a single lap shear test set-up. Further, the effects of bondline thickness on the bond performance of adhesively bonded joints are studied.

• Periodical: Applied Mechanics and Materials (Volumes 438-439)
• Pages: 459-466
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.438-439.459
• Online since: October 2013
• Authors: R.J. Gravina, S.A. Hadigheh, Sujeeva Setunge, S.J. Kim
• Keywords: Bond, Fiber Reinforced Polymer (FRP), Heat, Resin Injection, Vacuum

References

[1] K. V. Subramaniam, C. Carloni, L. Nobile, Width effect in the interface fracture during shear debonding of FRP sheets from concrete, Engineering Fracture Mechanics, Vol. 74 4 (2007) 578-594.

DOI: 10.1016/j.engfracmech.2006.09.002

[2] M. Nehdi, A. El Damatty, R. Rahimi, Investigation on lap-joint behaviour of GFRP plates bonded to silica fume and rice husk ash concrete, International Journal of Adhesion and Adhesives, Vol. 23 4 (2003) 323-333.

DOI: 10.1016/s0143-7496(03)00050-2

[3] R. A. Barnes, G. C. Mays, The transfer of stress through a steel to concrete adhesive bond, International Journal of Adhesion and Adhesives, Vol. 21 6 (2001) 495-502.

DOI: 10.1016/s0143-7496(01)00031-8

[4] L. De Lorenzis, B. Miller, A. Nanni, Bond of FRP laminates to concrete, ACI Materials Journal, Vol. 98 3 (2001) 256-264.

[5] S. Cao, et al., ESPI measurement of bond-slip relationships of FRP-concrete interface, Journal of Composites for Construction, Vol. 11 2 (2007) 149-160.

DOI: 10.1061/(asce)1090-0268(2007)11:2(149)

[6] S. A. Hadigheh, R. J. Gravina, S. Setunge, Experimental study on the bondline behavior between concrete and FRP materials, in: Australian Conference on the Mechanics of Structures and Materials (ACMSM 22), B. Samali, M. M. Attard, C. Song, Editors, Taylor & Francis Group, Sydney, Australia, (2012).

DOI: 10.1201/b15320-88

[7] R. J. Gravina, S. A. Hadigheh, S. Setunge, Bond and force transfer of FRP materials bonded to concrete using sitecure system, in: The Third Asia-Pacific Conference on FRP in Structures (APFIS 2012), 2012, Japan.

DOI: 10.1201/b15320-88

[8] HB 305, Design Handbook for RC Structures Retrofitted with FRP and Metal Plates: Beams and Slabs, 2008, Standards Australia: 476, Sydney, NSW 2001, Australia, p.68.

[9] S. A. Hadigheh, R. J. Gravina, S. Setunge, Shear debonding of FRP plates from concrete surface: using modified single lap shear test set-up, in: The 6th International Composites Conference (ACUN-6), Y. Bai, et al., Editors, Melbourne, Australia, (2012).

DOI: 10.1016/j.engfracmech.2014.12.001

[10] S. A. Hadigheh, R. J. Gravina, S. Setunge, Experimental and analytical identification of interfacial bond characteristics in adhesively bonded joints, in: 11th international symposium on fiber reinforced polymers for reinforced concrete structures (FRPRCS11), J. Barros and J. Sena-Cruz, Editors, Guimarães, Portugal, (2013).
