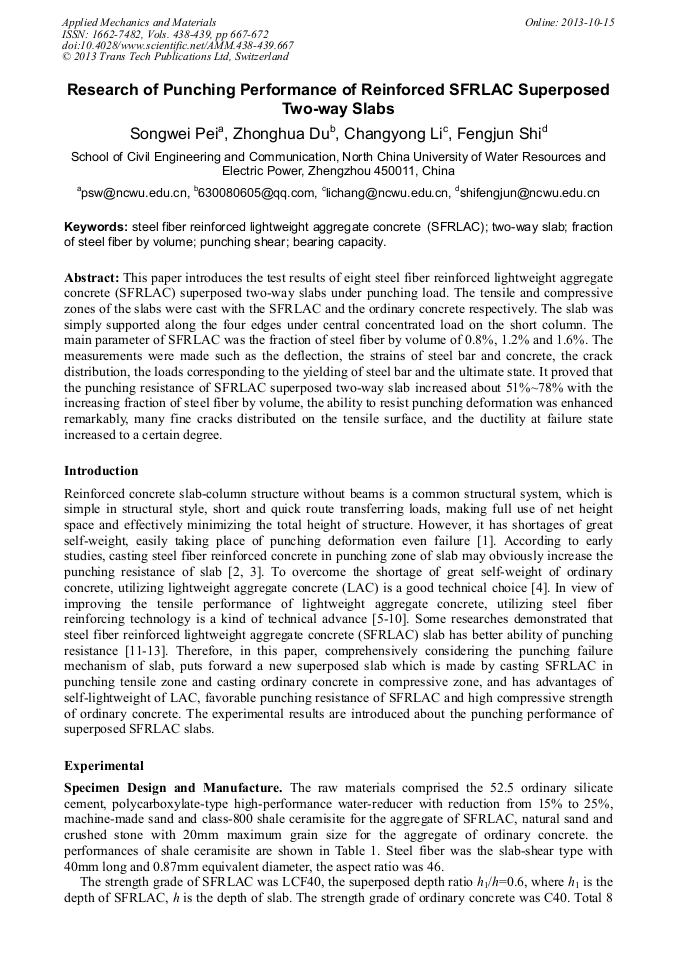

Research of Punching Performance of Reinforced SFRLAC Superposed Two-Way Slabs

Abstract:

This paper introduces the test results of eight steel fiber reinforced lightweight aggregate concrete (SFRLAC) superposed two-way slabs under punching load. The tensile and compressive zones of the slabs were cast with the SFRLAC and the ordinary concrete respectively. The slab was simply supported along the four edges under central concentrated load on the short column. The main parameter of SFRLAC was the fraction of steel fiber by volume of 0.8%, 1.2% and 1.6%. The measurements were made such as the deflection, the strains of steel bar and concrete, the crack distribution, the loads corresponding to the yielding of steel bar and the ultimate state. It proved that the punching resistance of SFRLAC superposed two-way slab increased about 51%~78% with the increasing fraction of steel fiber by volume, the ability to resist punching deformation was enhanced remarkably, many fine cracks distributed on the tensile surface, and the ductility at failure state increased to a certain degree.

• Periodical: Applied Mechanics and Materials (Volumes 438-439)
• Pages: 667-672
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.438-439.667
• Online since: October 2013
• Authors: Song Wei Pei, Zhong Hua Du, Chang Yong Li, Feng Jun Shi
• Keywords: Bearing Capacity, Fraction of Steel Fiber by Volume, Punching Shear, Steel Fiber Reinforced Lightweight Aggregate Concrete (SFRLAC), Two-Way Slab

References

[1] X. Guo, G. Liu, S. Cao, Q. Yu, Experimental study on punching failure mechanism and calculation for punching resistance of reinforced concrete slab, Journal of Haerbin Institute of Architectural Engineering, Vol. 26 6 (1993) 74-80.

[2] F. Li, L. Pan, Calculation of punching shear resistance of steel fiber reinforced concrete slabs, Henan Science, Vol. 21 4 (2003) 457-460.

[3] CECS38: 2004, Technical Specification for Fiber Reinforced Concrete Structures, China Plan Press, Beijing, (2004).

[4] Q. Yang, K. Ma, Current situation and development of lightweight aggregate concrete, Railway Construction, 6 (2006) 104-l06.

[5] C. Li, H. Chen, S. Zhao, Mechanical properties of steel fiber reinforced light-aggregate concrete, Advanced Materials Research, 366 (2012) 12-15.

DOI: 10.4028/www.scientific.net/amr.366.12

[6] C. Li, H. Chen, S. Zhao, Experimental study on tensile strength of manufactured sand expanded-shale concretet, Journal of Zhengzhou University (Engineering Science), Vol. 32 1 (2011) 13-17.

[7] C. Li, H. Chen, S. Zhao, Frost performance of steel fiber reinforced full-lightweight concrete, Concrete, 11 (2011) 98-99.

[8] C. Li, X. Qian, S. Zhao, Experimental study on basic mechanical properties of full lightweight concrete, Concrete, 5 (2010) 79-82.

[9] C. Li, H. Chen, S. Zhao, Experimental study on compressive performance of manufactured sand expanded shale concrete, Journal of Guangxi University (Nat. Sci. Ed. ), Vol. 35 4 (2010) 688-692.

[10] S. Zhao, C. Li, X. Qian, Experimental study on mechanical properties of steel fiber reinforced full lightweight concrete, Geotechnical Special Publication No. 212 ©ASCE 2011, pp.233-239.

DOI: 10.1061/47623(402)28

[11] Z. Zheng, J. Zheng, Punching strength of reinforced ceramisite concrete slab, Journal of Fuzhou University (Natural Science Ed. ), Vol. 20 4 (1992) 63-69.

[12] J. Zheng, Z. Zheng, Calculation of punching strength of lightweight aggregate concrete slab based on reliability analysis, Journal of Fuzhou University (Natural Science Ed. ), Vol. 21 1 (1993) 63-69.

[13] Q. Yang, M. Mao, Research of punching strength of prestressed lightweight aggregate concrete slab, Concrete, 6 (2010): 115-117.
