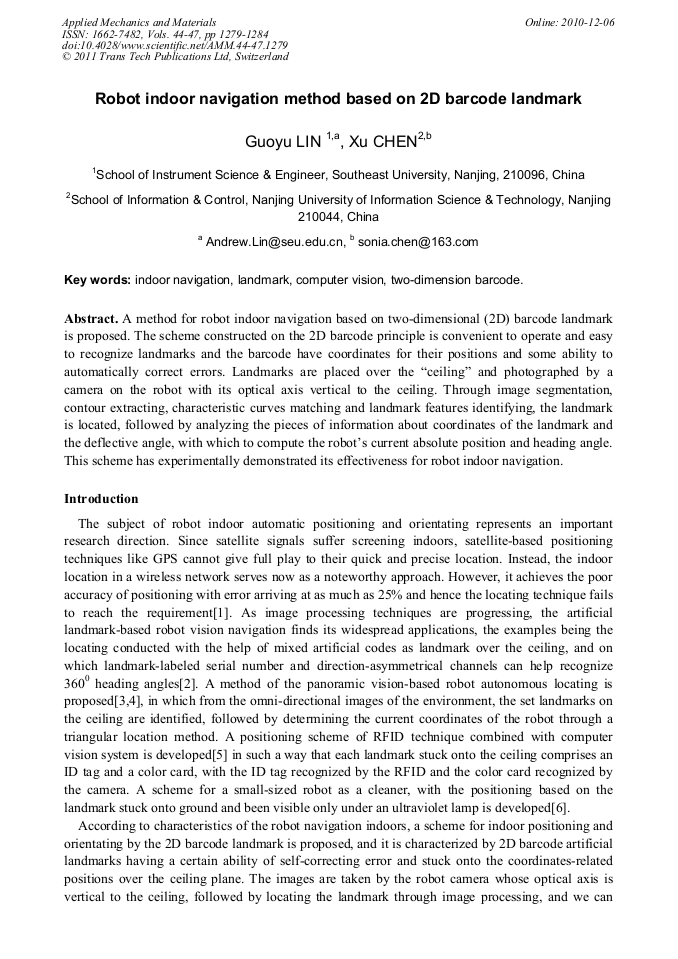

Robot Indoor Navigation Method Based on 2D Barcode Landmark

Abstract:

A method for robot indoor navigation based on two-dimensional (2D) barcode landmark is proposed. The scheme constructed on the 2D barcode principle is convenient to operate and easy to recognize landmarks and the barcode have coordinates for their positions and some ability to automatically correct errors. Landmarks are placed over the “ceiling” and photographed by a camera on the robot with its optical axis vertical to the ceiling. Through image segmentation, contour extracting, characteristic curves matching and landmark features identifying, the landmark is located, followed by analyzing the pieces of information about coordinates of the landmark and the deflective angle, with which to compute the robot’s current absolute position and heading angle. This scheme has experimentally demonstrated its effectiveness for robot indoor navigation.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 1279-1284
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.1279
• Online since: December 2010
• Authors: Guo Yu Lin, Xu Chen
• Keywords: Computer Vision, Indoor Navigation, Landmark, Two-Dimension Barcode

References

[1] LI Lei, QIN Guojun, HU Niaoqing, et al.: Wireless sensor node location approach based on transmission distance estimation. System Engineering and Electronics, Vol. 31(1)(2009), pp.213-215.

[2] Zhang Xiaobing, Song Aiguo, Tang Hongru: Precise localization of indoor mobile robot based on vision. Journal of Data Acquisition &Processing, Vol. 22(2)(2007), pp.196-200.

[3] Lu Jun, Mu Haijun, Zhu Qidan, et al.: Application of omni-vision in robot independent localization. Computer Applications, Vol. 27(7)(2007), pp.1677-1679.

[4] Wu Chih Jen, Tsai Wen Hsiang: Location estimation for indoor autonomous vehicle navigation by omni-directional vision using circular landmarks on ceilings. Robotics and Autonomous Systems, Vol. 57(5)(2009), pp.546-555.

DOI: 10.1016/j.robot.2008.10.001

[5] Lin Weiguo, Jia Songmin, Takafumi Abe, et al.: Localization of mobile robot based on ID tag and WEB camera. Proceeding of the 2004 IEEE Conference on Robotics, Automation and Mechatronics, Singapore, Vol. 2(2004), pp.851-856.

DOI: 10.1109/ramech.2004.1438029

[6] Jinwook Huh, Woong Sik Chung, Sang Yep Nam, et al.: Mobile robot exploration in indoor environment using topological structure with invisible barcodes. IEEE/RSJ International Conference on Intelligent Robots and Systems, Beijing, Vol. 29(2006).

DOI: 10.1109/iros.2006.282025

[7] Zheng Rui, Yuan Kui, U Yuan: A 2D code for mobile robot localization and navigation in indoor environments. Chinese High Technology Letters, Vol. 18(4)(2008), pp.369-374.

[8] Lv Yuzeng, Peng Qimin, Li Xiang: Shape recognition based on the invariant of extremum feature. Acta Electronica Sinica, Vol. 36(4)(2008), pp.679-684.
