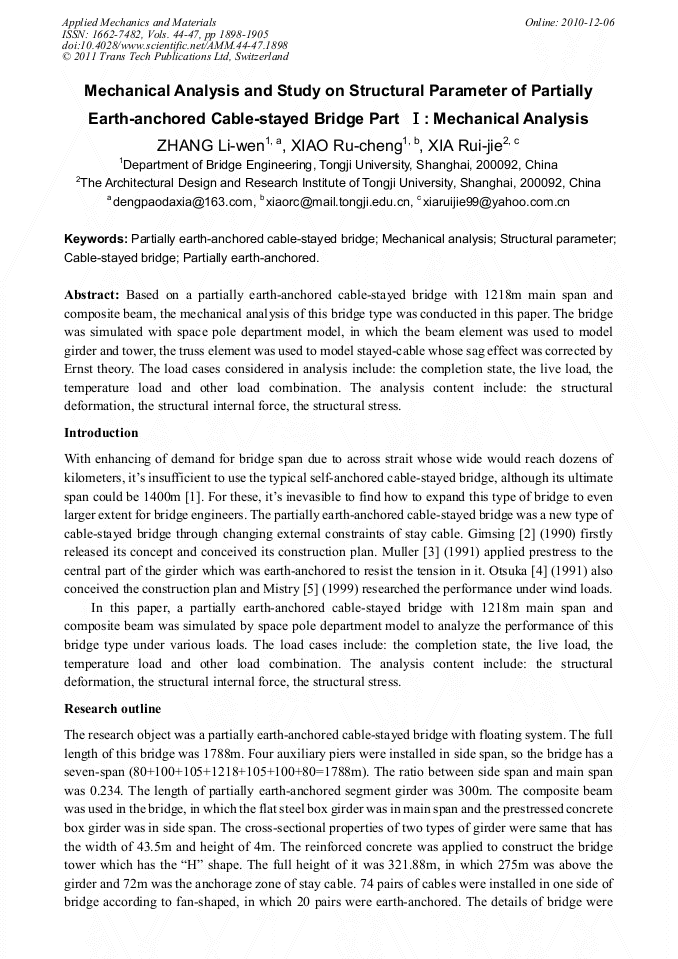

Mechanical Analysis and Study on Structural Parameter of Partially Earth-Anchored Cable-Stayed Bridge Part I: Mechanical Analysis

Abstract:

Based on a partially earth-anchored cable-stayed bridge with 1218m main span and composite beam, the mechanical analysis of this bridge type was conducted in this paper. The bridge was simulated with space pole department model, in which the beam element was used to model girder and tower, the truss element was used to model stayed-cable whose sag effect was corrected by Ernst theory. The load cases considered in analysis include: the completion state, the live load, the temperature load and other load combination. The analysis content include: the structural deformation, the structural internal force, the structural stress.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 1898-1905
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.1898
• Online since: December 2010
• Authors: Li Wen Zhang, Ru Cheng Xiao, Rui Jie Xia
• Keywords: Cable-Stayed Bridge, Mechanical Analysis, Partially Earth-Anchored, Partially Earth-Anchored Cable-Stayed Bridge, Structural Parameter

References

[1] SUN Bin. Study on Structural Systems in Super-kilometer Cable Supported Bridge (in Chinese) [D]. Shanghai: Tongji University, (2008).

[2] Gimsing N J. Cable Supported Bridges-Concept & Design [M]. Chichester: John Wiley & Sons, (1997).

[3] Muller J. Bi-stayed Cable-stayed Bridge [C]. International Conference on Bridge, Leningrad, (1991).

[4] Otsuka H. Fundamental Study for Design and Erection of Partially Anchored Composite Cable-stayed Bridge with 900m Center Span Length [C]. Innovation in Cable-stayed Bridge, Japan, (1991).

DOI: 10.1201/b17063-376

[5] Dr∙B B MISTRY, Dr∙J A DESAI, Dr∙J C VYAS. Behaviour or Super-Long Self-Anchored and Partially Earth-Anchored Cable Stayed Bridges under Displacement-Dependent Wind Loads [C]. Cable stayed, Supported and Suspension Bridges, Proceedings of the International Conference, Hyderabad, India, (1999).

DOI: 10.12989/was.2015.21.4.407

[6] J∙H∙Ernst. Der E-Modul Von Seilen unter Berucksichtigung des Durchhangers [J]. Der Bauingenieur, 1965, 40(2), 52~55.

[7] General Code for Design of Highway Bridges and Culverts (JTG D60-2004) [S]. China Communications Press, (2004).

[8] Wind resistant Design Specification for Highway Bridges (JTG/T D60-01-2004) [S]. China Communications Press, (2004).
