Mechanical and Pneumatic Coupling of the Pneumatic Motor with Offset Swinging Planetary Drive of Bevel Gears

Abstract:

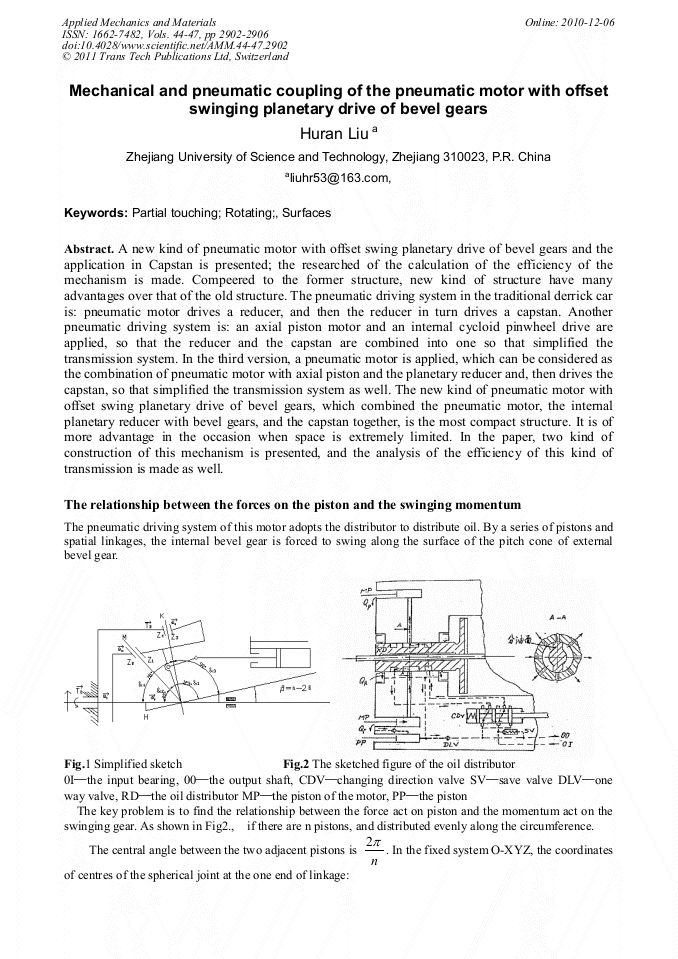

Article Preview

A new kind of pneumatic motor with offset swing planetary drive of bevel gears and the application in Capstan is presented; the researched of the calculation of the efficiency of the mechanism is made. Compeered to the former structure, new kind of structure have many advantages over that of the old structure. The pneumatic driving system in the traditional derrick car is: pneumatic motor drives a reducer, and then the reducer in turn drives a capstan. Another pneumatic driving system is: an axial piston motor and an internal cycloid pinwheel drive are applied, so that the reducer and the capstan are combined into one so that simplified the transmission system. In the third version, a pneumatic motor is applied, which can be considered as the combination of pneumatic motor with axial piston and the planetary reducer and, then drives the capstan, so that simplified the transmission system as well. The new kind of pneumatic motor with offset swing planetary drive of bevel gears, which combined the pneumatic motor, the internal planetary reducer with bevel gears, and the capstan together, is the most compact structure. It is of more advantage in the occasion when space is extremely limited. In the paper, two kind of construction of this mechanism is presented, and the analysis of the efficiency of this kind of transmission is made as well.

Info:

Periodical:

Edited by:

Ran Chen

Pages:

2902-2906

DOI:

10.4028/www.scientific.net/AMM.44-47.2902

Citation:

H. R. Liu "Mechanical and Pneumatic Coupling of the Pneumatic Motor with Offset Swinging Planetary Drive of Bevel Gears", Applied Mechanics and Materials, Vols. 44-47, pp. 2902-2906, 2011

Online since:

December 2010

Authors:

Export:

Price:

$35.00

[1] New technique in Pneumatic field. American Pneumatic and Pneumatic Drive, 1972. 1.

[2] Pneumatic motor with swinging bevel gear transmission, American Product Engineering. 1972. 1.

[3] USA Patent No. 3675539.

[4] Liu Huran, Dumitru Dragomir: Calculul randa mentului motor hidtanlic cu angrenaj conjc precesional 1996. 1 《MMTC》 in Romania.

[5] Liu Huran, Pneumatic motor with swinging bevel gear transmission. DRIVE SYSTEM TECHNIQUE 1998. 2.

[6] Liu Huran, Dumitru Dragomir. Precontrolul angrenarii punctuale cu abateri la angrenaje spirale conice Tehnologll Calitate Masini Materiale(in Romania) 1996. 1.

[7] . Liu Huran, Contact deformation and pre-control of transmission properties of point conjugate gear. DRIVE SYSTEM TECHNIQUE 1999. 3.

[8] . Liu Huran, Internal cylindrical-bevel gear transmission DRIVE SYSTEM TECHNIQUE 1999. 2.

[9] Liu Huran The conjugation of a new kind of transmission, DRIVE SYSTEM TECHNIQUE 1999. 1.

[10] Liu Huran, The deduction of the forms of the planetary transmission of bevel gear. DRIVE SYSTEM TECHNIQUE 1998. 3.
