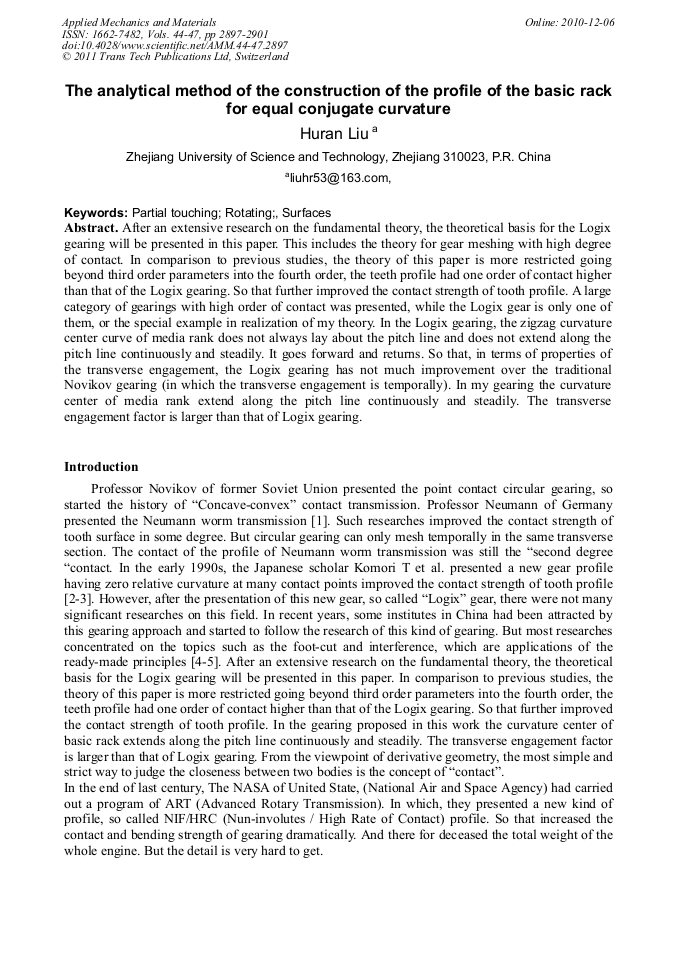

The Analytical Method of the Construction of the Profile of the Basic Rack for Equal Conjugate Curvature

Abstract:

After an extensive research on the fundamental theory, the theoretical basis for the Logix gearing will be presented in this paper. This includes the theory for gear meshing with high degree of contact. In comparison to previous studies, the theory of this paper is more restricted going beyond third order parameters into the fourth order, the teeth profile had one order of contact higher than that of the Logix gearing. So that further improved the contact strength of tooth profile. A large category of gearings with high order of contact was presented, while the Logix gear is only one of them, or the special example in realization of my theory. In the Logix gearing, the zigzag curvature center curve of media rank does not always lay about the pitch line and does not extend along the pitch line continuously and steadily. It goes forward and returns. So that, in terms of properties of the transverse engagement, the Logix gearing has not much improvement over the traditional Novikov gearing (in which the transverse engagement is temporally). In my gearing the curvature center of media rank extend along the pitch line continuously and steadily. The transverse engagement factor is larger than that of Logix gearing.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 2897-2901
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.2897
• Online since: December 2010
• Authors: Hu Ran Liu
• Keywords: Partial Touching, Rotating, Surface

References

[1] F. Neumann, Machine Element, Elsveir Press. 1990 London.

[2] Komori T, Arga Y, Nagata S (1990) A new gear profile having zero relative curvature at many contact points. Trans ASME 12(3): 430~436.

DOI: 10.1115/1.2912626

[3] Komori T, (1988) A new gear profile of relative curvature being zero at contact points. Proceeding of International Conference on gearing, China CMCC,.: 230~236.

[4] Xiangying, Feng; Aiqun Wang lee, Linda; (2004)( Study on the design principle of the Logix gear tooth profile and the selection of its inherent parameters. International Journal of Advanced Manufacture Technology Dec. Vol 24. (11/12): 789~794.

DOI: 10.1007/s00170-003-1741-8

[5] Li.F. (2002 ) Study for the forming principle of Logix gear tooth profile and its mesh performance Journal of Xiamen University, vol36(1): 12-16.

[6] Wu Dalen, Deferential Geometry and Theory of gear mesh, Science Press China (in Chinese).

[7] L. Litvin, Theory of gear mesh and its application, Mechanical Industrial Press China. (1984).

[8] Dooner, D. B, (2002) On the Three Laws of Gearing, Journal of Mechanical Design, Vol. 124, December.

[9] Di Puccio, Alternative Formulation of the Theory of Gearing, Mechanism and Machine Theory, (2005).

[10] Novikov, New kind of gear transmission. Mechanism and Machine Theory, (1958).
