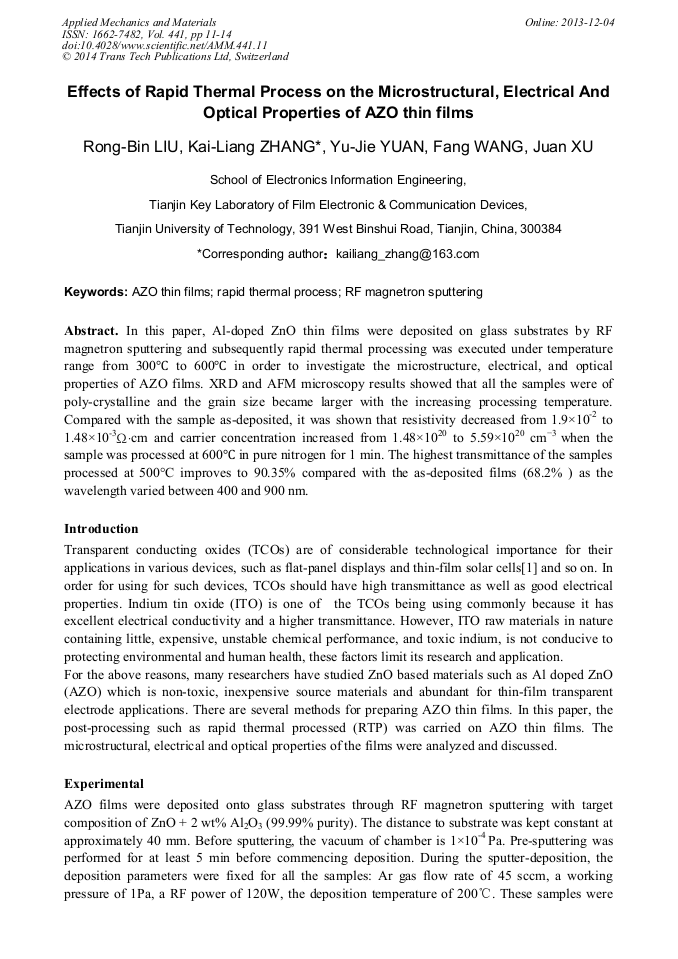

Effects of Rapid Thermal Process on the Microstructural, Electrical and Optical Properties of AZO Thin Films

Abstract:

In this paper, Al-doped ZnO thin films were deposited on glass substrates by RF magnetron sputtering and subsequently rapid thermal processing was executed under temperature range from 300°C to 600°C in order to investigate the microstructure, electrical, and optical properties of AZO films. XRD and AFM microscopy results showed that all the samples were of poly-crystalline and the grain size became larger with the increasing processing temperature. Compared with the sample as-deposited, it was shown that resistivity decreased from 1.9×10^-2 to 1.48×10^-3Ωcm and carrier concentration increased from 1.48×10²⁰ to 5.59×10²⁰ cm³when the sample was processed at 600°C in pure nitrogen for 1 min. The highest transmittance of the samples processed at 500°C improves to 90.35% compared with the as-deposited films (68.2% ) as the wavelength varied between 400 and 900 nm.

You might also be interested in these eBooks

Machinery Electronics and Control Engineering III

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 441)

Pages:

11-14

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.441.11

Citation:

Cite this paper

Online since:

December 2013

Authors:

Rong Bin Liu, Kai Liang Zhang*, Yu Jie Yuan, Fang Wang, Juan Xu

Keywords:

AZO Thin Films, Rapid Thermal Process, RF Magnetron Sputter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Jinsu Yoo. High transmittance and low resistive ZnO: Al films for thin film solar cells. Thin Solid Films 480–481 (2005) 213– 217.

DOI: 10.1016/j.tsf.2004.11.010

Google Scholar

[2] Z. Zhang. Influence of deposition temperature on the crystallinity of Al-doped ZnO thin films at glass substrates prepared by RF magnetron sputtering method. Superlattices and Microstructures 49 (2011) 644–653.

DOI: 10.1016/j.spmi.2011.04.002

Google Scholar

[3] Yong Hyun Kim. Electrical, structural and etching characteristics of ZnO: Al films prepared by rf magnetron. Current Applied Physics 10 (2010) S278–S281.

DOI: 10.1016/j.cap.2009.11.061

Google Scholar

[4] Hongyun Yue. Structures and properties of the Al-doped ZnO thin films prepared by radio frequency magnetron sputtering. Thin Solid Films 519(2011)5577–5581.

DOI: 10.1016/j.tsf.2011.03.026

Google Scholar
