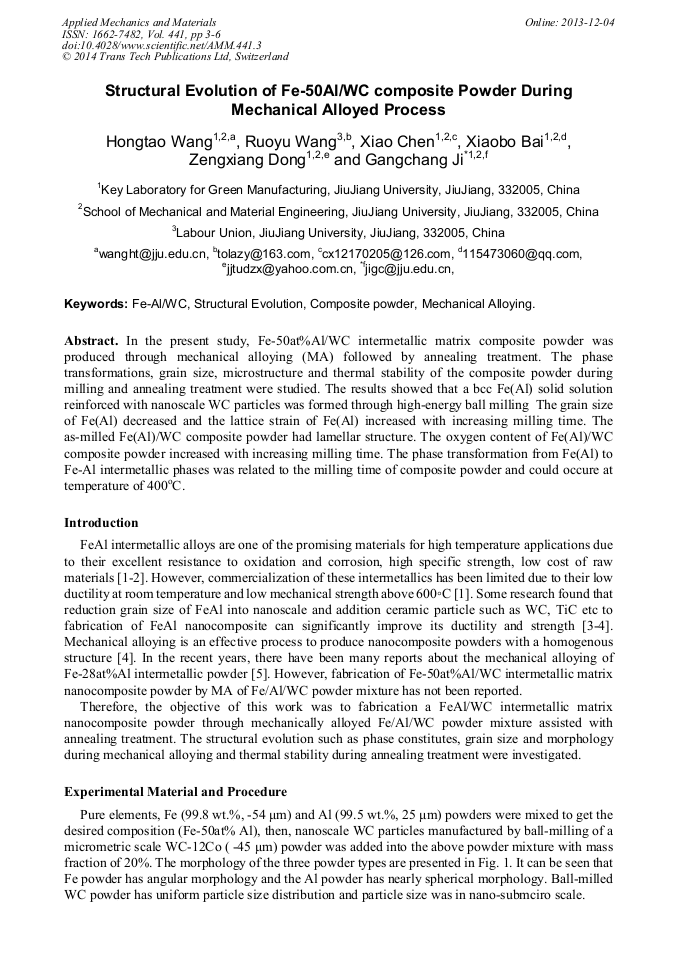

Structural Evolution of Fe-50Al/WC Composite Powder During Mechanical Alloyed Process

Abstract:

In the present study, Fe-50at%Al/WC intermetallic matrix composite powder was produced through mechanical alloying (MA) followed by annealing treatment. The phase transformations, grain size, microstructure and thermal stability of the composite powder during milling and annealing treatment were studied. The results showed that a bcc Fe(Al) solid solution reinforced with nanoscale WC particles was formed through high-energy ball milling The grain size of Fe(Al) decreased and the lattice strain of Fe(Al) increased with increasing milling time. The as-milled Fe(Al)/WC composite powder had lamellar structure. The oxygen content of Fe(Al)/WC composite powder increased with increasing milling time. The phase transformation from Fe(Al) to Fe-Al intermetallic phases was related to the milling time of composite powder and could occure at temperature of 400°C.

• Periodical: Applied Mechanics and Materials (Volume 441)
• Pages: 3-6
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.441.3
• Online since: December 2013
• Authors: Hong Tao Wang, Ruo Yu Wang, Xiao Chen, Xiao Bo Bai, Zeng Xiang Dong, Gang Chang Ji
• Keywords: Composite Powder, Fe-Al/WC, Mechanical Alloying, Structural Evolution

References

[1] N.S. Stoloff: Mater. Sci. Eng. A. Vol. 258 (1998), p.1.

[2] S.C. Deevi and V.K. Sikka: Intermetallics. Vol. 4 (1996), p.357.

[3] R. Subramanian and J.H. Schneibel: Mater. Sci. Eng. A. Vol. 244 (1998), p.103.

[4] M. Krasnowski and T. Kulik: Intermetallics. Vol. 15 (2007), p.1377.

[5] W.M. Tang, Z.X. Zheng, H.J. Tang, R. Ren and Y.C. Wu: Intermetallics. Vol. 15 (2007), p.1020.

[6] H.P. Klug and L.E. Alexander: London: John Wiley & Sons. (1954).

[7] A.R. Stokes and A.J.C. Wilson: Proc. Phys. Soc. Lond. Vol. 56 (1944), p.174.
