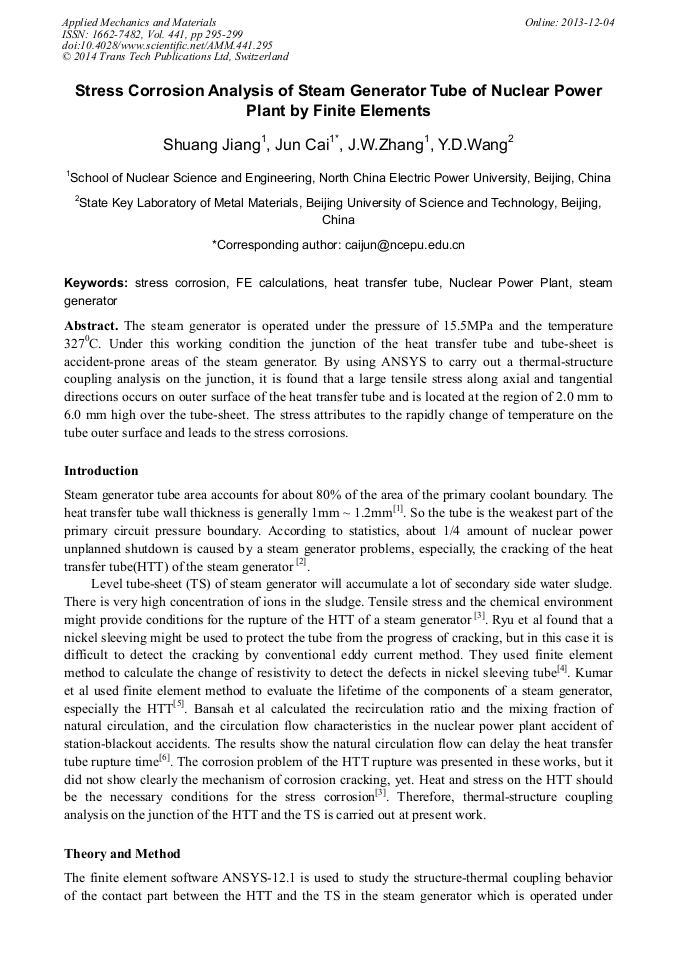

Stress Corrosion Analysis of Steam Generator Tube of Nuclear Power Plant by Finite Elements

Abstract:

The steam generator is operated under the pressure of 15.5MPa and the temperature 327°C. Under this working condition the junction of the heat transfer tube and tube-sheet is accident-prone areas of the steam generator. By using ANSYS to carry out a thermal structure coupling analysis on the junction, it is found that a large tensile stress along axial and tangential directions occurs on outer surface of the heat transfer tube and is located at the region of 2.0 mm to 6.0 mm high over the tube-sheet. The stress attributes to the rapidly change of temperature on the tube outer surface and leads to the stress corrosions.

• Periodical: Applied Mechanics and Materials (Volume 441)
• Pages: 295-299
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.441.295
• Online since: December 2013
• Authors: Shuang Jiang, Jun Cai, J.W. Zhang, Y.D. Wang
• Keywords: FE Calculations, Heat Transfer Tube, Nuclear Power Plant (NPP), Steam Generator (SG), Stress Corrosion

References

[1] Su L S, Yang H. Y, Wang F S: Systems and Equipment of Nuclear Power Plant for 900MW PWR. Beijing：Atomic Energy Press, 2004: 87(in Chinese).

[2] Dai P K, Wu Z Q, Zhang C: Materials and its Welding of Key Equipment in Nuclear Island for PWR Nuclear Power Plant. Shanghai: ShangHai Scientific and Technological Literature Publishing House, 2009, 115(in Chinese).

[3] Din X S: Journal of Chinese Society for Corrosion and Protection, 2000; 21(1): 15(in Chinese).

[4] Ryu K S, Son D, Park D G, Jung J K: IEEE Transactions on Magnetics, 2009; 45(6): 2733.

[5] Kumar R, Idvorian N: International Journal of Pressure Vessels and Piping, 2001; 78: 359.

[6] Bansah C Y, Akaho E H K, Ayensu A, Adoo N A, Agbodemegbe V Y, Alhassan E, Della R: Annals of Nuclear Energy , 2013; 59: 10.

DOI: 10.1016/j.anucene.2013.03.013

[7] Liu X W, Wang G M, Shan Y X, Zhao H B: Science & Technology Vision, 2012; (16): 57(in Chinese).

[8] Wang Z J: Finite Element Analysis for Boiler. Beijing: Chemical Industry Press, 2005: 180.

[9] Zhou S Y: Nuclear Safety, 2005; (4): 44(in Chinese).

[10] Qiao P P: Master of Engineering Thesis. Shanghai Jiao Tong University, 2010(in Chinese).

[11] Berge P H, Figuet J M: Nuclear Energy, 1993; 32(2): 115.
