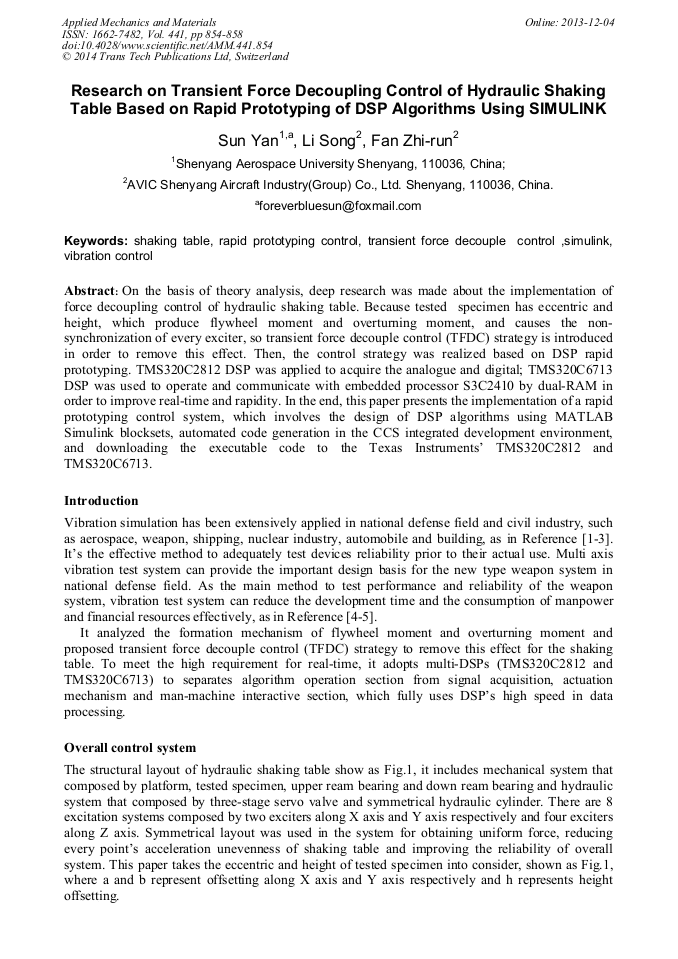

Research on Transient Force Decoupling Control of Hydraulic Shaking Table Based on Rapid Prototyping of DSP Algorithms Using SIMULINK

Abstract:

On the basis of theory analysis, deep research was made about the implementation of force decoupling control of hydraulic shaking table. Because tested specimen has eccentric and height, which produce flywheel moment and overturning moment, and causes the non-synchronization of every exciter, so transient force decouple control (TFDC) strategy is introduced in order to remove this effect. Then, the control strategy was realized based on DSP rapid prototyping. TMS320C2812 DSP was applied to acquire the analogue and digital; TMS320C6713 DSP was used to operate and communicate with embedded processor S3C2410 by dual-RAM in order to improve real-time and rapidity. In the end, this paper presents the implementation of a rapid prototyping control system, which involves the design of DSP algorithms using MATLAB Simulink blocksets, automated code generation in the CCS integrated development environment, and downloading the executable code to the Texas Instruments TMS320C2812 and TMS320C6713.

• Periodical: Applied Mechanics and Materials (Volume 441)
• Pages: 854-858
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.441.854
• Online since: December 2013
• Authors: Yan Sun, Song Li, Zhi Run Fan
• Keywords: Rapid Prototyping Control, Shaking Table, Simulink, Transient Force Decouple Control, Vibration Control

References

[1] John J. Dougherty and Hossny EL-Sherief. Modeling and Identification of a Triaxial Shaker Control System. IEEE Conference on Control Applications-Proceedings, 1995: 884~889.

DOI: 10.1109/cca.1995.555871

[2] Yasuhiro Uchiyama, Masakazu Mukai and Masayuki Fujita. Robust Acceleration Control of Electrodynamic Shaker Using μ-Synthesis. Proceedings of the 44th IEEE Conference on Decision and Control, Seville, Spain, 2005: 6170~6175.

DOI: 10.1109/cdc.2005.1583149

[3] Leandro Della Flora, Hilton Abílio Gründling. Vibration Acceleration Control of an AC Power Source-Fed Electrodynamic Shaker. IEEE Power Electronics Specialists Conference, 2005: 1175~1181.

DOI: 10.1109/pesc.2005.1581778

[4] Underwood, M.A. and Keller, T. Applying Coordinate Transformations to Multi Degree of Freedom Shaker Control. Sound and Vibration. 2006, 40(1): 22~27.

[5] Vaes, W. Souverijns and J. De Cuyper et al. Optimal Decoupling for Improved Multivariable Controller Design, Applied on an Automotive Vibration Test Rig. Proceedings of the American Control Conference. Denver, Colorado, 2003: 785~790.

DOI: 10.1109/acc.2003.1239117

[6] Junwei Han. The study on 3-dimension 6-freedom large scale seimic simulation apparatus. Study report for Doctor in Harbin Institute of Technology, 1996, 34-35.
