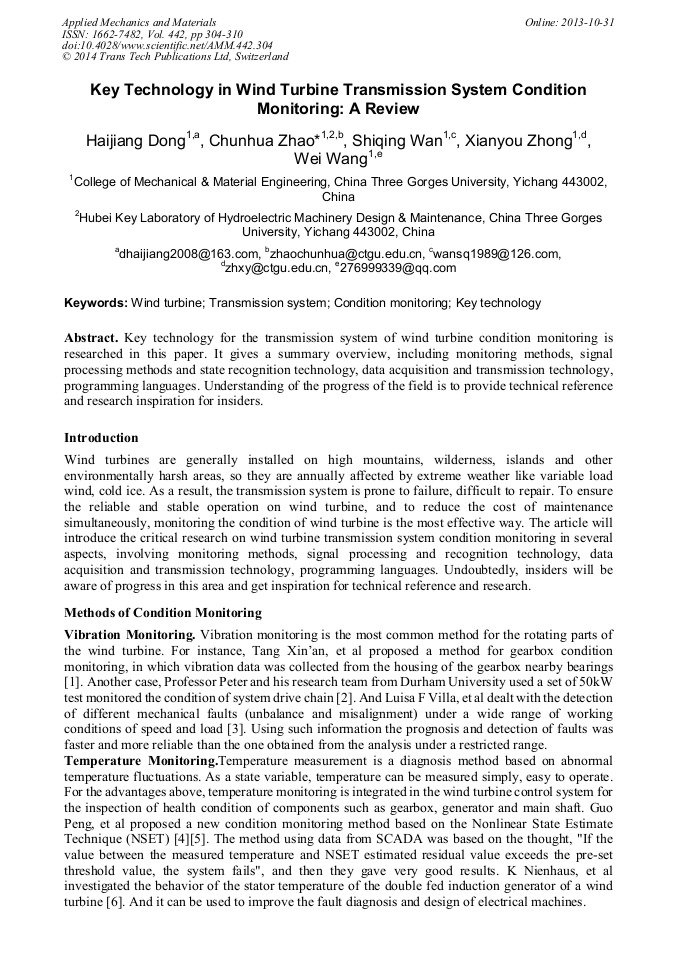

Key Technology in Wind Turbine Transmission System Condition Monitoring: A Review

Abstract:

Key technology for the transmission system of wind turbine condition monitoring is researched in this paper. It gives a summary overview, including monitoring methods, signal processing methods and state recognition technology, data acquisition and transmission technology, programming languages. Understanding of the progress of the field is to provide technical reference and research inspiration for insiders.

• Periodical: Applied Mechanics and Materials (Volume 442)
• Pages: 304-310
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.442.304
• Online since: October 2013
• Authors: Hai Jiang Dong, Chun Hua Zhao*, Shi Qing Wan, Xian You Zhong, Wei Wang
• Keywords: Condition Monitoring, Key Technology, Transmission System, Wind Turbine (WT)
