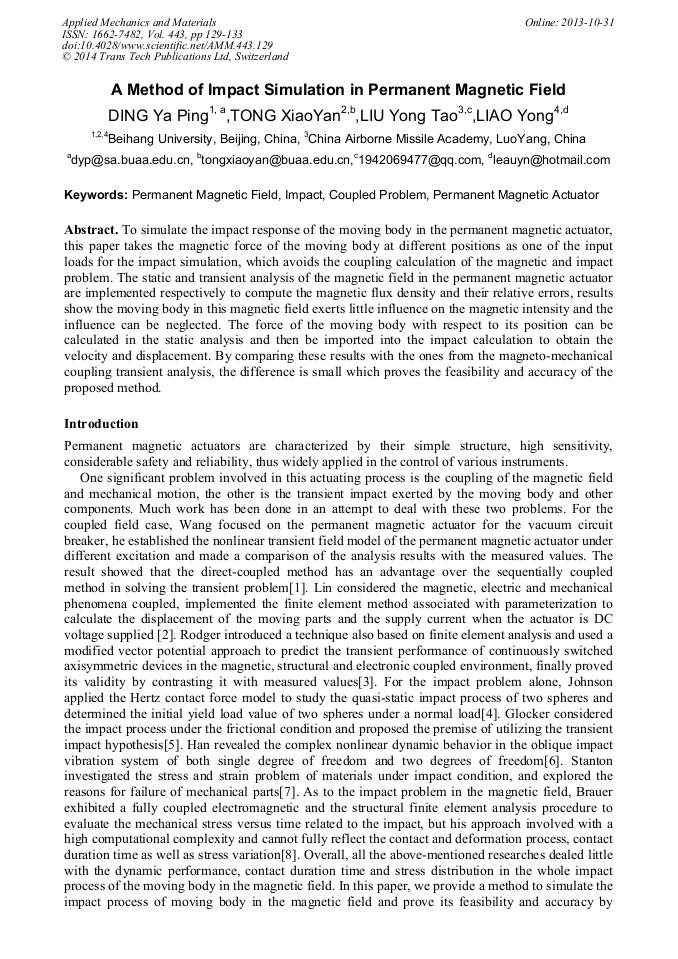

A Method of Impact Simulation in Permanent Magnetic Field

Abstract:

To simulate the impact response of the moving body in the permanent magnetic actuator, this paper takes the magnetic force of the moving body at different positions as one of the input loads for the impact simulation, which avoids the coupling calculation of the magnetic and impact problem. The static and transient analysis of the magnetic field in the permanent magnetic actuator are implemented respectively to compute the magnetic flux density and their relative errors, results show the moving body in this magnetic field exerts little influence on the magnetic intensity and the influence can be neglected. The force of the moving body with respect to its position can be calculated in the static analysis and then be imported into the impact calculation to obtain the velocity and displacement. By comparing these results with the ones from the magneto-mechanical coupling transient analysis, the difference is small which proves the feasibility and accuracy of the proposed method.

• Periodical: Applied Mechanics and Materials (Volume 443)
• Pages: 129-133
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.443.129
• Online since: October 2013
• Authors: Ya Ping Ding, Xiao Yan Tong, Yong Tao Liu, Yong Liao
• Keywords: Coupled Problem, Impact, Permanent Magnetic Actuator, Permanent Magnetic Field

References

[1] H.F. Wang, in: The Study of Nonlinear Transient Magnetic Field Coupling with Mechanical Movement. [Master thesis], Shenyang University of Technology, (2002).

[2] P.S. Sangha, D. Rodger, in: Design and Analysis of Voltage Fed Axisymmetric Actuators[J]. IEEE Trans. on Mag, Vol. 30(1994), No. 5, Sep, PP3240-3243.

DOI: 10.1109/20.312628

[3] X. Lin, H.J. Gao and J.Y. Xu, in: Calculation and Analysis of the Coupled Problem in the Permanent Magnetic Actuator for Vacuum Circuit Breaker, IEEE CEFC2000, Milwaukee, USA.

[4] Johnson K L, Contact Mechanics (2th Edition). New York: Cambridge University Press (1985).

[5] C. Glocker, F. Pfeiffer, in: Multiple Impacts with Friction in Rigid Multibody Systems. Nonlinear Dynamic, 1995, 7; 471-497.

DOI: 10.1007/bf00121109

[6] W. Han, in: Dynamics Of Oblique-Impact Vibrating Systems , [PhD thesis], Nanjing: Nanjing University of Aeronautics and Astronautics(2003).

[7] T.E. Stanton, in: The Resistance of Materials to Impact. Proc. Inst. Mech. Engrs. 1908: 889.

[8] R. Brauer, J.J. Ruehl, in: Dynamic Stress in Magnetic Actuator Computed by Coupled Structural and Electromagnetic Finite Elements. IEEE Trans. on Mag, Vol. 32(1996), No. 3, PP. 1046-1049.

DOI: 10.1109/20.497420
