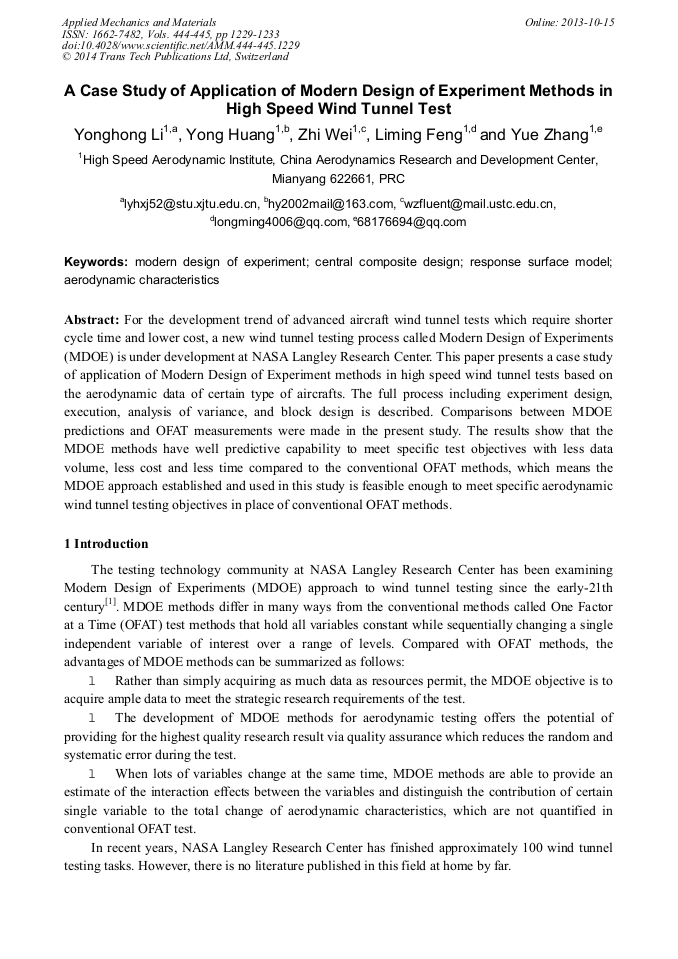

A Case Study of Application of Modern Design of Experiment Methods in High Speed Wind Tunnel Test

Abstract:

For the development trend of advanced aircraft wind tunnel tests which require shorter cycle time and lower cost, a new wind tunnel testing process called Modern Design of Experiments (MDOE) is under development at NASA Langley Research Center. This paper presents a case study of application of Modern Design of Experiment methods in high speed wind tunnel tests based on the aerodynamic data of certain type of aircrafts. The full process including experiment design, execution, analysis of variance, and block design is described. Comparisons between MDOE predictions and OFAT measurements were made in the present study. The results show that the MDOE methods have well predictive capability to meet specific test objectives with less data volume, less cost and less time compared to the conventional OFAT methods, which means the MDOE approach established and used in this study is feasible enough to meet specific aerodynamic wind tunnel testing objectives in place of conventional OFAT methods.

• Periodical: Applied Mechanics and Materials (Volumes 444-445)
• Pages: 1229-1233
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.444-445.1229
• Online since: October 2013
• Authors: Yong Hong Li, Yong Huang, Zhi Wei, Li Ming Feng, Yue Zhang
• Keywords: Aerodynamic Characteristics, Central Composite Design, Modern Design of Experiment, Response Surface Model

References

[1] Richard DeLoach. The Modern Design of Experiments for Configuration Aerodynamics: A Case Study. AIAA 2006-923, (2006).

DOI: 10.2514/6.2006-923

[2] DeLoach, R. Improved Quality in Aerospace Testing Through the Modern Design of Experiments [R]. AIAA 2000-0825, (2000).

DOI: 10.2514/6.2000-825

[3] DeLoach, R. Analysis of Variance in the Modern Design of Experiments. AIAA 2010-1111, (2010).

[4] Richard DeLoach, John R. Micol. Comparison of Resource Requirements for a Wind Tunnel Test Designed with Conventional vs. Modern Design of Experiments Methods. AIAA 2011-1260, (2011).

DOI: 10.2514/6.2011-1260

[5] E A Morelli, R DeLoach. Response Surface Modeling Using Multivariate Orthogonal Functions. AlAA 2001-0168.

DOI: 10.2514/6.2001-168

[6] Dowgwillo, R M, DeLoach, R. Using Modern Design of Experiments to Create a Surface Pressure Database From a Low Speed Wind Tunnel Test. AIAA 2004-2200, (2004).

DOI: 10.2514/6.2004-2200

[7] DeLoach, R. Applications of Modern Experiment Design to Wind Tunnel Testing at NASA Langley Research Center. AIAA 98-0713, (1998).

DOI: 10.2514/6.1998-713

[8] Morelli, E A, DeLoach, R. Ground Testing Results Using Modern Experiment Design and Multivariate Orthogonal Functions. AIAA 2003-0653, (2003).

DOI: 10.2514/6.2002-2795
