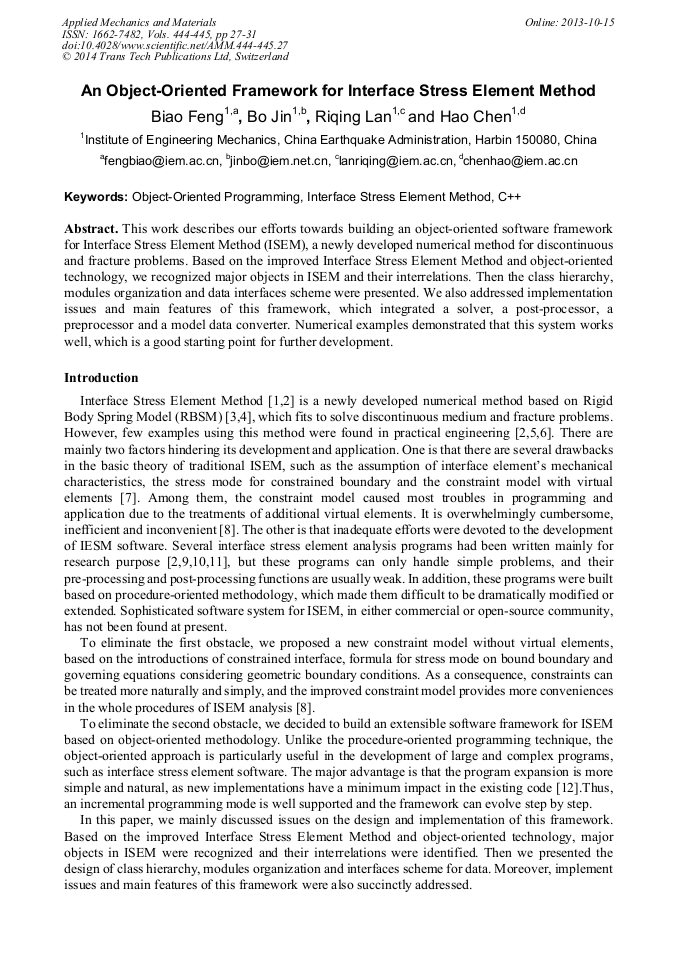

An Object-Oriented Framework for Interface Stress Element Method

Abstract:

This work describes our efforts towards building an object-oriented software framework for Interface Stress Element Method (ISEM), a newly developed numerical method for discontinuous and fracture problems. Based on the improved Interface Stress Element Method and object-oriented technology, we recognized major objects in ISEM and their interrelations. Then the class hierarchy, modules organization and data interfaces scheme were presented. We also addressed implementation issues and main features of this framework, which integrated a solver, a post-processor, a preprocessor and a model data converter. Numerical examples demonstrated that this system works well, which is a good starting point for further development.

• Periodical: Applied Mechanics and Materials (Volumes 444-445)
• Pages: 27-31
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.444-445.27
• Online since: October 2013
• Authors: Biao Feng, Bo Jin, Ri Qing Lan, Hao Chen
• Keywords: C++, Interface Stress Element Method, Object-Oriented Programming

References

[1] J. S. Zhuo, N. Zhao, Piecewise Rigid Body-Interface Spring Method for Problems of Discontinuous Medium, Journal of Hohai University, 21 (1993), 34-43. (in Chinese).

[2] J. S. Zhuo, Q. Zhang, Interface Stress Element Method for Discontinuous Medium Problems, Science Press, Beijing, 2000. (in Chinese).

[3] T. Kawai, New Discrete Models and their Application to Seismic Response Analysis of Structures, Nuclear Engineering and Design, 48 (1978) 207-229.

DOI: 10.1016/0029-5493(78)90217-0

[4] T. Kawai, Some Considerations on the Finite Element Method, International Journal for Numerical Methods In Engineering, 16 (1980) 81-120.

[5] Y. F. Wang, Q. Zhang, Analysis of Anti-Sliding Stability in Deep Foundation of Xiangjiaba Gravity Dam based on Interface Element Method, Rock and Soil Mechanics, 30 (2009) 2691-2696. (in Chinese).

[6] Q. Zhang, J. S. Zhuo, Interface Element Method and Criterion for Stability Analysis of High Slopes in Three Gorges Shiplock, Chinese Journal of Rock Mechanics and Engineering, 19 (2000) 285-288. (in Chinese).

[7] B. Feng, Object-Oriented Interface Stress Element Method and Its Coupling with FEM in Time Domain Analysis, Institute of Engineering Mechanics, China Earthquake Administration, Harbin, 2012. (in Chinese).

[8] B. Feng, H. Liu, R. Q. Lan, A Constraint Model for Interface Stress Element Method without Virtual Elements, Advanced Materials Research, 671-674 (2013) 1574-1577.

DOI: 10.4028/www.scientific.net/amr.671-674.1574

[9] X. Chen, Fracture and Gradient Enhanced Damage Model in Interface Stress Element Method and Its Application in Engineering, Tsinghua University, 2004. (in Chinese).

[10] P. Z. Gao, Rigid Body-Interface Element Method in Dynamic Plasticity, Engineering Mechanics, 13(1996) 135-144. (in Chinese).

[11] Z. L. Xu, Interface Element Method in Analysis of Structures and Its Application, Hohai University, 1999. (in Chinese).

[12] L. F. Martha, E. P. Junior, An Object-Oriented Framework for Finite Element Programming, Fifth World Congress on Computational Mechanics, July 7–12, 2002, Vienna, Austria.

[13] Y. J. Liu, H. N. Li, G. Lin, A Simple and Effective Method for Plotting Colored Stress Patterns, Computer Engineering, 28 (2002) 124-125. (in Chinese).

[14] B. Feng, A Method of Converting Finite Element Mesh Data into the Format for Interface Stress Element Model, Procedia Engineering, 31(2012) 1179-1184.

DOI: 10.1016/j.proeng.2012.01.1160
