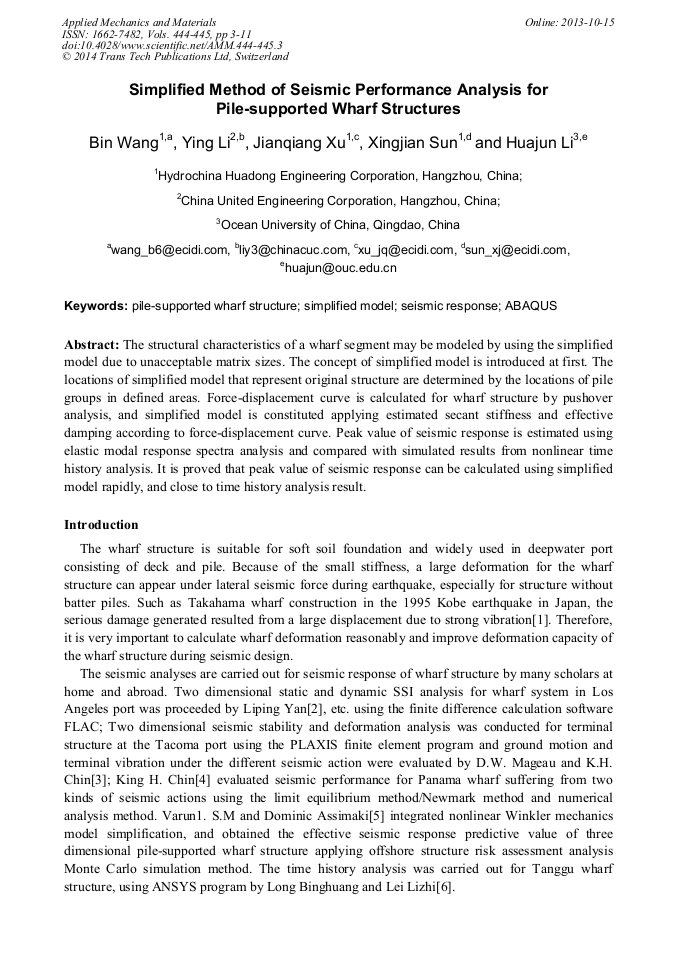

Simplified Method of Seismic Performance Analysis for Pile-Supported Wharf Structures

Abstract:

The structural characteristics of a wharf segment may be modeled by using the simplified model due to unacceptable matrix sizes. The concept of simplified model is introduced at first. The locations of simplified model that represent original structure are determined by the locations of pile groups in defined areas. Force-displacement curve is calculated for wharf structure by pushover analysis, and simplified model is constituted applying estimated secant stiffness and effective damping according to force-displacement curve. Peak value of seismic response is estimated using elastic modal response spectra analysis and compared with simulated results from nonlinear time history analysis. It is proved that peak value of seismic response can be calculated using simplified model rapidly, and close to time history analysis result.

• Periodical: Applied Mechanics and Materials (Volumes 444-445)
• Pages: 3-11
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.444-445.3
• Online since: October 2013
• Authors: Bin Wang, Ying Li, Jian Qiang Xu, Xing Jian Sun, Hua Jun Li
• Keywords: ABAQUS, Pile-Supported Wharf Structure, Seismic Response, Simplified Model

References

[1] Huishan Liu, A Discussion on Seismic Design of Pile Foundation. Earthquake Resistant Engineering, 1999(1) 37-43.

[2] Liping Yan, Kandiah Arulomli, Max Weismair, Ray Aliviado and Ignatius Po Lam, Seismic Soil-Structure Interaction Analyses of An Underwater Bulkhead and Wharf System. Proceedings of the Geotechnical Engineering for Transportation Projects, ASCE, 2004(40) 547~555.

DOI: 10.1061/40744(154)40

[3] D.W. Mageau and K.H. Chin. Finite Element Modeling of New Marine Terminal at the Port of Tacoma. Proceedings of the Eleventh Triennial International Conference, ASCE, 2007(116)1-10.

DOI: 10.1061/40834(238)116

[4] King H. Chin, Daniel W. Mageau and Scott T. Peterson, Comparison of Panama Wharf Performance Using Numerical Analysis and Limit Equilibrium Methods. Proceedings of the Geotechnical Earthquake Engineering and Soil Dynamics IV Congress, ASCE, 2008(199)1-9.

DOI: 10.1061/40975(318)199

[5] Varun S. M. and Dominic Assimaki. Integrating Soil-Structure Interaction Analyses of Pile-Supported Wharfs in Seismic Risk Management of Port Systems. Proceedings of the Geotechnical Earthquake Engineering and Soil Dynamics Ⅳ Congress, ASCE, 2008(202)1-10.

DOI: 10.1061/40975(318)202

[6] Binghuang Long, Lizhi Lei. Seismic Analysis and Design Suggestions for Batter-Piles in Pile-Wharfs[J]. China Harbour Engineering, 2007 (1)7-10.

[7] International Navigation Association. Seismic Design Guidelines for Port Structures. Working Group No. 34 of the Marine Navigation Commission. the Netherlands: Balkema Publishers, (2001).

[8] California Building Code. Chapter 31F, Marine Oil Terminals, Supplement Dated January 31, (2005).

[9] POLB. Port of Long Beach Wharf Design Criteria(Version 1. 0), Long Beach: The Port of Long Beach., (2007).

DOI: 10.1061/40834(238)9
