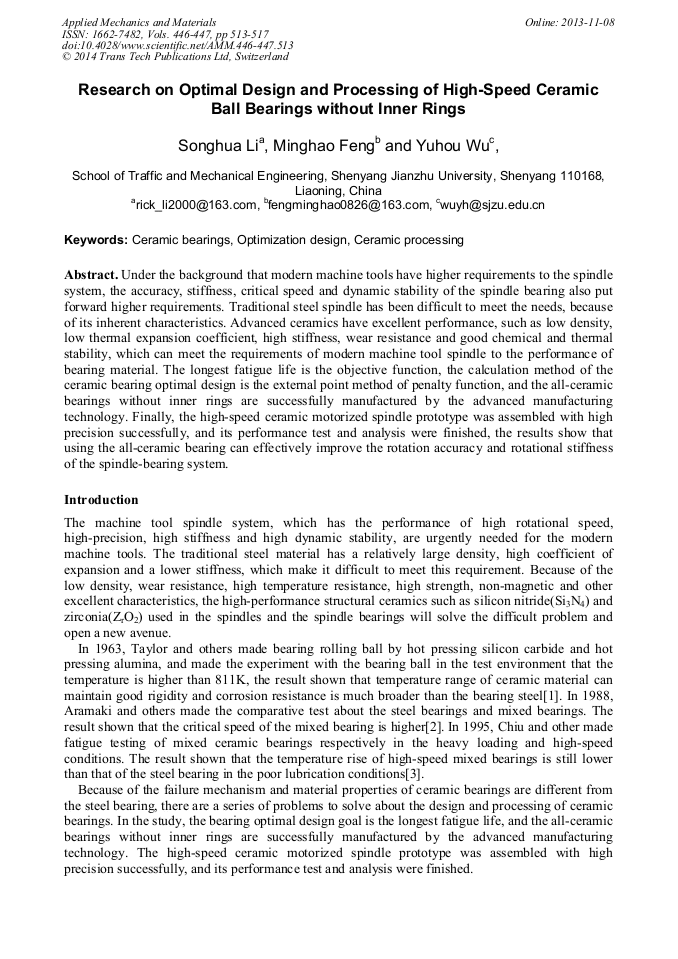

Research on Optimal Design and Processing of High-Speed Ceramic Ball Bearings without Inner Rings

Abstract:

Under the background that modern machine tools have higher requirements to the spindle system, the accuracy, stiffness, critical speed and dynamic stability of the spindle bearing also put forward higher requirements. Traditional steel spindle has been difficult to meet the needs, because of its inherent characteristics. Advanced ceramics have excellent performance, such as low density, low thermal expansion coefficient, high stiffness, wear resistance and good chemical and thermal stability, which can meet the requirements of modern machine tool spindle to the performance of bearing material. The longest fatigue life is the objective function, the calculation method of the ceramic bearing optimal design is the external point method of penalty function, and the all-ceramic bearings without inner rings are successfully manufactured by the advanced manufacturing technology. Finally, the high-speed ceramic motorized spindle prototype was assembled with high precision successfully, and its performance test and analysis were finished, the results show that using the all-ceramic bearing can effectively improve the rotation accuracy and rotational stiffness of the spindle-bearing system.

• Periodical: Applied Mechanics and Materials (Volumes 446-447)
• Pages: 513-517
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.446-447.513
• Online since: November 2013
• Authors: Song Hua Li, Ming Hao Feng, Yu Hou Wu
• Keywords: Ceramic Bearings, Ceramic Processing, Optimization Design

References

[1] Taylor E. M., Sibley L. B. and Lawrenee J.C., Development of a Ceramic Rolling Contact Bearing for High Temperature Use. Wear, 1963, 6(3): 226~240.

DOI: 10.1016/0043-1648(63)90076-0

[2] Aramaki H., Shoda Y., et al. The Performances of Ball Bearings With Silieon Nitride Ceramie Balls in High Speed Spindles for Machine Tools. ASMA Journal of Tuibology, 1988, 110(10): 695~698.

DOI: 10.1115/1.3261715

[3] Chiu Y. P., Pearson P. K., et al. Fatigue Life and Performance Testing of Hybrid Ceramic Ball Bearings. Presented at the 50th Annual Meeting, in Chicago. L L Linois, 1995: 14~19.

[4] Yuhou Wu, Songhua Li. 2009. An full ceramic ball bearing without inner ring of hot isostatic pressing silicon nitride and its manufacturing method: China, ZL200610134118. 9. In Chinese.

[5] Yuhou Wu, 2003. hot pressed silicon nitride ceramic ball bearings. Shenyang: Liaoning Science & Technology Press. In Chinese.

[6] Yuhou Wu, He Wang, and Songhua Li. 2007. Research on the inner surface grinding experimental of high-speed spindle with ceramic bearing ring. Modern Manufacturing Engineering, (10): 14 ~ 16. In Chinese.

[7] Li S. H., Wu Y. H. 2008. High-Efficiency and Precision Grinding Technology of HIPSN All-Ceramic Bearing Race. Key Engineering Materials, 359~360: 108~112.

DOI: 10.4028/www.scientific.net/kem.359-360.108

[8] Li S. H., Wu Y. H. and Zhang L X. 2010. Development and experimental investigation of a high speed grinding spindle equipped with fully-ceramic bearings and ceramic shaft. Advanced Materials Research. 156~157: 1366~1371.

DOI: 10.4028/www.scientific.net/amr.156-157.1366
