RTDS-Based Real-Time Simulation Model of Fiber Optical Current Transformer

Abstract:

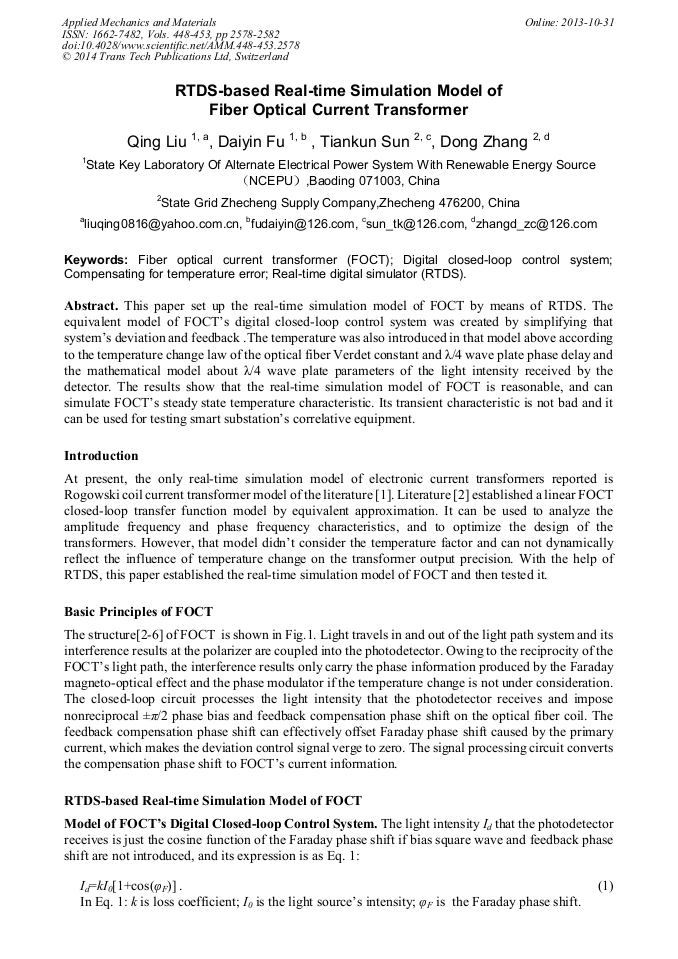

This paper set up the real-time simulation model of FOCT by means of RTDS. The equivalent model of FOCTs digital closed-loop control system was created by simplifying that systems deviation and feedback .The temperature was also introduced in that model above according to the temperature change law of the optical fiber Verdet constant and λ/4 wave plate phase delay and the mathematical model about λ/4 wave plate parameters of the light intensity received by the detector. The results show that the real-time simulation model of FOCT is reasonable, and can simulate FOCTs steady state temperature characteristic. Its transient characteristic is not bad and it can be used for testing smart substations correlative equipment.
