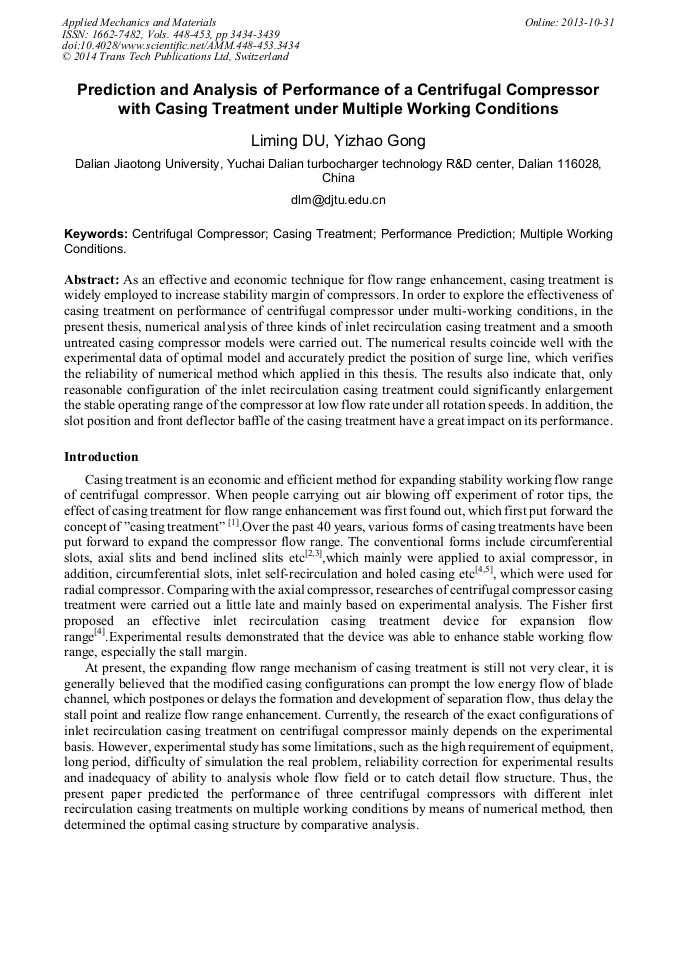

Prediction and Analysis of Performance of a Centrifugal Compressor with Casing Treatment under Multiple Working Conditions

Abstract:

As an effective and economic technique for flow range enhancement, casing treatment is widely employed to increase stability margin of compressors. In order to explore the effectiveness of casing treatment on performance of centrifugal compressor under multi-working conditions, in the present thesis, numerical analysis of three kinds of inlet recirculation casing treatment and a smooth untreated casing compressor models were carried out. The numerical results coincide well with the experimental data of optimal model and accurately predict the position of surge line, which verifies the reliability of numerical method which applied in this thesis. The results also indicate that, only reasonable configuration of the inlet recirculation casing treatment could significantly enlargement the stable operating range of the compressor at low flow rate under all rotation speeds. In addition, the slot position and front deflector baffle of the casing treatment have a great impact on its performance.

• Periodical: Applied Mechanics and Materials (Volumes 448-453)
• Pages: 3434-3439
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.448-453.3434
• Online since: October 2013
• Authors: Li Ming Du*, Yi Zhao Gong
• Keywords: Casing Treatment, Centrifugal Compressor, Multiple Working Conditions, Performance Prediction

References

[1] Chu Wuli, Liu Qianzhi, Hu Chunbo. The aviation blade machine principle [M]. Xi'an: Northwestern Polytechnical University press, 2009. 8. (in Chinese).

[2] SHABBIR A, ADAMCZYK J J. Flow mechanism for stall margin improvement due to circumferential casing grooves on axial compressors[J]. ASME Journal of Turbomachinery, 2005, 127(4): 708-717.

DOI: 10.1115/1.2008970

[3] ZHU J Q, CHU W L. The effects of bend skewed groove casing treatment on performance and flow field near end wall of an axial compressor[R]．AIAA Paper，2005-0809.

DOI: 10.2514/6.2005-809

[4] Fisher，F．B．，1988，Application of Map Width Enhancement Devices to Turbocharger Compressor Stages[R]．SAE Paper No．880794.

DOI: 10.4271/880794

[5] XU Wei, WANG Tong, GU Chuangang. Influence of the hole number on the effect of holed casing treatment[J]. Chinese Journal of Mechanical Engineering, 2011, 47(18): 121-129. (in Chinese).

DOI: 10.3901/jme.2011.18.121

[6] RIBIB. Flow in radial turbo machines[J]．Von Karman institute for fluid dynamics lecture series，1996(1)：26-29.

[7] Tang Diyi. Turbine unsteady flow[M]. Beijing: National Defense Industry Press, 1992. (in Chinese).

[8] Zhu Zhifu. Study of vehicle turbocharger centrifugal compressor surge mechanism and forecasting[D]. Beijing: Beijing Institute of Technology, 2008. (in Chinese).
