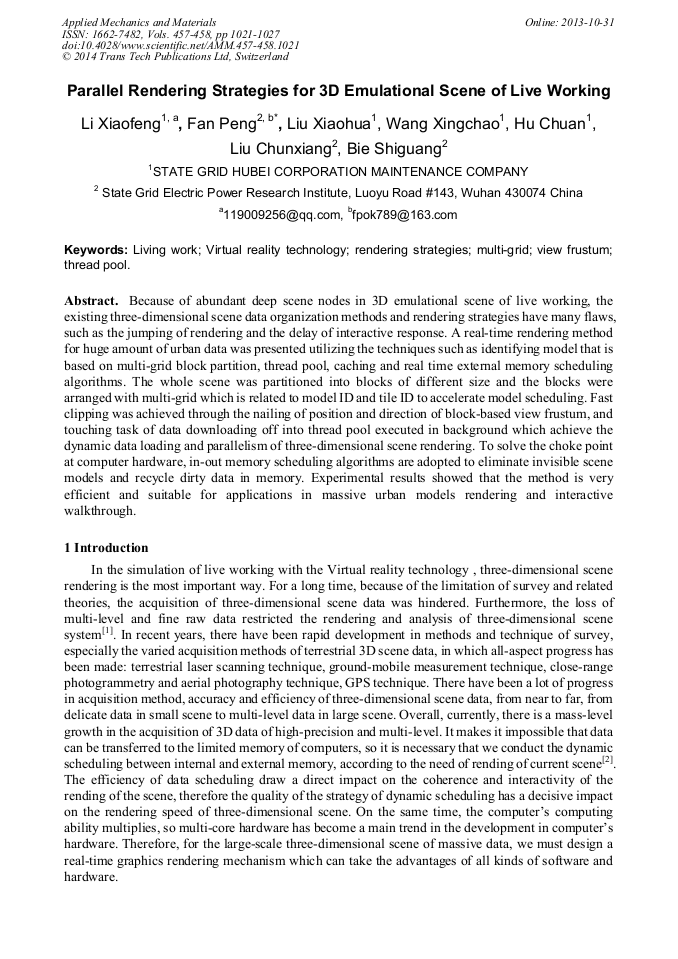

Parallel Rendering Strategies for 3D Emulational Scene of Live Working

Abstract:

Because of abundant deep scene nodes in 3D emulational scene of live working, the existing three-dimensional scene data organization methods and rendering strategies have many flaws, such as the jumping of rendering and the delay of interactive response. A real-time rendering method for huge amount of urban data was presented utilizing the techniques such as identifying model that is based on multi-grid block partition, thread pool, caching and real time external memory scheduling algorithms. The whole scene was partitioned into blocks of different size and the blocks were arranged with multi-grid which is related to model ID and tile ID to accelerate model scheduling. Fast clipping was achieved through the nailing of position and direction of block-based view frustum, and touching task of data downloading off into thread pool executed in background which achieve the dynamic data loading and parallelism of three-dimensional scene rendering. To solve the choke point at computer hardware, in-out memory scheduling algorithms are adopted to eliminate invisible scene models and recycle dirty data in memory. Experimental results showed that the method is very efficient and suitable for applications in massive urban models rendering and interactive walkthrough.

• Periodical: Applied Mechanics and Materials (Volumes 457-458)
• Pages: 1021-1027
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.457-458.1021
• Online since: October 2013
• Authors: Xiao Feng Li, Peng Fan*, Xiao Hua Liu, Xing Chao Wang, Chuan Hu, Chun Xiang Liu, Shi Guang Bie
• Keywords: Living Work, Multi-Grid, Rendering Strategies, Thread Pool, View Frustum, Virtual Reality Technology

References

[1] You-chuan Wan, Liang-ming Liu, Shu Ning, Development of Photogra mmetry and Remote Sensing in China, Geospatial Information[J], 2004, 4, 1-4.

[2] Shan Tang, Kun Zhen, Xiu-guo Liu, Three-Dimensional Real-Time Response Parallel Visualization Using Multi-Core Hardware[C], 2009 First International Conference on Information Science and Engineering, icise, 2009, 425-428.

DOI: 10.1109/icise.2009.1312

[3] The Official Guide to Learning OpenGL, OpenGL Programming Guide[M], Fourth Edition. (2005).

[4] Fletcher Dunn, lan Parberry, 3D Math Primer for Graphics and Game Development[M], p.358, (2002).

[5] Di Wei, The research and application of the data retrieving and organization of the large scale scene in 3D-Gis[D], Dalian University of Technology, (2003).

[6] Shi Song-xin, Ye Xiu-zi, Zhang San-yuan, Zhang Yin, Partition based real-time rendering method for large-area terrain data[J], Journal of ZheJiang University(Engineering Science), 2007, 12.
