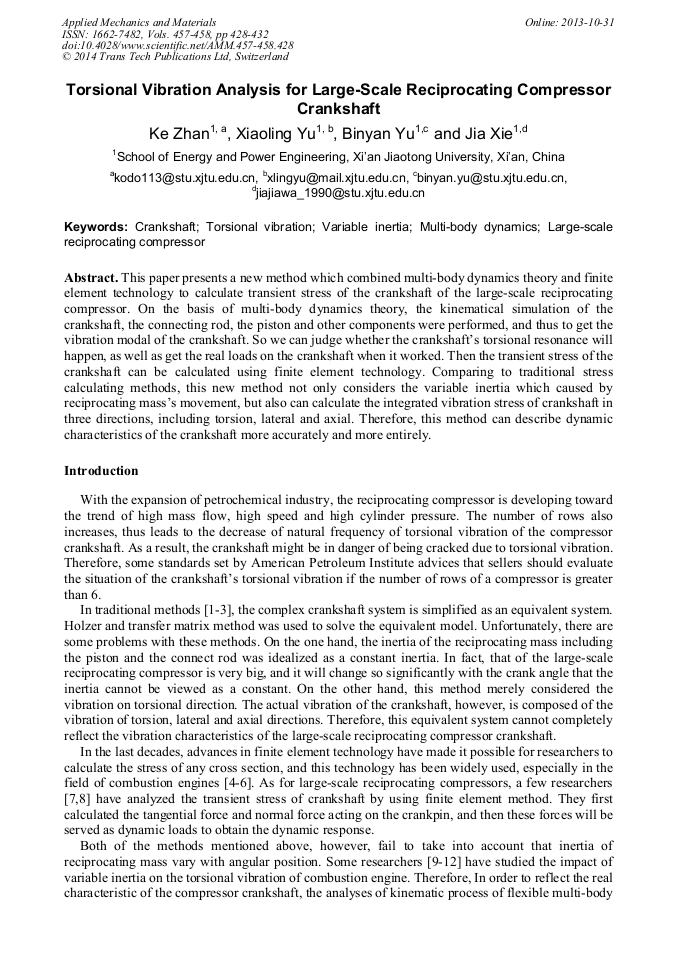

Torsional Vibration Analysis for Large-Scale Reciprocating Compressor Crankshaft

Abstract:

This paper presents a new method which combined multi-body dynamics theory and finite element technology to calculate transient stress of the crankshaft of the large-scale reciprocating compressor. On the basis of multi-body dynamics theory, the kinematical simulation of the crankshaft, the connecting rod, the piston and other components were performed, and thus to get the vibration modal of the crankshaft. So we can judge whether the crankshafts torsional resonance will happen, as well as get the real loads on the crankshaft when it worked. Then the transient stress of the crankshaft can be calculated using finite element technology. Comparing to traditional stress calculating methods, this new method not only considers the variable inertia which caused by reciprocating masss movement, but also can calculate the integrated vibration stress of crankshaft in three directions, including torsion, lateral and axial. Therefore, this method can describe dynamic characteristics of the crankshaft more accurately and more entirely.

• Periodical: Applied Mechanics and Materials (Volumes 457-458)
• Pages: 428-432
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.457-458.428
• Online since: October 2013
• Authors: Ke Zhan, Xiao Ling Yu, Bin Yan Yu, Jia Xie
• Keywords: Crankshaft, Large-Scale Reciprocating Compressor, Multi-Body Dynamics, Torsional Vibration, Variable Inertia

References

[1] E. J. Nestorides, A Handbook on Torsional Vibration, Cambridge University Press, Cambridge, (1958).

[2] J. P. Den Hartog and J. P. Li, Forced torsional vibrations with damping: an extension of Holzer's method, Journal of Applied Mechanics, Transactions of ASME. 68 (1946) 276-280.

DOI: 10.1115/1.4009586

[3] T. W. Spaetgens and B. C. Vancouver, Holzer method for forced-damped torsional vibrations, Journal of Applied Mechanics. 17 (1950) 59-63.

DOI: 10.1115/1.4010057

[4] Zissimos P. Mourelatos, A crankshaft system model for structural dynamic analysis of internal combustion engines, Computers & Structures. 79. 20 (2001) 2009-(2027).

DOI: 10.1016/s0045-7949(01)00119-5

[5] H. Okamura, A. Shinno, T. Yamanaka, A. Suzuki and K. Sogabe, Simple modeling and analysis for crankshaft three-dimensional vibrations. I: Background and application to free vibrations, Journal of vibration and acoustics. 117. 1 (1995) 70-79.

DOI: 10.1115/1.2873869

[6] T. Morita and H. Okamura, Simple modeling and analysis for crankshaft three-dimensional vibrations. II: Application to an operating engine crankshaft. Journal of vibration and acoustics. 117. 1 (1995) 80-86.

DOI: 10.1115/1.2873870

[7] Shijie Wang, Zengjin Xu and Yanli Huang, Cause analysis of crankshaft crack & Crank bearing scuff of large-scale reciprocating compressor, Quality, Reliability, Risk, Maintenance, and Safety Engineering (ICQR2MSE), 2011 International Conference on. IEEE. (2011).

DOI: 10.1109/icqr2mse.2011.5976606

[8] Xiaoling Yu, Binyan Yu and Quanke Feng, The Crankshaft Vibration Analysis of Large-type Piston Compressor-Modal Analysis, Compressor Technology. 2 (2011) 004.

[9] P. Draminsky, An introduction to secondary resonance, Shipbuilding and Marine Engineering International. 88 (1965) 22-26.

[10] P. Metallidis and S. Natsiavas, Linear and nonlinear dynamics of reciprocating engines, International Journal of Non-Linear Mechanics. 38. 5 (2003) 723-738.

DOI: 10.1016/s0020-7462(01)00129-9

[11] K. E. Hafner, The influence of the reciprocating masses of crank mechanisms on torsional vibrations of crankshafts, Proceedings of the 11th International Congress on Combustion Engineering. Barcelona Spain: Combustion and Flame. Vol. 1. (1975).

[12] E. Brusa, C. Delprete and G. Genta, Torsional vibration of crankshafts: effects of non-constant moments of inertia, Journal of sound and vibration. 205. 2 (1997) 135-150.

DOI: 10.1006/jsvi.1997.0964

[13] Chengwu Liu, Dynamic analysis and noise prediction of large-scale compressor, Nanjing University of Science and Technology. (2006).
