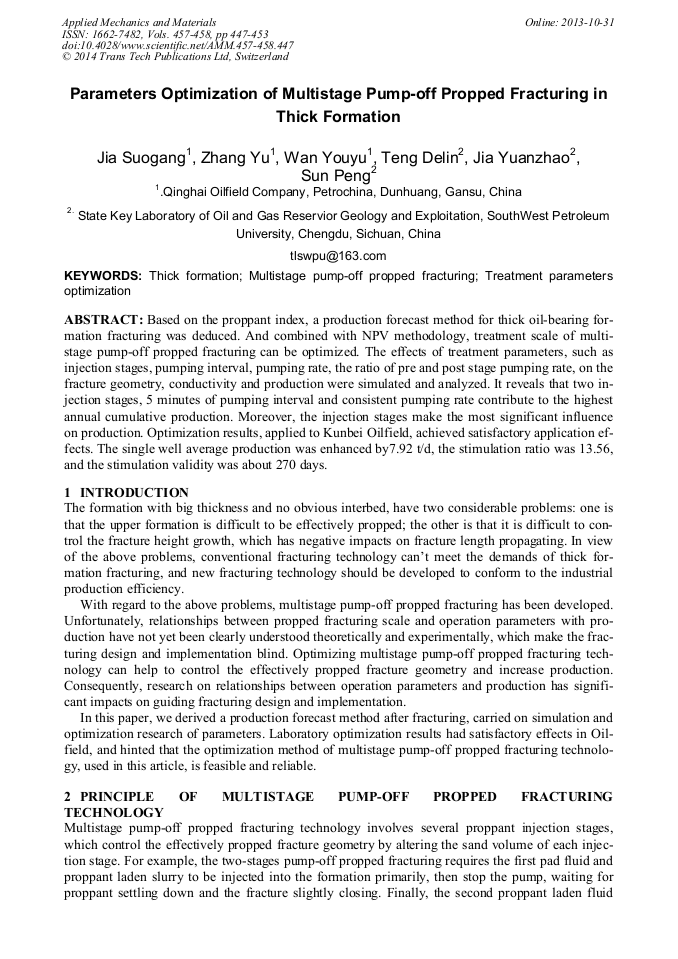

Parameters Optimization of Multistage Pump-Off Propped Fracturing in Thick Formation

Abstract:

Based on the proppant index, a production forecast method for thick oil-bearing formation fracturing was deduced. And combined with NPV methodology, treatment scale of multistage pump-off propped fracturing can be optimized. The effects of treatment parameters, such as injection stages, pumping interval, pumping rate, the ratio of pre and post stage pumping rate, on the fracture geometry, conductivity and production were simulated and analyzed. It reveals that two injection stages, 5 minutes of pumping interval and consistent pumping rate contribute to the highest annual cumulative production. Moreover, the injection stages make the most significant influence on production. Optimization results, applied to Kunbei Oilfield, achieved satisfactory application effects. The single well average production was enhanced by7.92 t/d, the stimulation ratio was 13.56, and the stimulation validity was about 270 days.

• Periodical: Applied Mechanics and Materials (Volumes 457-458)
• Pages: 447-453
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.457-458.447
• Online since: October 2013
• Authors: Suo Gang Jia, Yu Zhang, You Yu Wan, De Lin Teng, Yuan Zhao Jia, Peng Sun
• Keywords: Multistage Pump-Off Propped Fracturing, Thick Formation, Treatment Parameters Optimization

References

[1] Romero D J, Valko P P, Economides M J. 2003. Optimization of the productivity index and the fracture geometry of a stimulated well with fracture face and choke skins. SPE 81908.

DOI: 10.2118/73758-ms

[2] Matteo Marongiu-Porcu, Michael J. Economidesb, Stephen A. Holditch. 2013. Economic and physical optimization of hydraulic fracturing. Journal of Natural Gas Science and Engineering 14: 91–107.

DOI: 10.1016/j.jngse.2013.06.001

[3] J.A. Daal, & M.J. Economides. 2006. Optimization of Hydraulically Fractured Well in Irregularly Shaped Drainage Areas. SPE 98047.

DOI: 10.2118/98047-ms

[4] Feng Gui, Khalil Rahman, Daniel Moos, et al. 2013. Optimizing Hydraulic Fracturing Treatment Integrating Geomechanical Analysis and Reservoir Simulation for a Fractured Tight Gas Reservoir, Tarim Basin, China. Earth and Planetary Sciences 52: 1015-1038.

DOI: 10.5772/56384

[5] Reynolds & Harris Allen. 2012. Hydraulic fracture optimization using hydraulic fracture and reservoir modeling in the Piceance Basin. Colorado [DB/OL]. http: /hdl. handle. net/2152/ETD-UT-2012-08-6377, 2012-08.

[6] Chen Jianhong, Qiao Huawei, et al. 2010. Multistage propped fracturing in Jingan oil field application. Journal of chongqing university of science and technology 12(4): 13-16.

[7] Liu Guojiang, Liu Fenggang, et al. 2010. Multistage propped fracturing technology field application and evaluation. Liaoning chemical industry 33(9): 23-26.

[8] Lu Xiufeng, Wang Xingzun, Ji Hongbo, et al. 2004. Secondary sand fracturing technology research and application. Oil drilling & production technology 26(4): 57-61.

[9] Alexey Moiseenkov, Andreas Briner, Moira Urquhart PDO, et al. 2013. Six Steps to successfully Design and Execute Hydraulic Fracturing in the Khulud Exploration Area, North Oman. SPE 163963-MS.

DOI: 10.2118/163963-ms

[10] Chen Xusheng, Chen Chunming, Wang Xiuchen. 2002. Oil field development fracturing operation parameters optimization. Journal of Harbin university of science and technology 7(3): 93-95.

[11] Li Yongming, Li Lianming, Guo Jianchun, Zhao Jinzhou. 2010. Theoretical model and application of secondary sand fracturing. Xinjiang petroleum geology 31(2).

[12] Modeland N, Buller D, Chong K. K. 2011. Stimulation's influence on production in the Haynesville Shale: a play wide examination of fracture-treatment variables that show effect on production. In proceedings of Canadian Unconventional Resources Conference CSUG/SPE November (2011).

DOI: 10.2118/148940-ms

[13] Liu Chunlin, Wang Rui. 2011. Fracture extension model research and application of Multiple propped fracturing. Special Oil & Gas Reservoirs 17(2).
