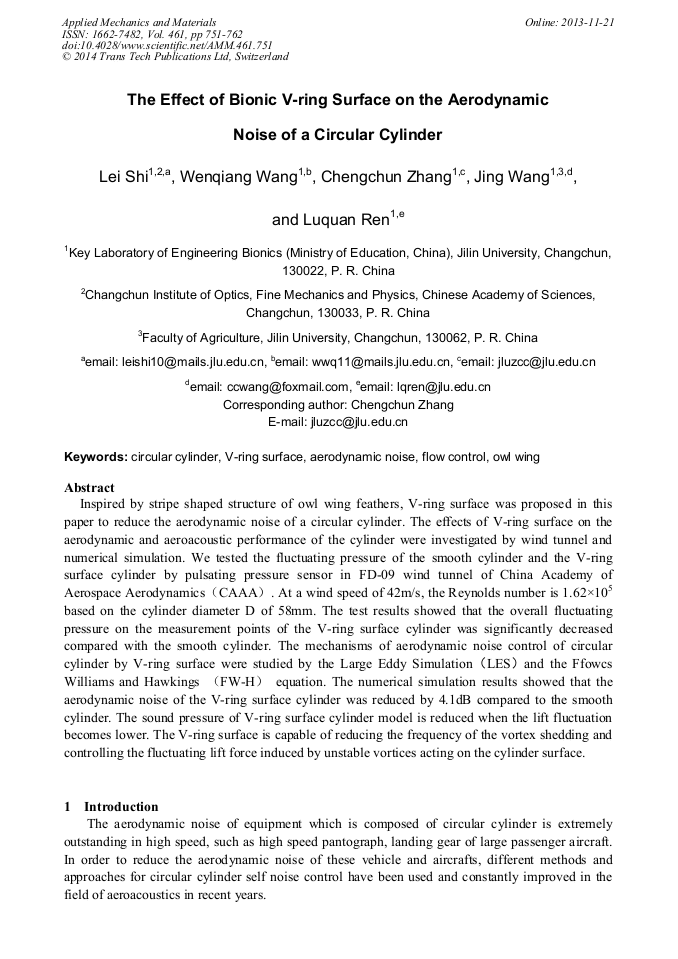

The Effect of Bionic V-Ring Surface on the Aerodynamic Noise of a Circular Cylinder

Abstract:

Inspired by stripe shaped structure of owl wing feathers, V-ring surface was proposed in this paper to reduce the aerodynamic noise of a circular cylinder. The effects of V-ring surface on the aerodynamic and aeroacoustic performance of the cylinder were investigated by wind tunnel and numerical simulation. We tested the fluctuating pressure of the smooth cylinder and the V-ring surface cylinder by pulsating pressure sensor in FD-09 wind tunnel of China Academy of Aerospace Aerodynamics（CAAA）. At a wind speed of 42m/s, the Reynolds number is 1.62×10⁵ based on the cylinder diameter D of 58mm. The test results showed that the overall fluctuating pressure on the measurement points of the V-ring surface cylinder was significantly decreased compared with the smooth cylinder. The mechanisms of aerodynamic noise control of circular cylinder by V-ring surface were studied by the Large Eddy Simulation（LES）and the Ffowcs Williams and Hawkings （FW-H） equation. The numerical simulation results showed that the aerodynamic noise of the V-ring surface cylinder was reduced by 4.1dB compared to the smooth cylinder. The sound pressure of V-ring surface cylinder model is reduced when the lift fluctuation becomes lower. The V-ring surface is capable of reducing the frequency of the vortex shedding and controlling the fluctuating lift force induced by unstable vortices acting on the cylinder surface.

• Periodical: Applied Mechanics and Materials (Volume 461)
• Pages: 751-762
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.461.751
• Online since: November 2013
• Authors: Lei Shi, Wen Qiang Wang, Cheng Chun Zhang, Jing Wang, Lu Quan Ren
• Keywords: Aerodynamic Noise, Circular Cylinder, Flow Control, Owl Wing, V-Ring Surface

References

[1] Curle N. The influence of solid boundaries upon aerodynamic sound. Proceedings of the Royal Society of London. Series A, Mathematical and Physical Sciences, 1955, 231, 505–514.

DOI: 10.1098/rspa.1955.0191

[2] Powell A. Theory of vortex sound. The Journal of the Acoustical Society of America, 1964, 36, 177–195.

[3] Lim H C, Lee S J. Flow control of circular cylinders with longitudinal grooved surfaces[J]. AIAA journal, 2002, 40（10）: 2027-(2036).

DOI: 10.2514/2.1535

[4] Cattafesta L, Williams D, Rowley C, et al. Review of active control of flow-induced cavity resonance[J]. AIAA paper, 2003, 3567: (2003).

DOI: 10.2514/6.2003-3567

[5] Thomas F O, Kozlov A, Corke T C. Plasma actuators for cylinder flow control and noise reduction[J]. AIAA journal, 2008, 46（8）: 1921-(1931).

DOI: 10.2514/1.27821

[6] Huang X, Zhang X. Plasma actuators for noise control[J]. International Journal of Aeroacoustics, 2010, 9（4）: 679-704.

[7] Mitsuru I, Takehisa T. Perforated pantograph horn aeolian tone suppression mechanism. Quarterly Report of RTRI, 2004, 45, 169–174.

DOI: 10.2219/rtriqr.45.169

[8] Lei Shi, Chengchun Zhang, Jing Wang, Luquan Ren. Numerical Simulation of the Effect of Bionic Serrated Structures on the Aerodynamic Noise of a Circular Cylinder[J]. Journal of Bionic Engineering. 2012, 9（1）: 91-98.

DOI: 10.1016/s1672-6529(11)60101-7

[9] King W F, Pfizenmaier E. An experimental study of sound generated by flows around cylinders of different cross-section[J]. Journal of Sound and Vibration, 2009, 328（3）: 318-337.

DOI: 10.1016/j.jsv.2009.07.034

[10] Masaharu N, Tomonobu G. Aerodynamic noise reduction by pile fabrics. Fluid Dynamics Research, 2010, 42, 015003.

DOI: 10.1088/0169-5983/42/1/015003

[11] Takehisa S, Mitsuru I, Takehisa T, Takeshi K, Haruo Y. Reduction of aerodynamic noise from high-speed pantograph using porous materials. Journal of Environment and Engineering, 2010, 5, 469–484.

DOI: 10.1299/jee.5.469

[12] Takeshi S, Takehisa T, Mitsuru I and Norio A. Application of porous material to reduce aerodynamic sound from bluff bodies. Fluid Dynamics Research, 2010, 42, 015004.

DOI: 10.1088/0169-5983/42/1/015004

[13] SUEKI T, IKEDA M, TAKAISHI T. Aerodynamic noise reduction using porous materials and their application to high-speed pantographs[J]. Quarterly Report of RTRI, 2009, 50（1）: 26-31.

DOI: 10.2219/rtriqr.50.26

[14] Smagorinsky J. General circulation experiments with the primitive equations. I. The basic experiment. Monthly Weather Review, 1963, 91, 99–164.

DOI: 10.1175/1520-0493(1963)091<0099:gcewtp>2.3.co;2

[15] Ffowcs-Williams J E, Hawkings D L. Sound generation by turbulence and surfaces in arbitrary motion. Proceedings of the Royal Society A, London, UK, 1969, 264, 321–342.

[16] Rhie C M, Chow W L. Numerical study of the turbulent flow past an airfoil with trailing edge separation. American Institute of Aeronautics and Astronautics (AIAA) Journal, 1983, 21, 1525–1532.

DOI: 10.2514/3.8284

[17] Cantwell B, Coles C. An experimental study of entrainment and transport in the turbulent near wake of a circular cylinder. Journal of Fluid Mechanics, 1983, 136, 321–374.

DOI: 10.1017/s0022112083002189

[18] Osamu I, Nozomu H. Sound generation by a two-dimensional circular cylinder in a uniform flow. Journal of Fluid Mechanics, 2002, 471, 285–314.

DOI: 10.1017/s0022112002002124
