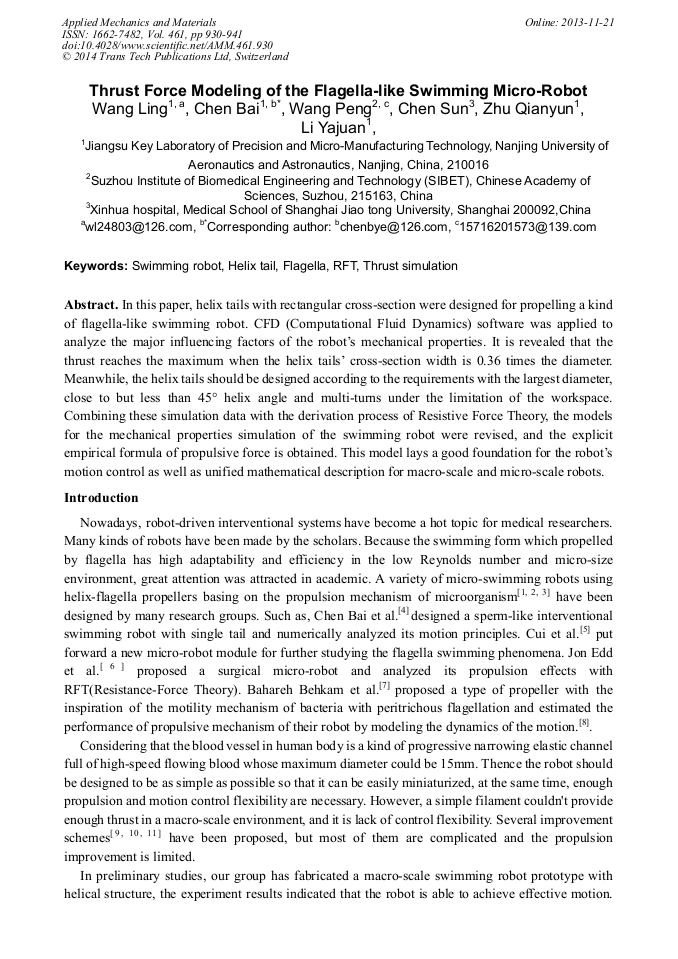

Thrust Force Modeling of the Flagella-Like Swimming Micro-Robot

Abstract:

In this paper, helix tails with rectangular cross-section were designed for propelling a kind of flagella-like swimming robot. CFD (Computational Fluid Dynamics) software was applied to analyze the major influencing factors of the robots mechanical properties. It is revealed that the thrust reaches the maximum when the helix tails cross-section width is 0.36 times the diameter. Meanwhile, the helix tails should be designed according to the requirements with the largest diameter, close to but less than 45° helix angle and multi-turns under the limitation of the workspace. Combining these simulation data with the derivation process of Resistive Force Theory, the models for the mechanical properties simulation of the swimming robot were revised, and the explicit empirical formula of propulsive force is obtained. This model lays a good foundation for the robots motion control as well as unified mathematical description for macro-scale and micro-scale robots.

• Periodical: Applied Mechanics and Materials (Volume 461)
• Pages: 930-941
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.461.930
• Online since: November 2013
• Authors: Ling Wang, Bai Chen, Peng Wang, Sun Chen, Qian Yun Zhu, Ya Juan Li
• Keywords: Flagella, Helix Tail, RFT, Swimming Robot, Thrust Simulation

References

[1] K.K. Christensen-Dalsgaarda, T. Fenchel, Complex Flagellar Motions and Swimming Patterns of the Flagellates Paraphysomonas vestita and Pteridomonas danica, Protist. 155 (2004) 79-87.

DOI: 10.1078/1434461000166

[2] O.S. Pak, S.E. Spagnolie, E. Lauga, Hydrodynamics of the double-wave structure of insect spermatozoa flagella, [2012-02-01], http: /rsif. royalsocietypublishing. org.

DOI: 10.1098/rsif.2011.0841

[3] A. Ghanbari, M. Bahrami, A Novel Swimming Microrobot Based on Artificial Cilia for Biomedical Applications, Journal Of Intelligent & Robotic Systems. 63 (2011) 399-416.

DOI: 10.1007/s10846-010-9516-6

[4] B. Chen, S. Jiang, Y. Liu, P. Yang, S. Chen, Research on the Kinematic Properties of a Sperm-Like Swimming Micro Robot, Journal of Bionic Engineering. 7 (2010) S123-S129.

DOI: 10.1016/s1672-6529(09)60225-0

[5] J. Cui, L. Hang, H. Feng, Progress on swimming mechanism of flagellar bacteria, Microbiology China. 34 (2007) 991-995.

[6] J. Edd, S. Payen, B. Rubinsky, M.L. Stoller, M. Sitti, Biomimetic propulsion for a swimming surgical micro-robot, Proceedings of the 2003 IEEE/RSJ International Conference on Intelligent Robots and Systems, Las Vegas, USA, 2003, 2583-2588.

DOI: 10.1109/iros.2003.1249259

[7] B. Behkam, M.E. Sitti, Coli Inspired Propulsion for Swimming Microrobots, Proceedings of IMECE'04 International Mechanical Engineering Conference and R&D Exposition, Anaheim, USA, 2004, 1037-1041.

DOI: 10.1115/imece2004-59621

[8] A. Taheri, S. Orangi, A novel miniature virus-inspired swimming robot for biomedical applications, Science China Technological Sciences. 53 (2010) 2883-2895.

DOI: 10.1007/s11431-010-4126-x

[9] H. NgocSan, G. NamSeo, Y. HyeonKyu, Development of a propulsion system for a biomimetic thruster, Chinese Science Bulletin. 56 (2011) 432-438.

[10] J. Singleton, E. Diller, T. Andersen, S.E. Regnier, M. Sitti, Micro-Scale Propulsion using Multiple Flexible Artificial Flagella, Proceedings of the 2011 IEEE/RSJ International Conference on Intelligent Robots and Systems, San Francisco, USA, 2011, 1687-1692.

DOI: 10.1109/iros.2011.6095140

[11] F. Z Temel, S. Yesilyurt, Magnetically Actuated Micro Swimming of Bio-inspired Robots in Mini Channels, Proceedings of the 2011 IEEE International Conference on Mechatronics, Istanbul, Turkey, 2011, 342-347.

DOI: 10.1109/icmech.2011.5971307

[12] J. Gray, G.J. Hancock, The Propulsion of Sea-Urchin Spermatozoa, Journal Of Experimental Biology. (1955) 802-814.

DOI: 10.1242/jeb.32.4.802

[13] E. Lauga, W.R. DiLuzio, G.M. Whitesides, H.A. Stone, Swimming in Circles: Motion of Bacteria near Solid Boundaries, Biophysical Journal. 90 (2006) 400-412.

DOI: 10.1529/biophysj.105.069401

[14] B. Behkam, M. Sitti, Design Methodology for Biomimetic Propulsion of Miniature Swimming Robots, Journal of Dynamic Systems, Measurement, and Control. 128 (2006) 36-43.

DOI: 10.1115/1.2171439

[15] G.J. Hancock, The Self-Propulsion of Microscopic Organisms through Liquids, Proceedings of the Royal Society. A (1953) 96-121.
