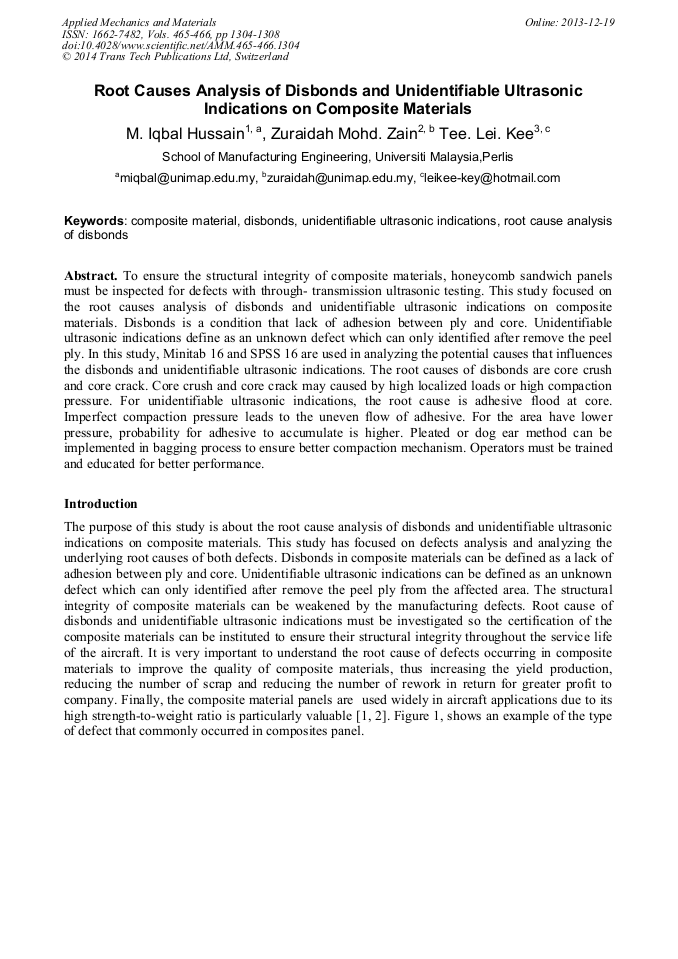

Root Causes Analysis of Disbonds and Unidentifiable Ultrasonic Indications on Composite Materials

Abstract:

To ensure the structural integrity of composite materials, honeycomb sandwich panels must be inspected for defects with through-transmission ultrasonic testing. This study focused on the root causes analysis of disbonds and unidentifiable ultrasonic indications on composite materials. Disbonds is a condition that lack of adhesion between ply and core. Unidentifiable ultrasonic indications define as an unknown defect which can only identified after remove the peel ply. In this study, Minitab 16 and SPSS 16 are used in analyzing the potential causes that influences the disbonds and unidentifiable ultrasonic indications. The root causes of disbonds are core crush and core crack. Core crush and core crack may caused by high localized loads or high compaction pressure. For unidentifiable ultrasonic indications, the root cause is adhesive flood at core. Imperfect compaction pressure leads to the uneven flow of adhesive. For the area have lower pressure, probability for adhesive to accumulate is higher. Pleated or dog ear method can be implemented in bagging process to ensure better compaction mechanism. Operators must be trained and educated for better performance.

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 1304-1308
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.1304
• Online since: December 2013
• Authors: M.I. Hussain, Zuraidah Mohd Zain, Tee Lei Kee
• Keywords: Composite Material, Disbonds, Root Cause Analysis of Disbonds, Unidentifiable Ultrasonic Indications

References

[1] T. Southward, D.P.W. Horrigan, G.D. Mallinson, K. Jayaraman. Failure of Sandwich Composite Structure Containing Face-sheet, Core Disbonds- An Experimental Study. 5th Australasian Congress on Applied Mechanics, ACAM 2007. Brisbane, Australia. pp.1-6.

DOI: 10.1080/14484846.2008.11464567

[2] T.G. Gutowski. Advanced Composite Manufacturing. 1st Edition. John Wiley & Son, Inc. USA, (1997).

[3] H. Dow, S. Pecolit, Sandwich Panels in Vehicle Construction: Composite, Production, Assembly and Use. 1st Edition. SV corporate media GmbH. Germany.

[4] G. LaPlante, A. E. Marble, B. MacMillan, Pearl Lee-Sullivan and Bruce G. Colpitts. Detection of water ingress in composite sandwich structure: a magnetic resonance approach. Volume 38. Issue 6. Bruce J. Balcom. NDT&E international. Canada (2005).

DOI: 10.1016/j.ndteint.2005.01.006

[5] R.A. Smith. Composite Defects and Their Detection. Materials Science and Engineering. 3 (1997) 10-14.
