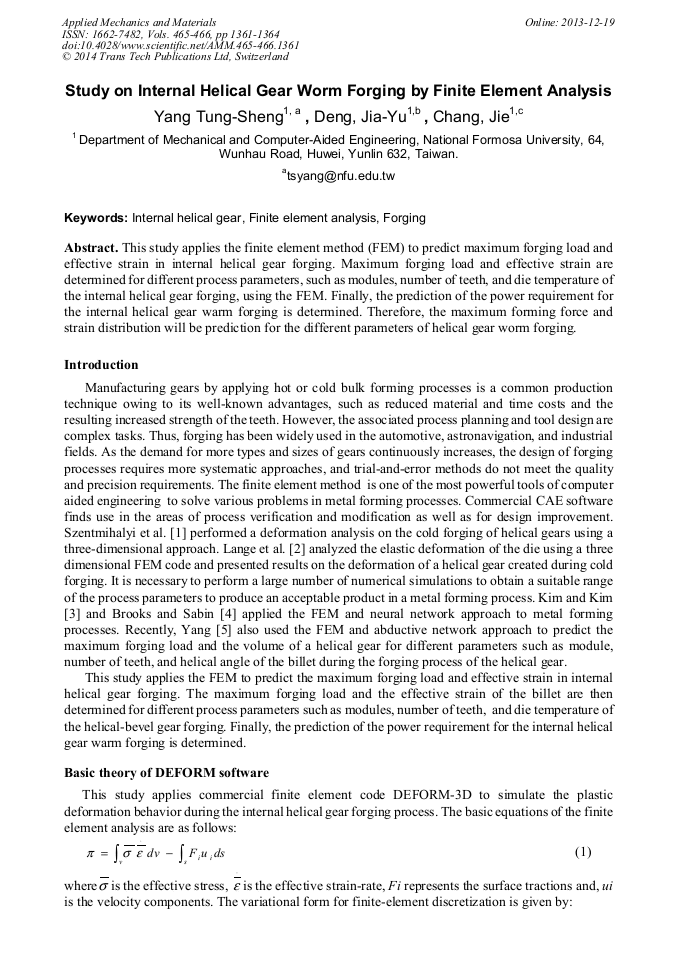

Study on Internal Helical Gear Worm Forging by Finite Element Analysis

Abstract:

This study applies the finite element method (FEM) to predict maximum forging load and effective strain in internal helical gear forging. Maximum forging load and effective strain are determined for different process parameters, such as modules, number of teeth, and die temperature of the internal helical gear forging, using the FEM. Finally, the prediction of the power requirement for the internal helical gear warm forging is determined. Therefore, the maximum forming force and strain distribution will be prediction for the different parameters of helical gear worm forging.

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 1361-1364
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.1361
• Online since: December 2013
• Authors: Tung Sheng Yang, Jia Yu Deng, Jie Chang
• Keywords: Finite Element Analysis (FEA), Forging, Internal Helical Gear
