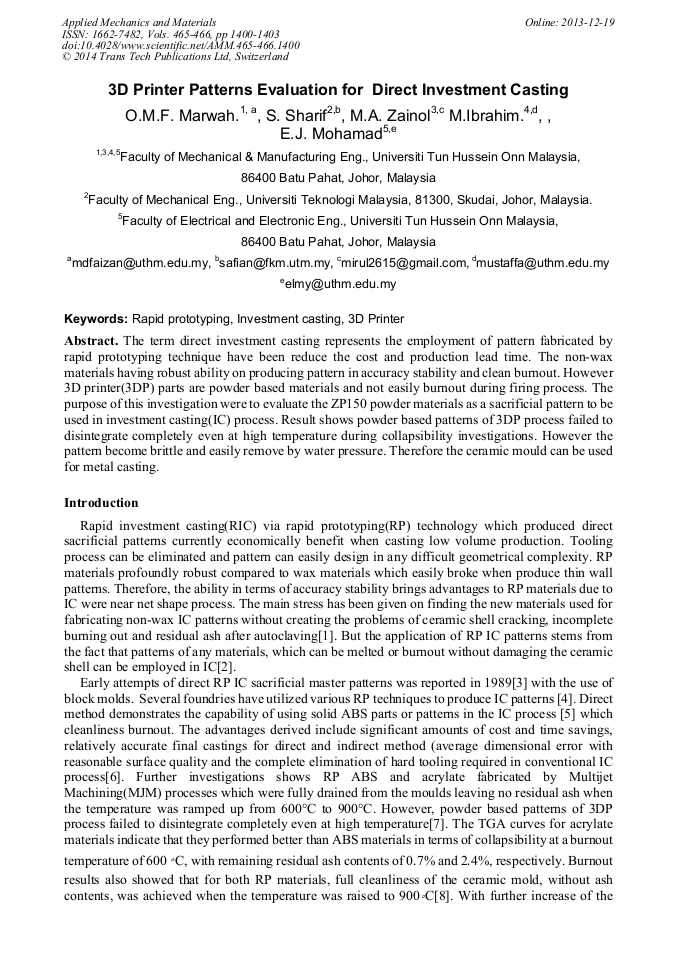

3D Printer Patterns Evaluation for Direct Investment Casting

Abstract:

The term direct investment casting represents the employment of pattern fabricated by rapid prototyping technique have been reduce the cost and production lead time. The non-wax materials having robust ability on producing pattern in accuracy stability and clean burnout. However 3D printer (3DP) parts are powder based materials and not easily burnout during firing process. The purpose of this investigation were to evaluate the ZP150 powder materials as a sacrificial pattern to be used in investment casting (IC) process. Result shows powder based patterns of 3DP process failed to disintegrate completely even at high temperature during collapsibility investigations. However the pattern become brittle and easily remove by water pressure. Therefore the ceramic mould can be used for metal casting.

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 1400-1403
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.1400
• Online since: December 2013
• Authors: O.M.F. Marwah.*, S. Sharif, M.A. Zainol, M. Ibrahim, Elmy Johana Mohamad
• Keywords: 3D Printer, Investment Casting, Rapid Prototyping (RP)

References

[1] Munish Chhabra and Rupinder Singh, Rapid casting solutions: A review, Rapid Prototyping Journal 17 (2011) 328-350.

DOI: 10.1108/13552541111156469

[2] Cheah, C. M., C. K. Chua, et al., Rapid prototyping and tooling techniques: A review of applications for rapid investment casting, International Journal of Advanced Manufacturing Technology 25 (2005) 308-320.

DOI: 10.1007/s00170-003-1840-6

[3] Greenbaum PY, Pearson R, Khan S, Direct investment casting of RP parts: practical commercial experience. Proc 4th International Conference on Rapid Prototyping, Dayton (1993).

[4] Sarkis BE , Rapid prototyping for non-ferrous investment casting , Proc Rapid Prototyping and Manufacturing Conference, Dearbon, MI (1994).

[5] Blake P, Fodran E, Koch M, Menon U, Priedeman B, Sharp S, FDM of ABS patterns for investment casting, Proc Solid Freeform Fabrication Symposium, Austin, TX (1997) 195–202.

[6] Lee CW, Chua CK, Cheah CM, Tan LH, Feng C, , Rapid investment casting: direct & indirect approaches via fused deposition modeling, Int J Adv Manuf Technol 23(1–2) (2004) 3–101.

DOI: 10.1007/s00170-003-1694-y

[7] Omar M.F.M., S. Sharif, M. Ibrahim, H. Hehsan, M.N.M. Busari, Hafsa M.N., Evaluation of direct RP pattern for investment casting, Advanced Materials Research 463-464 (2012) 226-233.

DOI: 10.4028/www.scientific.net/amr.463-464.226

[8] Omar Mohd Faizan Marwah, Safian Sharif, and Mustaffa Ibrahim, Direct Fabrication of IC Sacrificial Patterns via Rapid Prototyping Approaches, Int. J. of Automation Technology 6 (2012) 570-575.

DOI: 10.20965/ijat.2012.p0570
