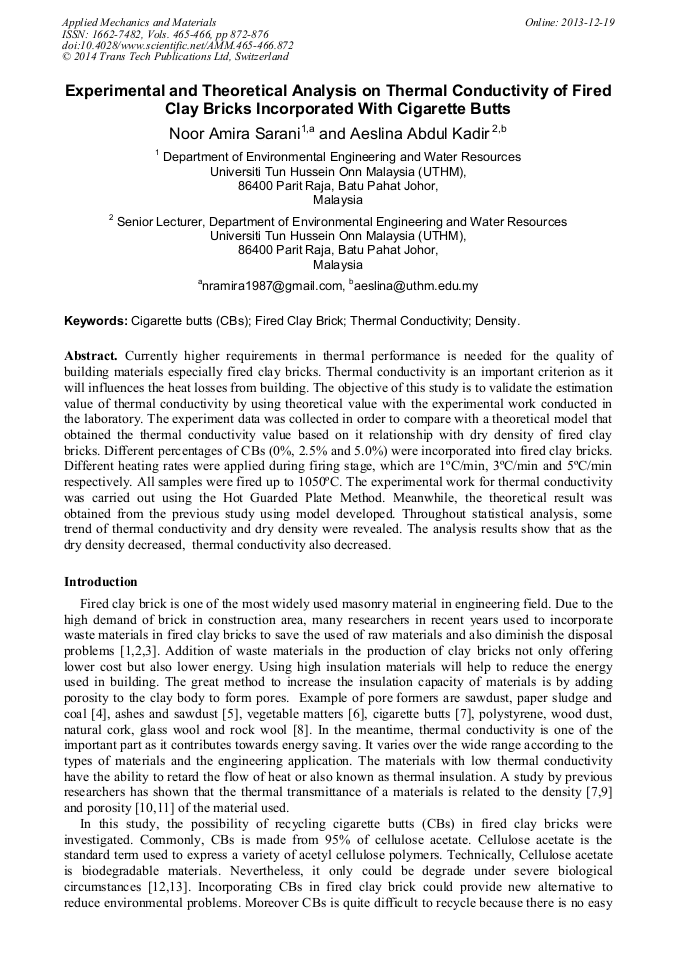

Experimental and Theoretical Analysis on Thermal Conductivity of Fired Clay Bricks Incorporated with Cigarette Butts

Abstract:

Currently higher requirements in thermal performance is needed for the quality of building materials especially fired clay bricks. Thermal conductivity is an important criterion as it will influences the heat losses from building. The objective of this study is to validate the estimation value of thermal conductivity by using theoretical value with the experimental work conducted in the laboratory. The experiment data was collected in order to compare with a theoretical model that obtained the thermal conductivity value based on it relationship with dry density of fired clay bricks. Different percentages of CBs (0%, 2.5% and 5.0%) were incorporated into fired clay bricks. Different heating rates were applied during firing stage, which are 1°C/min, 3°C/min and 5°C/min respectively. All samples were fired up to 1050°C. The experimental work for thermal conductivity was carried out using the Hot Guarded Plate Method. Meanwhile, the theoretical result was obtained from the previous study using model developed. Throughout statistical analysis, some trend of thermal conductivity and dry density were revealed. The analysis results show that as the dry density decreased, thermal conductivity also decreased.

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 872-876
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.872
• Online since: December 2013
• Authors: Noor Amira Sarani*, Aeslina binti Abdul Kadir
• Keywords: Cigarette Butts (CBs), Density, Fired Clay Brick, Thermal Conductivity (TC)

References

[1] M. Safiudin, M. Z. Jumaat, M. A. Salam and R. Hashim, Utilization of Solid Wastes in Construction Materials, International Journal of the Physical Sciences. 5 (13) (2010) 1952-(1963).

[2] S. Dhanapandian and B. Gnanavel, An Investigation on the Effect of Incorporation of Granite and Marble Wastes in the Production of Bricks, ARPN Journal of Engineering and Applied Sciences. 4 (9) (2009) 46-53.

[3] V. Sangrutsamee, P. Srichandr and N. Poolthong, Re-Pulped Waste Paper-Based Composite Building Materials with Low Thermal Conductivity, Journal of Asian Architecture and Building Engineering. 11 (1) (2012) 147-151.

DOI: 10.3130/jaabe.11.147

[4] I. Demir, M. S. Baspinar and M. Orhan, Utilization of kraft pulp production residues in clay brick production, Building and Environment, 40 (2005) 1533-1537.

DOI: 10.1016/j.buildenv.2004.11.021

[5] J. Folaranmi, Effect of Additives on the Thermal Conductivity of Clay, Leonardo Journal of Sciences, 14 (2009) 74-77.

[6] R. Saiah, B. Perrin and L. Rigal, Improvement of Thermal Properties of Fired Clays by Introduction of Vegetable Matter, Journal of Building Physics. 34 (2) (2010) 124-142.

DOI: 10.1177/1744259109360059

[7] A. A. Kadir, A. A. Mohajerani, F. Roddick and J. Buckeridge, Density, Strength, Thermal Conductivity and Leachate Characteristics of Light-Weight Fired Clay Bricks Incorporating Cigarette Butts, International Journal of Environmental Science and Engineering. 2 (4) (2010).

DOI: 10.4028/www.scientific.net/amr.535-537.1723

[8] A. M. Othman, Experimental Investigation of the Effect of Some Insulating Materials on the Compressive Strength, Water Absorption and Thermal Conductivity of Buildings Bricks, Jordan Journal of Mechanical and Industrial Engineering. 4 (4) (2010).

[9] J. E. Oti, J. M. Kinuthia and J. Bai, Design Thermal Values for Unfired Clay Bricks, Materials and Design. 31 (2010) 104-112.

DOI: 10.1016/j.matdes.2009.07.011

[10] P. Matiasovsky and O. Korothalyova, Analysis and Modeling of Effective Thermal Conductivity of Dry Porous Building Materials.

[11] V. Bandihi and L. A. Gomze, Improvement of Insulation Properties of Conventional Bricks Products, Materials Science Forum. 589 (2008) 1-6.

[12] T. Ishigaki, W. Sugano, A. Nakanishi, M. Tateda, M. Ike and M. Fujita, The Degradability of Biodegradable Plastics in Aerobic and Anaerobic Waste Landfill Model Reactor, Chemosphere. 54 (3) (2004) 225-233.

DOI: 10.1016/s0045-6535(03)00750-1

[13] A. Ach, Biodegradable Plastics Based on Cellulose Acetate, Journal Macromol Science Pure. 30 (9) (1993) 733-740.

[14] A. A. Kadir, A. A. Mohajerani, Physico-Mechanical Properties and Leachate Analysis of Clay Fired Brick Incorporated with Cigarette Butts. In: Proceeding of International Conference on Environment. Malaysia: Universiti Sains Malaysia. (2008).

[15] A. A. Kadir, A. A. Mojerani, A Possible Utilization of Cigarette Butts in Light-Weight Fire Clay Bricks, International Journal of Environment Science and Technology. 2 (3) (2010).

[16] British Standard Institution (BS EN ISO 8990) 1996. Thermal Insulation–Determination of Steady-State Thermal Transmission Properties-Calibrated and Guarded Hot Box.

DOI: 10.3403/00916705u
