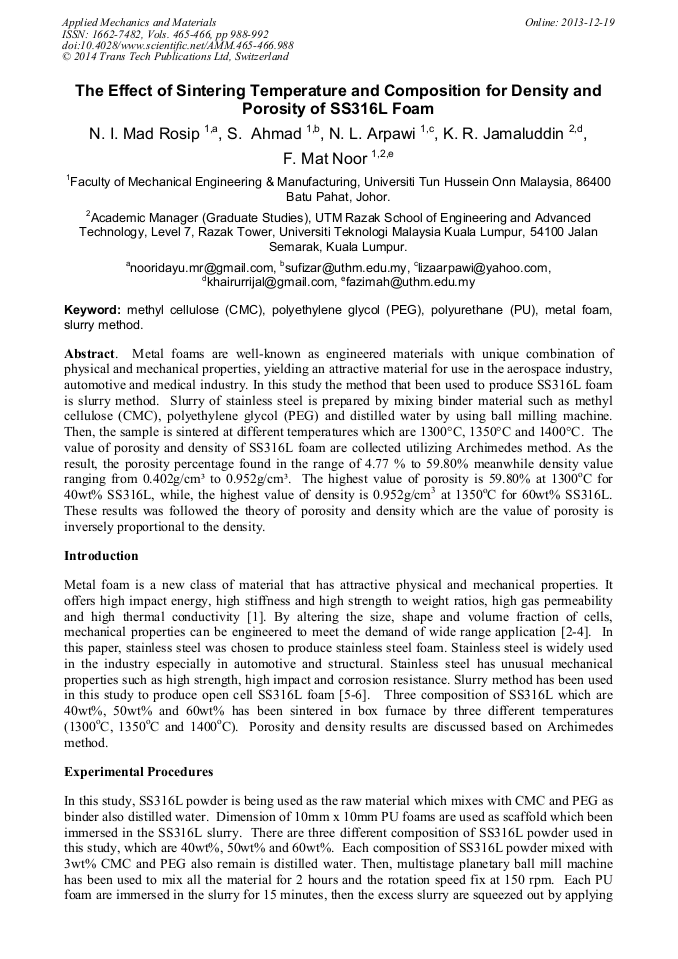

The Effect of Sintering Temperature and Composition for Density and Porosity of SS316L Foam

Abstract:

Metal foams are well-known as engineered materials with unique combination of physical and mechanical properties, yielding an attractive material for use in the aerospace industry, automotive and medical industry. In this study the method that been used to produce SS316L foam is slurry method. Slurry of stainless steel is prepared by mixing binder material such as methyl cellulose (CMC), polyethylene glycol (PEG) and distilled water by using ball milling machine. Then, the sample is sintered at different temperatures which are 1300°C, 1350°C and 1400°C. The value of porosity and density of SS316L foam are collected utilizing Archimedes method. As the result, the porosity percentage found in the range of 4.77 % to 59.80% meanwhile density value ranging from 0.402g/cm3 to 0.952g/cm3. The highest value of porosity is 59.80% at 1300°C for 40wt% SS316L, while, the highest value of density is 0.952g/cm³ at 1350°C for 60wt% SS316L. These results was followed the theory of porosity and density which are the value of porosity is inversely proportional to the density.

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 988-992
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.988
• Online since: December 2013
• Authors: Noor Idayu Mad Rosip, Sufizar Ahmad, Nor Liza Arpawi, Khairur Rijal Jamaluddin, Fazimah Mat Noor
• Keywords: Metal Foam, Methyl Cellulose (CMC), Polyethylene Glycol (PEG), Polyurethane (PU), Slurry Method

References

[1] S. Ahmad, N. Muhammad, A. Muchtar, J. Shari, K. R. Jamaludin, M. H. I. Ibrahim, N. H. Mohamad and I. Murtadhahadi, Producing of Titanium Foam Using Titanium Alloy (Al3Ti) by Slurry Method (2010), Universiti Kebangsaan Malaysia.

[2] H.P. Degischer and B. Kriszt, Handbook of Cellular Metals, Production, Processing and Application (2002), Wiley-VCH/Verlag GmbH, Weinheim, Germany.

[3] L.J. Gibson and M.F. Ashby, Cellular Solids, Structure and Properties (1997), Cambridge University Press, Cambridge, UK.

[4] M.F. Ashby, A. Evans, N. A Fleck, L.J. Gibson, J.W. Hutchinson, H.N. G Wadley, Metal Foams: A Design Gude (2000), Buterworth-Heinemann, Massachusetts.

DOI: 10.1016/b978-075067219-1/50001-5

[5] Toru S. et. al Production of High porosity using Foamed Polysyrene Sphere.

[6] Derek L, Steven l, Jefrey A. R, Andrew M, Donnamarie A, Zach S. and Bryan S, Proceeding MPIF (2008).

[7] S. Davidson and M. Perkin. An investigation of density determination methods for porous materials, small samples and particulates. Measurement 46 (2013), 1766–1770.

DOI: 10.1016/j.measurement.2012.11.030

[8] S. Ahmad, N. Muhamad, A. Muchtar, J. Sahari, M. H. I. Ibrahim, K. R. Jamaludin and N. H. Mohamad Nor (2010).

[9] J.P. Li, S.H. Li, K. de. Groot and P. Layrolle, Preparation and Characterization of Porous Titanium,. Key Engineering Materials (2002), 218-220, 51-54.

DOI: 10.4028/www.scientific.net/kem.218-220.51

[10] S. Ahmad, N. Muhamad, A. Muchtar, J. Sahari, M. H. I. Ibrahim, K. R. Jamaludin, N. H. Mohamad Nor and Murtadhahadi. Pencirian Titanium Berbusa yang Dihasilkan pada Suhu Pensinteran yang Berbeza Menggunakan Kaedah Buburan,. Sains Malaysiana 39(1)(2010).

DOI: 10.17576/jsm-2017-4610-37
